Spare parts > ST S p A > Lawn Tractor > EF 90C/11 5M EF 90C/11 5M (2007) [299951262/EFC] > Body
Back to

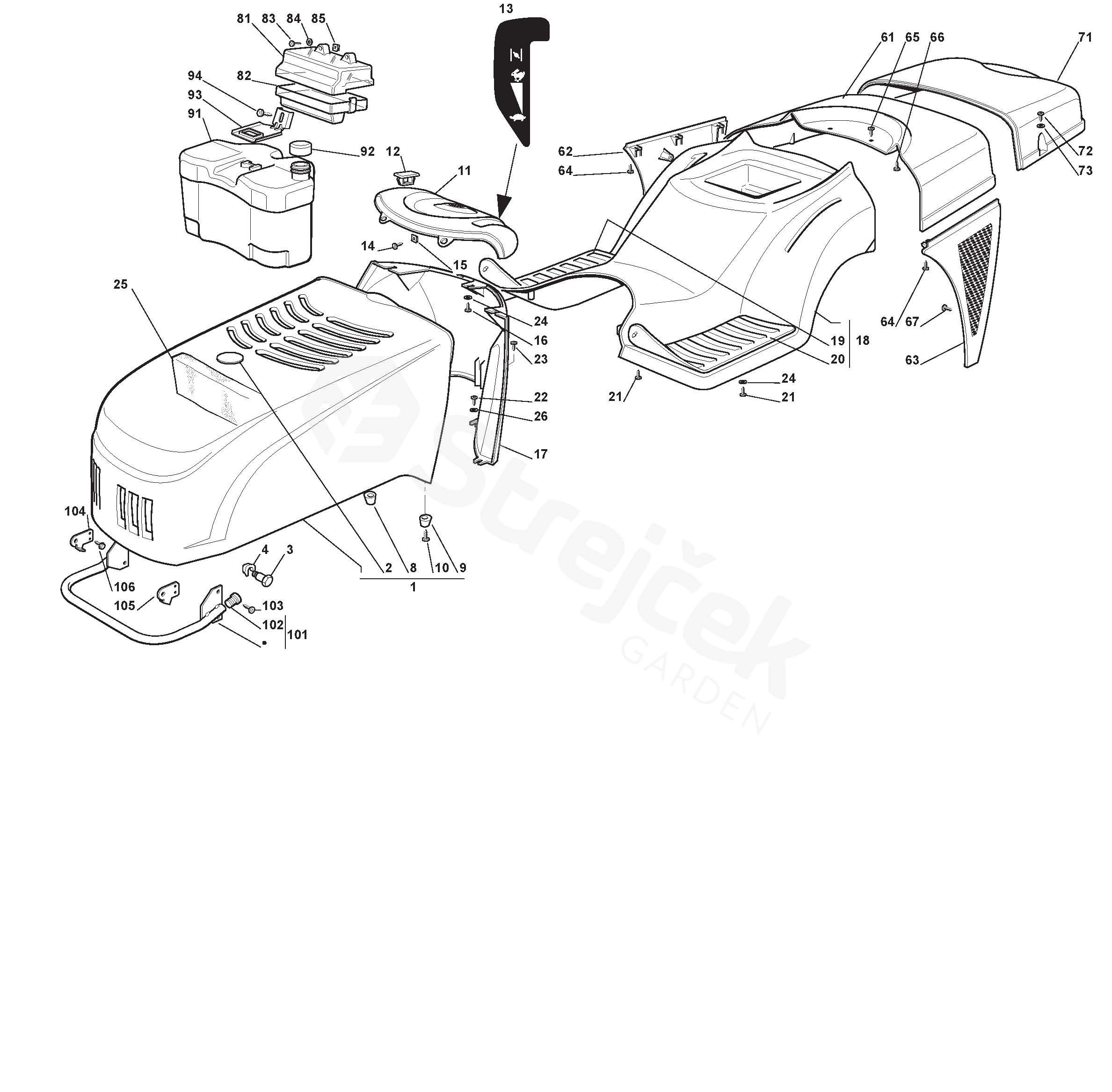

Body
EF 90C/11 5M EF 90C/11 5M (2007) [299951262/EFC]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For EF 90C/11 5M (2007) [299951262/EFC]
3 Stud 125510045/0
4 Plate 112436050/0
8 Right Pin 125580012/0
9 Left Pin 125580013/0
10 Screw 112727356/0
11 Black Dashboard 325120164/1
12 Plate 325547054/1
13 Throttle Label 114357209/1
14 Screw 112735110/0
15 Plate 112437502/0
16 Screw 112735402/0
17 Dashboard Support 325785035/3
19 Right Foortboard Cover Junior 125110264/1
20 Left Footboard Cover 125110263/1
21 Screw 112735410/0
23 Screw 112728680/0
24 Washer 112523040/0
25 Intake Separator 125730005/1
26 Washer 112523050/0
62 Right Guard, Black 125600033/0
63 Left Guard, Black 125600034/0
72 Screw 112729601/0
73 Washer 112521331/0
81 Upper Guard 125600020/0
82 Lower Guard 125600021/1
83 Screw 112728460/0
84 Washer 112521320/0
91 Fuel Tank 125735116/2
92 Cap 125795000/0
93 Support 325774258/0
101 Muffler Protection 382869011/0
102 Push rod 118566110/0
103 Screw 112734995/0
104 Plate 325547089/0
105 Plate 325547091/0
106 Screw 112731580/0
