Spare parts > Husqvarna > ICE AUGERS > ST 324P ST 324P, 96191008200, 2014-06 > AUGER HOUSING & IMPELLER
Back to

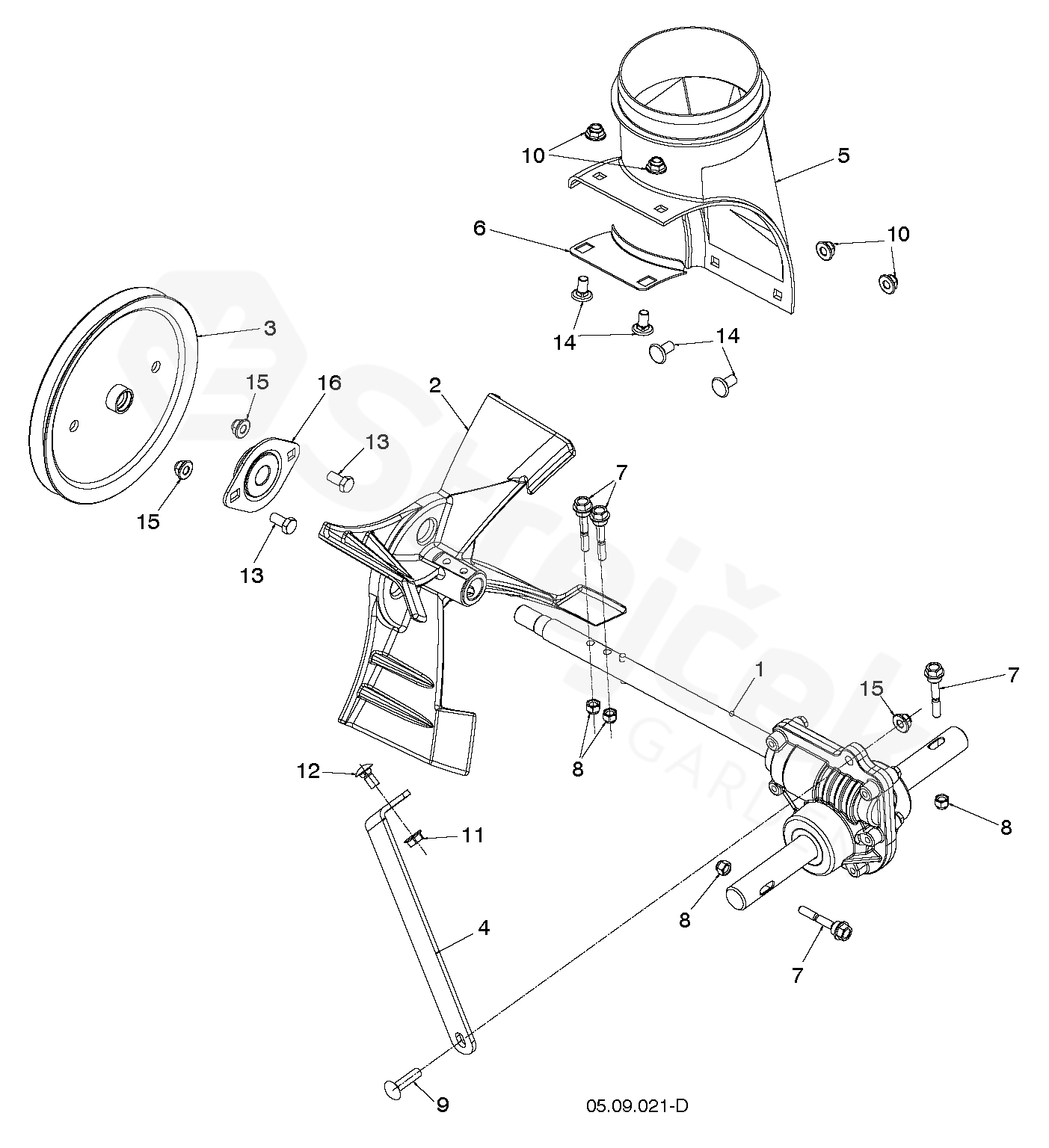

AUGER HOUSING & IMPELLER
ST 324P ST 324P, 96191008200, 2014-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 324P, 96191008200, 2014-06
1 GEARBOX 586715001
2 IMPELLER 585198303
3 PULLEY 586715401
4 SUPPORT 585109004
5 CHUTE 585056901
6 DESKA 532184095
7 SCREW 585511801
8 MATICE 873800400
9 BOLT 872110510
10 BOLT 585691301
11 BOLT 532751153
12 BOLT 585832001
13 BOLT 532163183
14 BOLT 585691201
15 MATICE 532427942
16 BEARING 532188909
