Spare parts > ST S p A > Trimmer/Brushcutter > W-TR22CX PETROL TRIMMER JOINTA W-TR22CX PETROL TRIMMER JOINTA (2004) > Engine
Back to
Engine

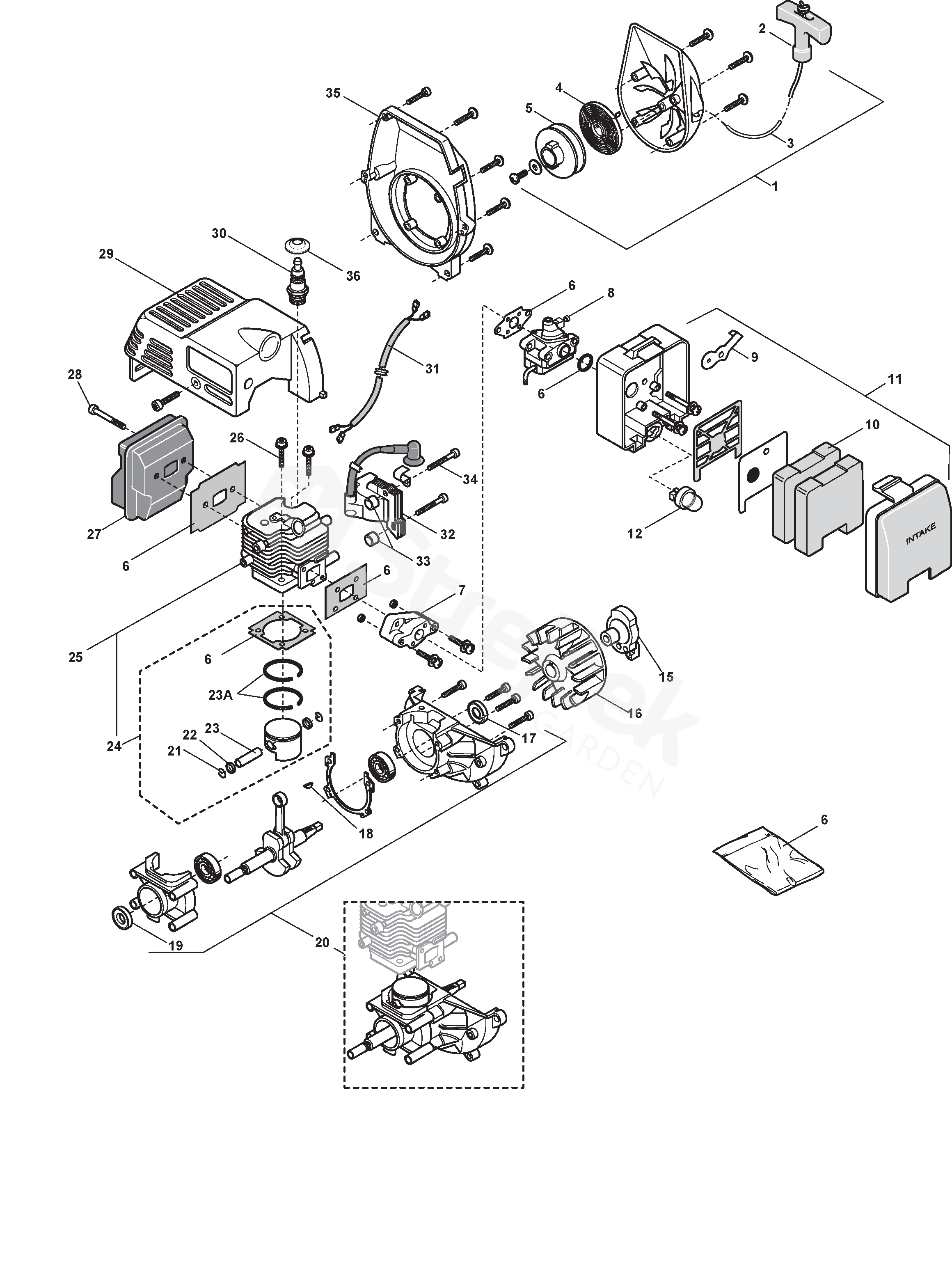

W-TR22CX PETROL TRIMMER JOINTA W-TR22CX PETROL TRIMMER JOINTA (2004)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For W-TR22CX PETROL TRIMMER JOINTA (2004)
1 Starter Grey Ass'Y 6980231
2 Handle, Starter 6980232
3 Starter cord 6980233
4 Spring 6980234
5 Starter Pulley 6980235
6 Gasket Set 6980236
7 Intake Manifold 6980237
8 Carburetor 6980238
9 Choke Lever 6980239
10 Filter 6980240
11 Air Filter Assy 6980241
12 Primer 6980242
15 Starter Cup Ass.Y 6980270
16 Flywheel 6980246
17 Seal Ring 6980247
18 Woodruff Key 6980248
20 Short Block 1L6980250/1
21 Washer 6980251
22 Gaket 6980252
23 Piston Pin 6980253
24 Piston Assy 6980254
25 Cylinder - Piston Ass'Y 6980255
26 Screw 6980256
27 Muffler 6980257
28 Screw 6980258
29 Shield 6980259/1
30 Spark Plug 3210024
31 Wires 6980260
32 Ignition Ass'Y 6980261
33 Gasket, Isolator 6980262
34 Screw 6980263
35 Cover 6980264
36 Cover, Spark Plug 6980265
