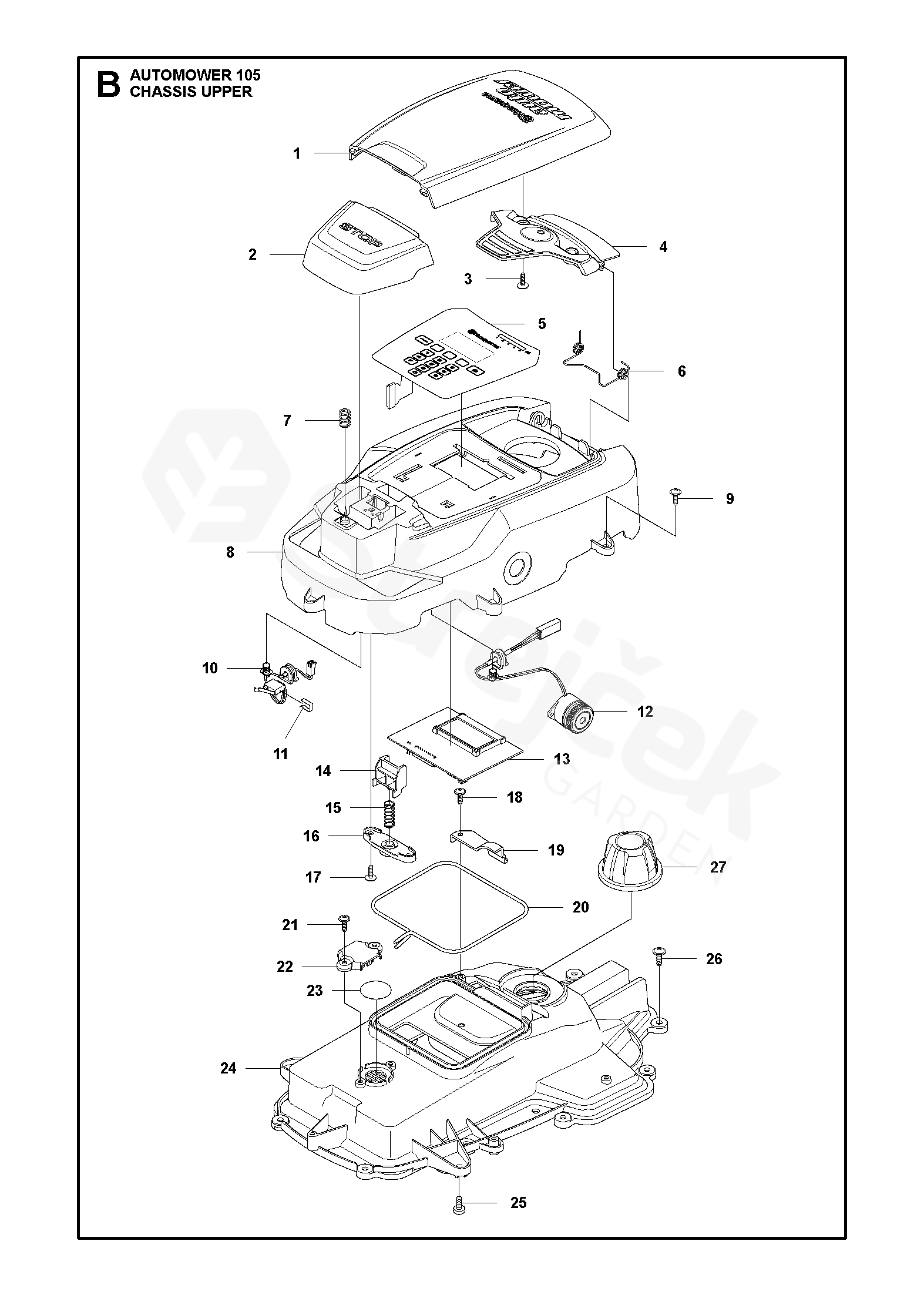

Spare parts - Partlist - AUTOMOWER 105 AUTOMOWER 105 - CHASSIS UPPER

Everything for your machines

AUTOMOWER 105 AUTOMOWER 105 (967622310 - 7393089366277, 967622312 - 7393089366284, 967645410 - 7391736288576, 967645411 - 7392930520950)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For AUTOMOWER 105

1	COVER Cover Height Adjustment, Grey Cover Height Adjustment, Grey	588797603
2	BUTTON Stop Button	574464701
3	SCREW Screw, Grey (14 mm)	575543314
4	HINGE Hinge, Height Adjustment Lid	574377901
5	KEYBOARD Keyboard	575779401
6	SPRING Spring, Height Adjustment Lid	576242101
7	SPRING Spring, Stop Button	574487001
8	KIT Display Cover KIT incl. Sealing & Keypad	577752802
9	SCREW Screw, Grey (14 mm)	575543314
10	SWITCH Micro Switch, Stop Button	574480301
11	CLIP Clip, Stop Button	535089801
12	BUZZER Buzzer, Display Cover	574475901
13	PRINTED CIRCUIT ASSY Display/HMI, Circuit Board (From S/N 16010001-)	588441901
14	LOCK Lock, Stop Button	575409001
15	SPRING Spring Lock, Stop Button	576242201
16	SPRING HOLDER Spring Holder, Stop Button	575415801
17	SCREW Screw, Grey (14 mm)	575543314
18	SCREW Screw, Grey (14 mm)	575543314
19	COVER For 2017 & 2016 models	576053901
20	SEALING STRIP Sealing Strip (1 pcs, ¯4 mm)	574874704
21	SCREW Screw, Grey (14 mm)	575543314
22	COVER Cover, Air Filter	576697001
23	KIT Air Filter KIT (10 pcs)	577753701
24	KIT Chassis Upper KIT incl. Sealing & Air Filter	577752902
25	SCREW Screw	590740201
26	SCREW ITXPANT Screw	574450101
27	KNOB Knob, KIT incl. Label	579742401
