Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > AUTOMOWER 105 AUTOMOWER 105 > CHARGING STATION
Back to

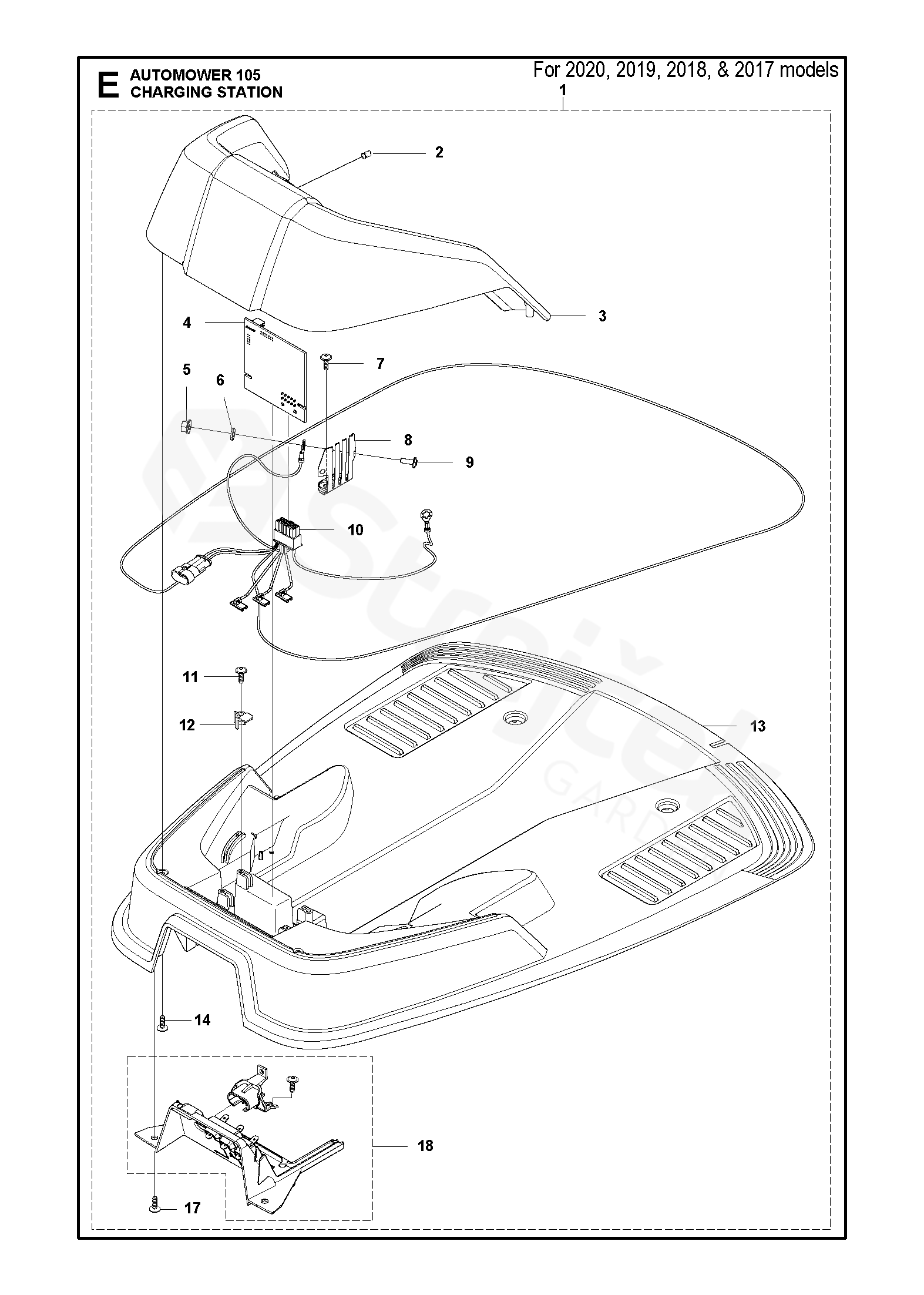

CHARGING STATION
AUTOMOWER 105 AUTOMOWER 105 (967622310 - 7393089366277, 967622312 - 7393089366284, 967645410 - 7391736288576, 967645411 - 7392930520950)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For AUTOMOWER 105
1 CHARGING STATION Charging Station
Charging Station 		576636712
2 LENS Lens
Diode Lens 		590217201
3 CHARGING STATION
Charging Station Cover, Grey 		575708402
4 PRINTED CIRCUIT ASSY
Circuit Board, Charging Station 		592909401
5 HEXAGON NUT FLANGE
Nut Flange 		588222101
6 WASHER
Washer 		535087401
7 SCREW
Screw, Grey (14 mm) 		575543314
8 CONTACT
Contact, Charging Station 		587125101
9 SCREW ITXPANM
Screw 		588222201
10 CABLE ASSY Loom, Charging Station
Loom, Charging Station 		582381001
11 SCREW
Screw, Grey (14 mm) 		575543314
12 BRACKET
Bracket 		535127901
13 CHARGING STATION Charging Station Base Plate
Charging Station Base Plate 		581551903
14 SCREW
Screw, Grey (14 mm) 		575543314
17 SCREW
Screw, Grey (14 mm) 		575543314
18 PANEL ASSY Guide Cover, Charging Station
Guide Cover, Charging Station 		582356401
