Spare parts > Husqvarna > ICE AUGERS > ST 224 ST 224 > AUGER HOUSING & IMPELLER
Back to

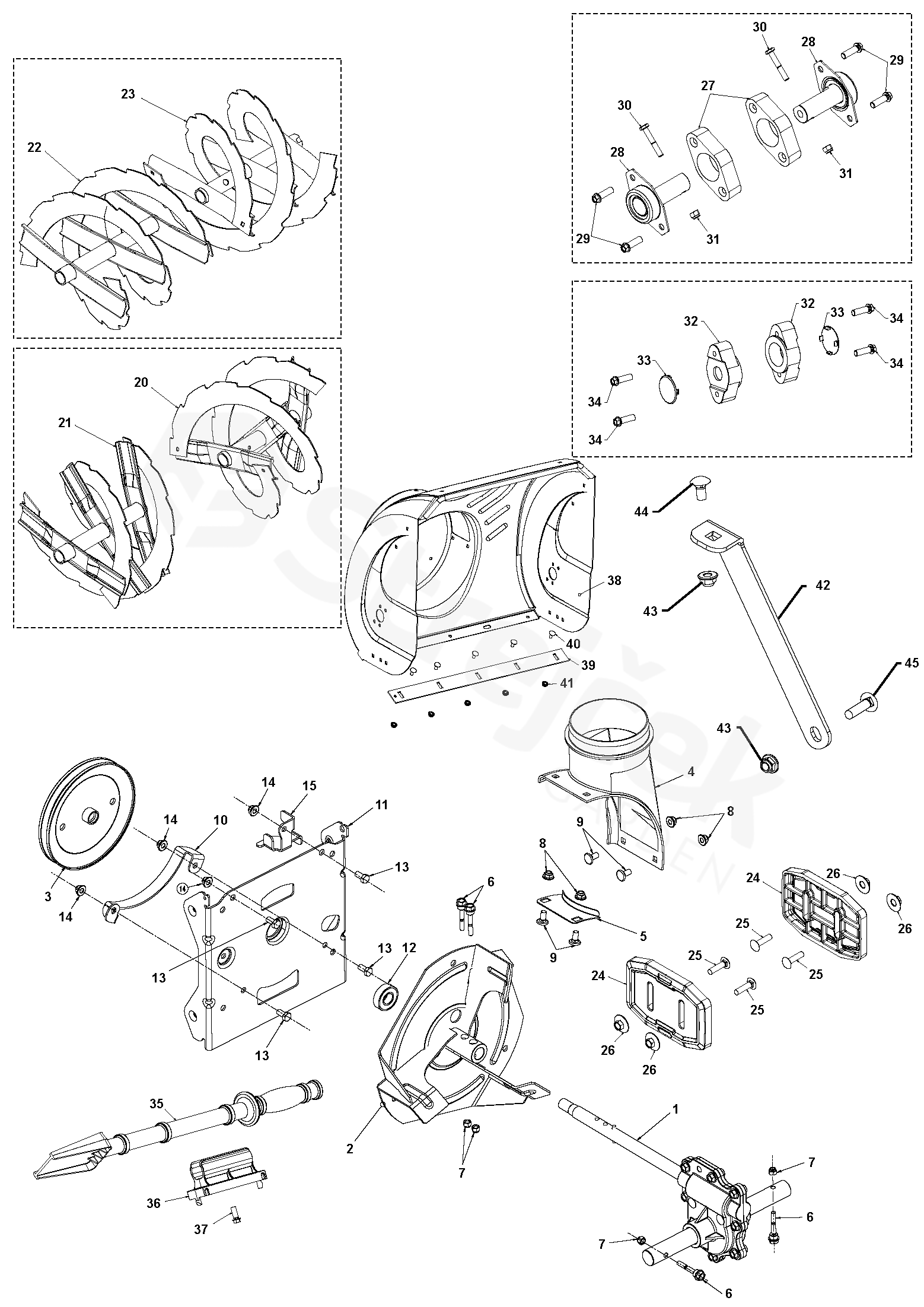

AUGER HOUSING & IMPELLER
ST 224 ST 224
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 224
1 GEARBOX
For 97046850100, 97046850101, 97046860100, 97046860101 		597671901
2 IMPELLER 586607202
3 PULLEY
For 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 		587402401
4 CHUTE 585056901
5 BRACKET
For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		597433002
6 BOLT
For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		588077502
7 NUT
For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		595086601
8 BOLT 585691301
9 BOLT 585691201
10 BRACKET
For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 		581632002
11 BRACKET
For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 		581592502
12 BALL BEARING 532198791
13 BOLT
For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 		532163183
14 MATICE
For 96191008700, 96193009601, 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 		532427942
15 GUIDE
For 96191008701, 96193009602, 96191008702, 96193009603, 96193009604, 96191008703 		587587202
20 AUGER
For all EXCEPT 96191008700, 96193009601, 96193009602, 96193009603, 96193009604, 96193009605 		587191001
21 AUGER
For 96191008700, 96193009601, 96193009602, 96193009603, 96193009604, 96193009605 		585544201
22 AUGER
For 96193009605 		585544201
23 AUGER
For 96193009605 		587191001
24 BOTA 583838801
25 BOLT 585802901
26 MATICE 585802801
27 HOLDER
For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		532188170
28 BEARING
For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		532427762
29 SCREW EHHFT
For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		584299401
30 NUT
For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		874780426
31 MATICE
For all EXCEPT 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		873800400
32 BEARING
For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		532420478
33 PLUG
For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		532411939
34 SCREW EHHFT
For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		584299401
35 TOOL.CLEAN.OUT 532192199
36 CLAMP 532405400
37 SCREW 532194189
38 HOUSING ASSY 581708390
39 BAR 532416215
40 BOLT 596039401
41 LOCK NUT
For 97046850100, 97046850101, 97046860100, 97046860101 		596039201
42 BRACE
For 96193009605, 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		589323002
43 BOLT
For 96193009605, 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		585691301
44 BOLT
For 96193009605, 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		585832001
45 BOLT
For 96193009605, 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101 		872110510
