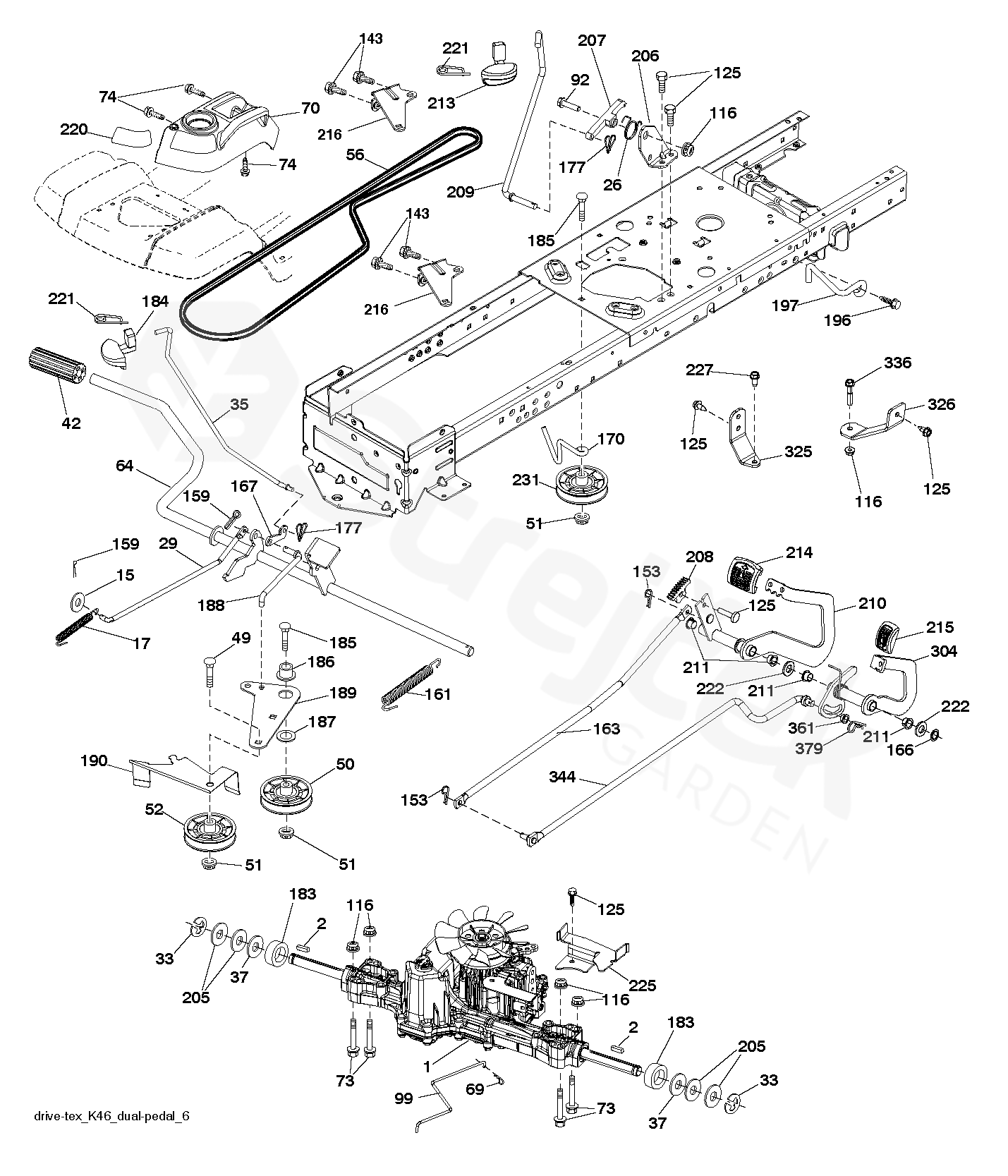

Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > TS 242D TS 242D > DRIVE
Back to
DRIVE
TS 242D TS 242D
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TS 242D
1 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
TRANSAXLE TUFFTORQ K46 CR (501051401) 		000000000
2 KEY 532123583
15 PODLOŽKA
For 96041044700 		819131316
17 SRPING.BRAKE.K46.GREEN*SUBS/2* 532413678
26 SPRING 532199679
29 ROD 532403806
33 RETAINER RING 812000001
35 ROD 583864502
37 PODLOŽKA 532188967
42 PEDAL RUBBER 532008883
49 BOLT 596136201
50 PULLEY 532194327
51 MATICE 873900600
52 PULLEY 532194326
56 BELT 592855201
64 HRÍDEL 532197865
69 HAIR PIN COTTER 532423303
70 CONSOLE 532439661
73 BOLT 596136501
74 SCREW 596134101
92 SCREW 595305701
99 ROD 582404501
116 LOCK NUT 596135701
125 SCREW 817000512
143 SCREW
For 96041044700 		596030701
153 CLIP 532004497
159 PIN 596029501
161 PRUŽINA 532105709
163 ROD
For 96041044700 		593861001
166 MATICE 532429164
167 LATCH 532405257
170 HLÍDAČ
For 96041044700 		532194322
177 RETAINER
For 96041044700 		596029401
183 ROZPĚRKA 532137057
184 HANDLE 587653701
185 BOLT 872110622
186 ROZPĚRKA 532194321
187 WASHER 596135501
188 ČLÁNEK 582217001
189 DESKA 532194317
190 BELT GUIDE 532194318
196 SCREW 817000616
197 CLUTCH
For 96041044700 		585658602
205 PODLOŽKA 532121748
206 BRACKET 532448596
207 LATCH 587031402
208 GEAR 596564101
209 ROD 596869801
210 PEDAL ARM
For 96041044700 		532400980
211 BEARING 532120183
213 CONTROL 532403119
214 PAD 532421263
215 PEDAL
For 96041044700 		586606502
216 BRACKET
For 96041044700 		532196131
220 LENS 532198908
221 RETAINER SPRING 532403187
222 PODLOŽKA 879212010
225 BELT GUIDE 532403319
227 BOLT 596135901
231 PULLEY 532407287
304 PEDAL 588987302
325 BRACKET
For 96041044700 		585668502
326 BRACKET
For 96041044700 		585670802
336 BOLT 587259602
344 ROD 597647301
361 BUSHING 597136701
379 PIN 596580601
