Husqvarna
>
TRACTORS/RIDE MOWERS
>
TS 248G TS 248G, 96041044400, 2019-08
>
CHASSIS & ENCLOSURES
Back to
TS 248G
TS 248G, 96041044400, 2019-08
CHASSIS & ENCLOSURES
TS 248G
TS 248G, 96041044400, 2019-08

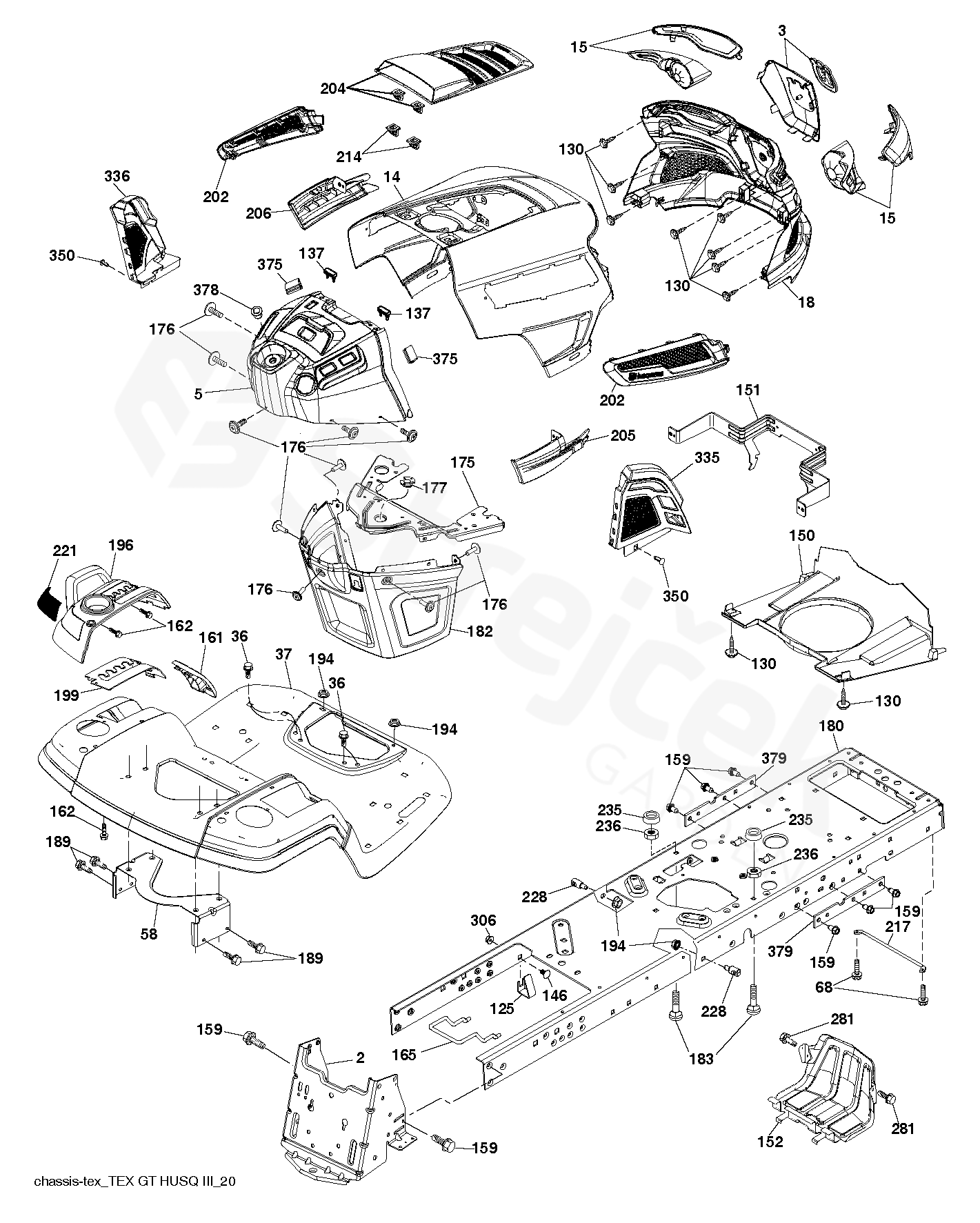

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TS 248G, 96041044400, 2019-08
2
DRAW BAR
580434401
3
COVER
597688201
5
DASHBOARD
590748813
14
HOOD
532441177
15
SERVICE KIT
LH
597867801
18
GRILLE
597407101
36
SCREW
817060512
37
FENDER
532441208
58
BRACKET
532194314
68
SCREW
596030701
125
CLIP
581684801
130
SCREW
596321701
137
DAMPING PIECE
532407590
146
BOLT
581857901
150
AIR DUCT
532439774
151
BRACKET
532436670
152
SHIELD
532439870
159
SCREW
817000612
161
CONSOLE
532439929
162
SCREW
596134101
165
SUPPORT
532194330
175
CROSS MEMBER
590607702
176
SCREW
532400776
177
BUSHING
532195228
180
CHASSIS
593346301
182
DASH
532406859
183
SCREW
595305701
189
SCREW
817000512
194
LOCK NUT
596135701
196
CONSOLE
532439716
199
PLATE
532198259
202
SERVICE KIT
RH
597867701
204
VENT
TOP
597408001
205
SKIRT
RH
532439730
206
SKIRT
LH
532439729
214
CLIP
532199145
217
ROD
532409167
221
LENS
LH
532198909
228
STUD
593824001
235
SPACER
596564201
236
MATICE
873930500
281
SCREW
817000616
306
MATICE
873900600
335
COVER
532448204
336
COVER
532445309
350
CLIP
532445143
375
BUMPER
586908201
378
BUSHING
590849801
379
PLATE
593206902
BUMPER ASSY
597334801
