Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > TC 242TX TC 242TX > ELECTRICAL
Back to
ELECTRICAL
TC 242TX TC 242TX (960510193 - 7392930297494)

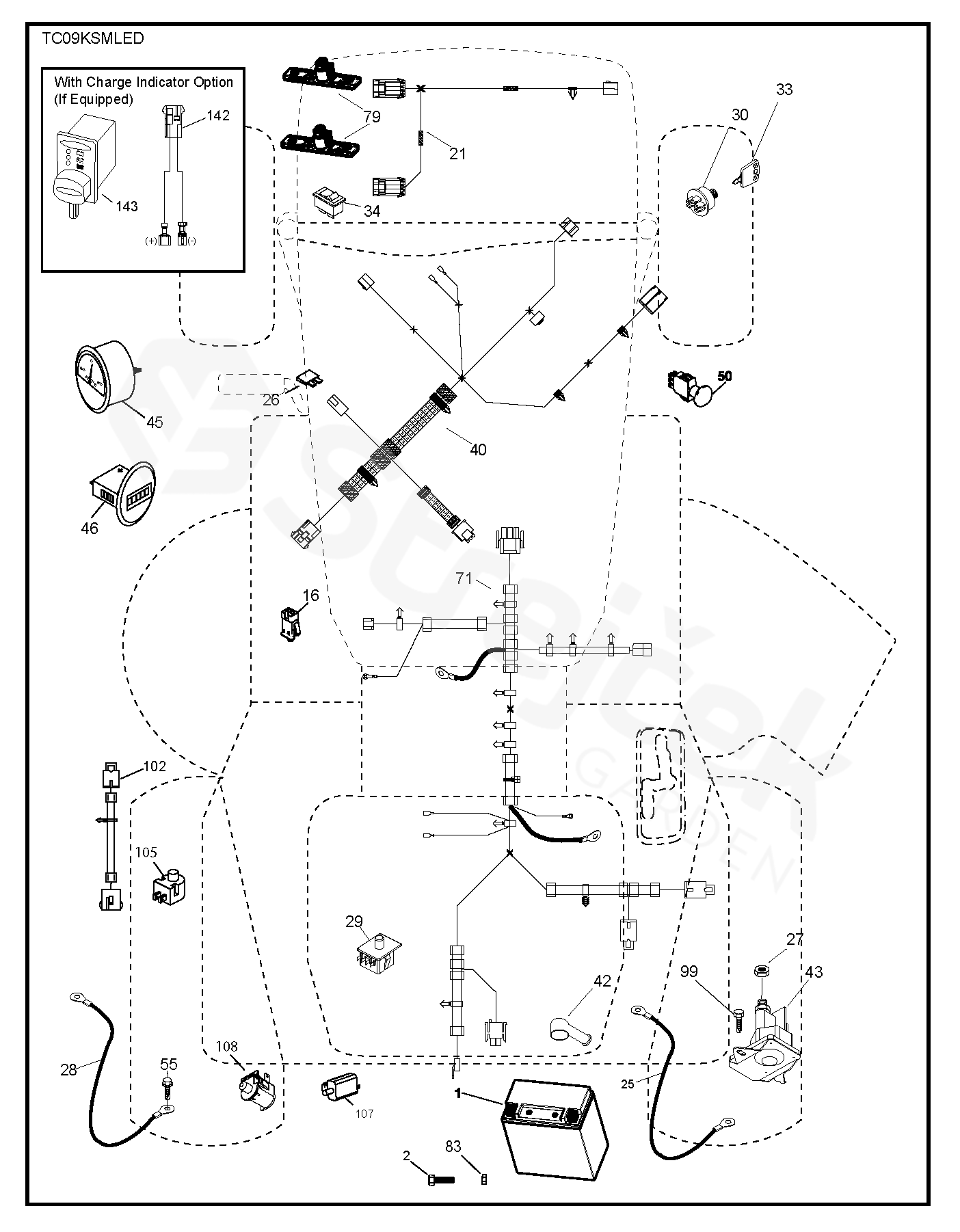

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TC 242TX
1 BATTERY 532437157
2 BOLT 596320101
16 SWITCH INTERLOCK 532176138
21 HARNESS 585436402
25 GROUND CABLE 589323701
26 FUSE 532175158
27 LOCK NUT 596133601
28 GROUND CABLE 589323601
29 SWITCH.SEAT.DP W/RAMPS 532192749
30 IGNITION MODULE 532193350
33 KEY 532411933
34 SWITCH 532110712
40 HARNESS 587304801
42 COVER 532131563
43 SOLENOID 582042802
45 GAUGE 587553906
46 GAUGE 587554006
50 SWITCH 582107602
55 SCREW 817060512
71 HARNESS 532440820
79 LIGHT 597523001
83 NUT 594086501
99 SCREW 817000512
102 HARNESS ASSY 532441262
105 SWITCH 532407568
107 SWITCH FBI 532180379
108 SWITCH 589500301
