Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
ZERO TURN: COMMERCIAL
>
Z 454X Z 454X, 967985002-00, 2020-01
>
FRAME - ROLL PROTECTION
Back to
Z 454X
Z 454X, 967985002-00, 2020-01

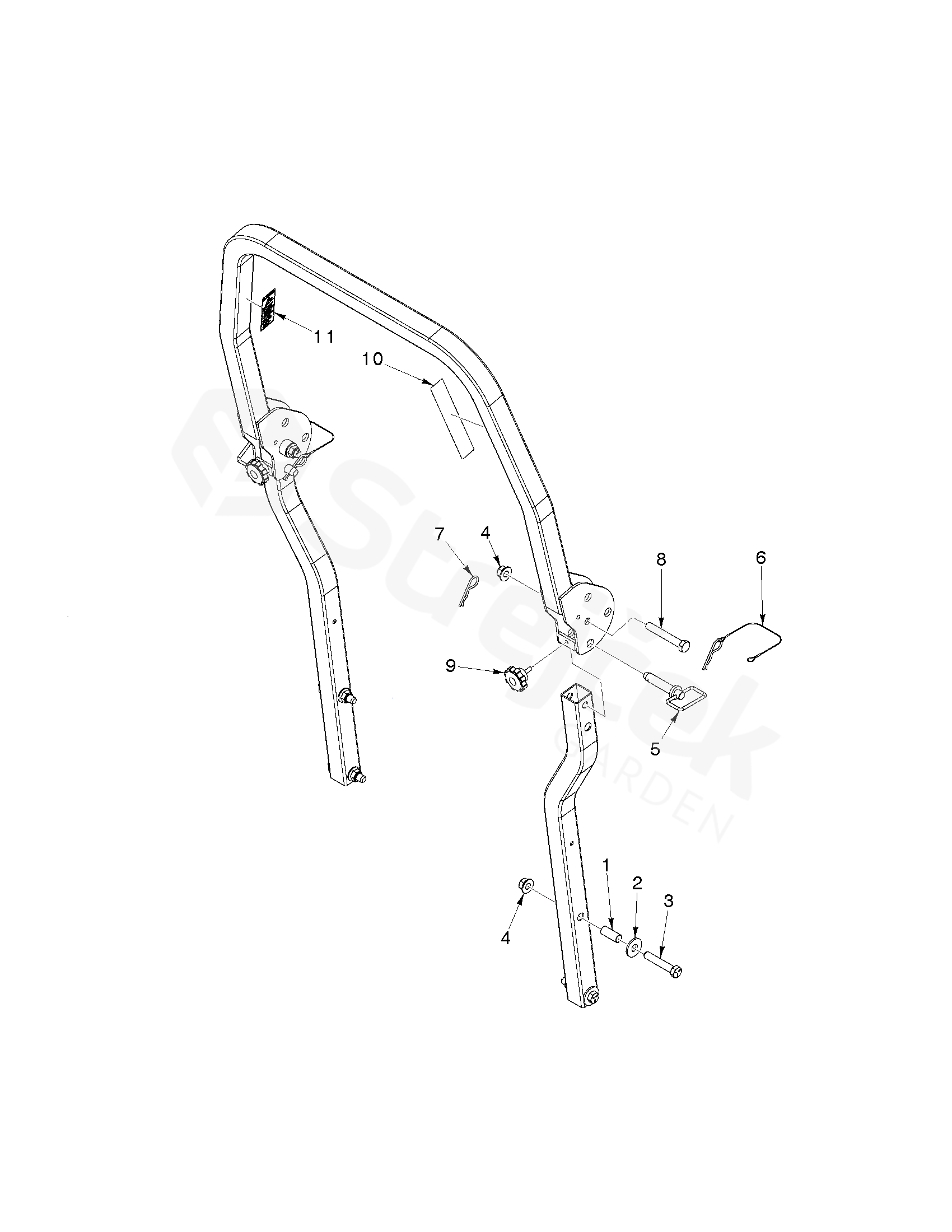

FRAME - ROLL PROTECTION
Z 454X
Z 454X, 967985002-00, 2020-01
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Z 454X, 967985002-00, 2020-01
1
SPACER
SPACER
597070601
2
WASHER
WASHER PLAIN .688X1.75X.138
594946401
3
BOLT
BOLT HEX HD 5/8-11UNC X 3,5 ''
580754602
4
NUT
NUT 5/8-11 FLANGE NYLOC
525829102
5
PIN
PIN W/ HANDLE CLEAR ZINC
591101602
6
PIN
WIRE LANYARD DOUBLE LOOPED
591101702
7
PIN
PIN COTTER 0.148 X 2-15/16 IN ST
596918001
8
BOLT
BOLT HEX 5/8-11 x 4-1/4 IN
591176602
9
KNOB
KNOB 5/16-18 X 1"
591344501
10
DECAL
DECAL
597758701
11
DECAL
DECAL WARNING
574569002
ROPS
COMPLETE KIT W/ SEAT BELT
598429101
