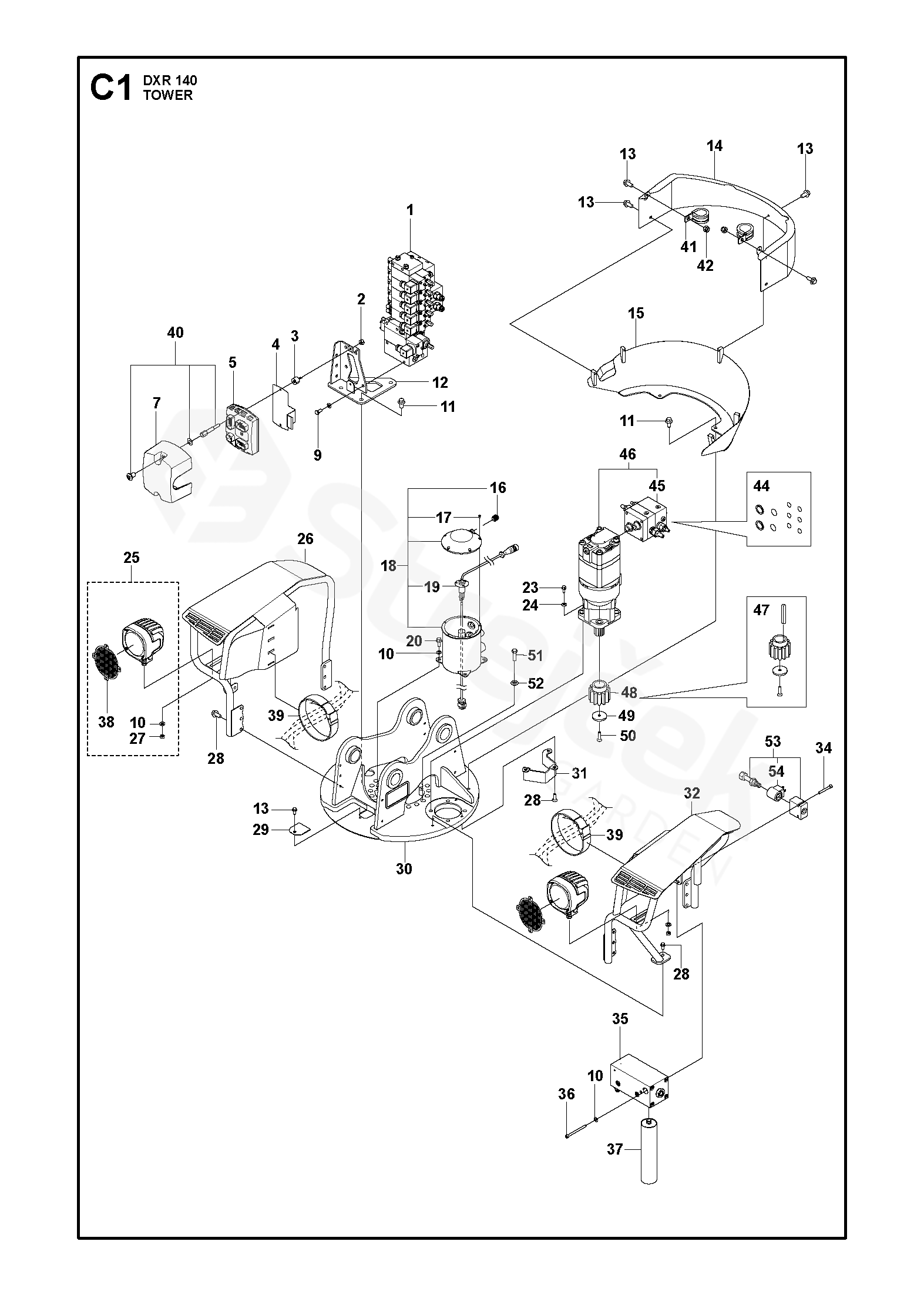

Spare parts - Partlist - DXR140 DXR 140 - TOWER

Everything for your machines

DXR140 DXR 140

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For DXR 140

1	BLOCK	585450901
2	NUT	576156701
3	DAMPER	575727801
4	BRACKET	574701401
5	ELECTRONIC BOX Master│Gen.2-4│Valid for machine S/N 12-forward│Empty/Contains NO Software	574664801
6	SCREW	574701501
7	PROTECTION	574664901
9	SCREW EHHM	522667801
10	PODLOŽKA	734116301
11	SCREW EHHFM	522706601
12	CONSOLE	525859801
13	SCREW EHHFM	522668601
14	COVER	588081601
15	COVER	588065601
16	CABLE	576676101
17	SCREW IHSCM	576676001
18	SWIVEL	579653101
19	SWIVEL	576675901
20	SCREW IHSCM	725545301
23	SCREW IHSCM	510241201
24	WASHER	510243601
25	LIGHT	588126101
26	FRAME	588110401
27	LOCK NUT	522669401
28	SCREW EHHFM	522707102
29	COVER	576434901
30	BASEPLATE	525846101
31	PROTECTION	575814501
32	FRAME	588159801
34	SCREW EHHFM	503200033
35	PUMP	505277801
36	SCREW	576154901
37	GREASE	521917701
38	LENS For new work light, 588 12 61-01 For new work light, 588 12 61-01	588903601
39	PÁSEK	522733601
40	SCREW	574701501
41	HOSE CLAMP	583831201
42	LOCK NUT	522669301
44	SEAL KIT	579834301
45	VALVE	576379301
46	SLEWING DRIVE	579428301
47	LOOSE PARTS KIT For old slew motor with key shaft	591161901
48	PINION For new slew motor with spline shaft	590503201
49	WASHER	590502801
50	SCREW IHCSFM	725645551
51	SCREW EHHM	574257501
52	WASHER	510243601
53	CONTROL VALVE	522740001
54	SOLENOID	522963001
