Spare parts > Husqvarna > CHAIN SAWS > 565 565 > CLUTCH & OIL PUMP
Back to

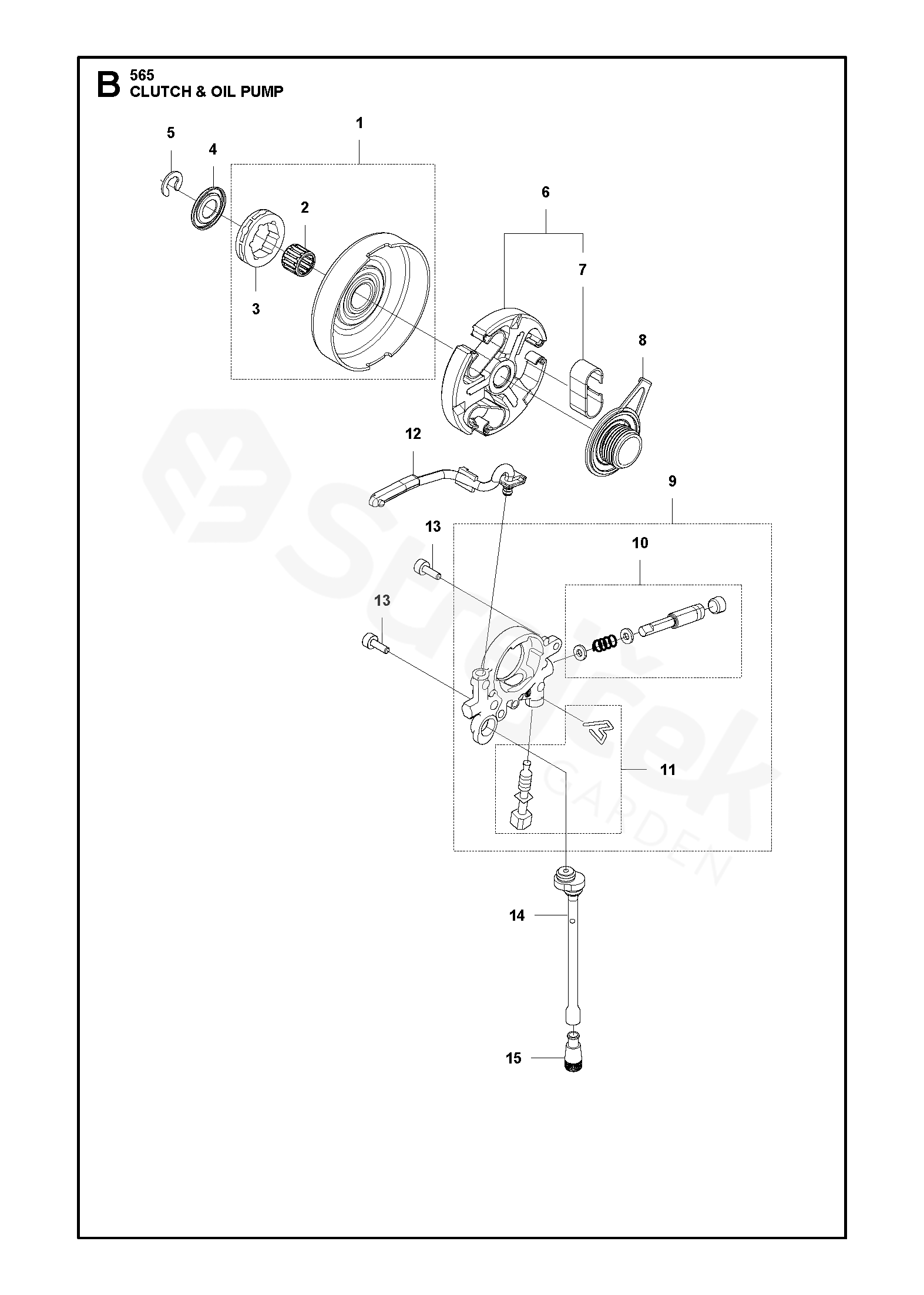

CLUTCH & OIL PUMP
565 565
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 565
1 CLUTCH DRUM ASSY 577603801
2 DRŽÁK JEHLY 503432001
3 RÁFEK 501598002
4 PODLOŽKA 503752401
5 E-CLIP 503272101
6 CLUTCH ASSY 586798404
7 CLUTCH SPRING 537360601
8 PUMP PINION 582270108
9 OIL PUMP ASSY 589028401
10 PUMP PISTON 590119701
11 OIL PUMP 590120101
12 OIL PRESSURE HOSE 576987401
13 SCREW ITXSCM 526818102
14 OIL HOSE 588404702
15 OIL SCREEN 501544102
