Spare parts
Everything for your machines
Spare parts
>
Husqvarna Construction Products
>
TROWELS
>

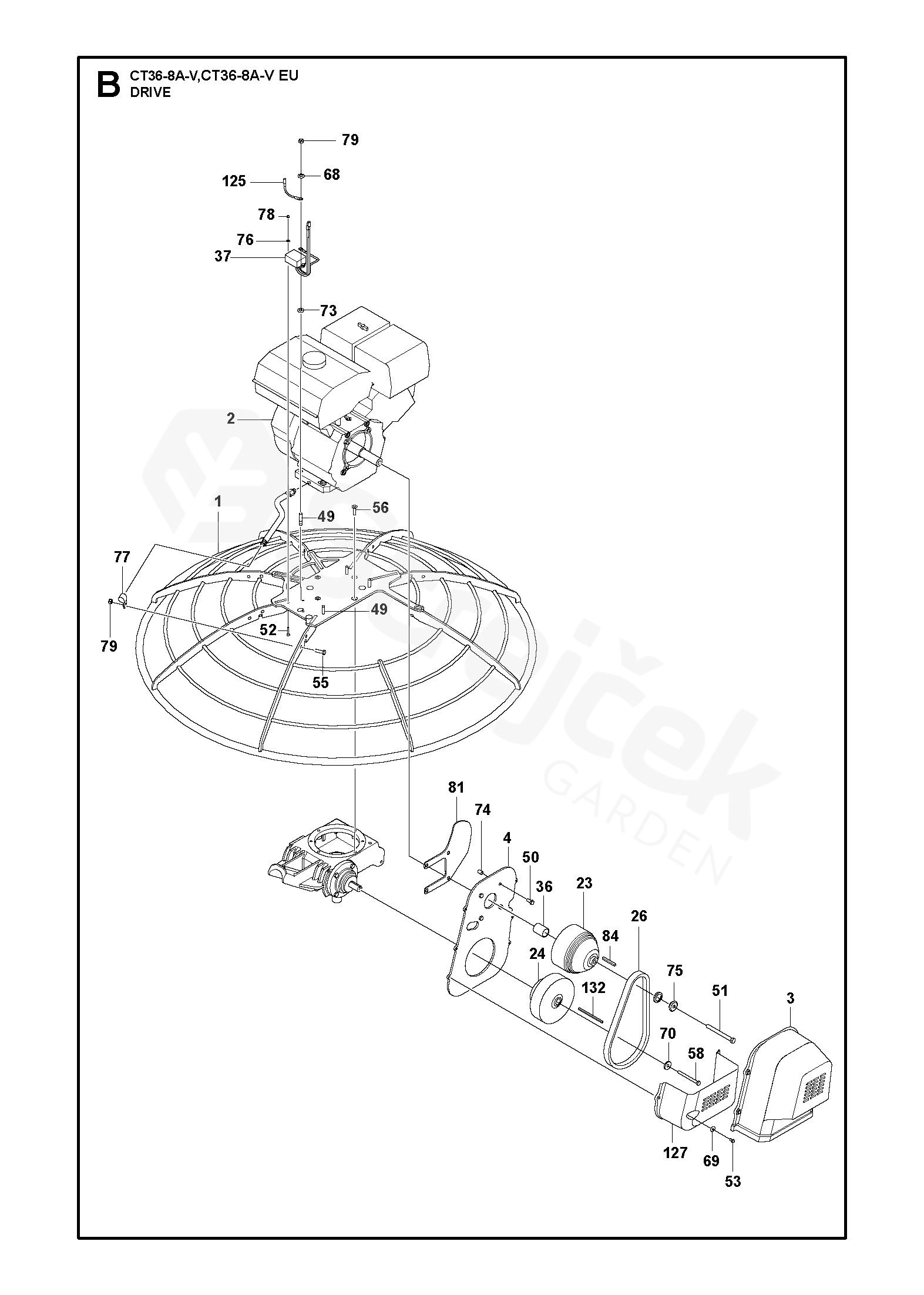

CT 36 CT 36
>
DRIVE
Back to
CT 36
CT 36
DRIVE
CT 36
CT 36
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
CT 36
1
RING
599083601
2
ENGINE
8hp
599101901
3
BELT GUARD
599131602
4
PLATE
599063701
23
CLUTCH
3/4in
599063301
24
CLUTCH
599063401
26
BELT
599062601
36
SPACER
599063201
37
CONTROL
599069801
49
STUD
599170201
50
SCREW
5/16-24 x 1-1/4in18Nm/13ft.lbs, DIN933
599162501
51
SCREW
3/8in x 24 x 5,5
599175101
52
SCREW EHHM
M4 x 203Nm/2ft.lbs
725229571
53
BOLT
M6 x 1010Nm/7ft.lbs
596320101
55
SCREW EHHM
M8 x 2525Nm/18ft.lbs
725245371
56
SCREW
M8 x 3025Nm/18ft.lbs, DIN933
599162001
58
SCREW
M8 x 1,25 x 75
725246651
68
LOCKWASHER
8, DIN6796
599161901
69
PODLOŽKA
6, ISO7093
734115441
70
WASHER
599063501
73
HEXAGON NUT
734117201
74
SPACER
599063101
75
PODLOŽKA
12, ISO7090
734117801
76
PODLOŽKA
734114601
77
CLAMP
599001401
78
LOCK NUT
599159801
79
LOCKING NUT
M8, DIN985
522919401
81
PLATE
599011601
84
KEY
1/4 x 3/16in
599174901
125
WIRING
599027501
127
BELT GUARD
599159602
132
KEY
599175001
