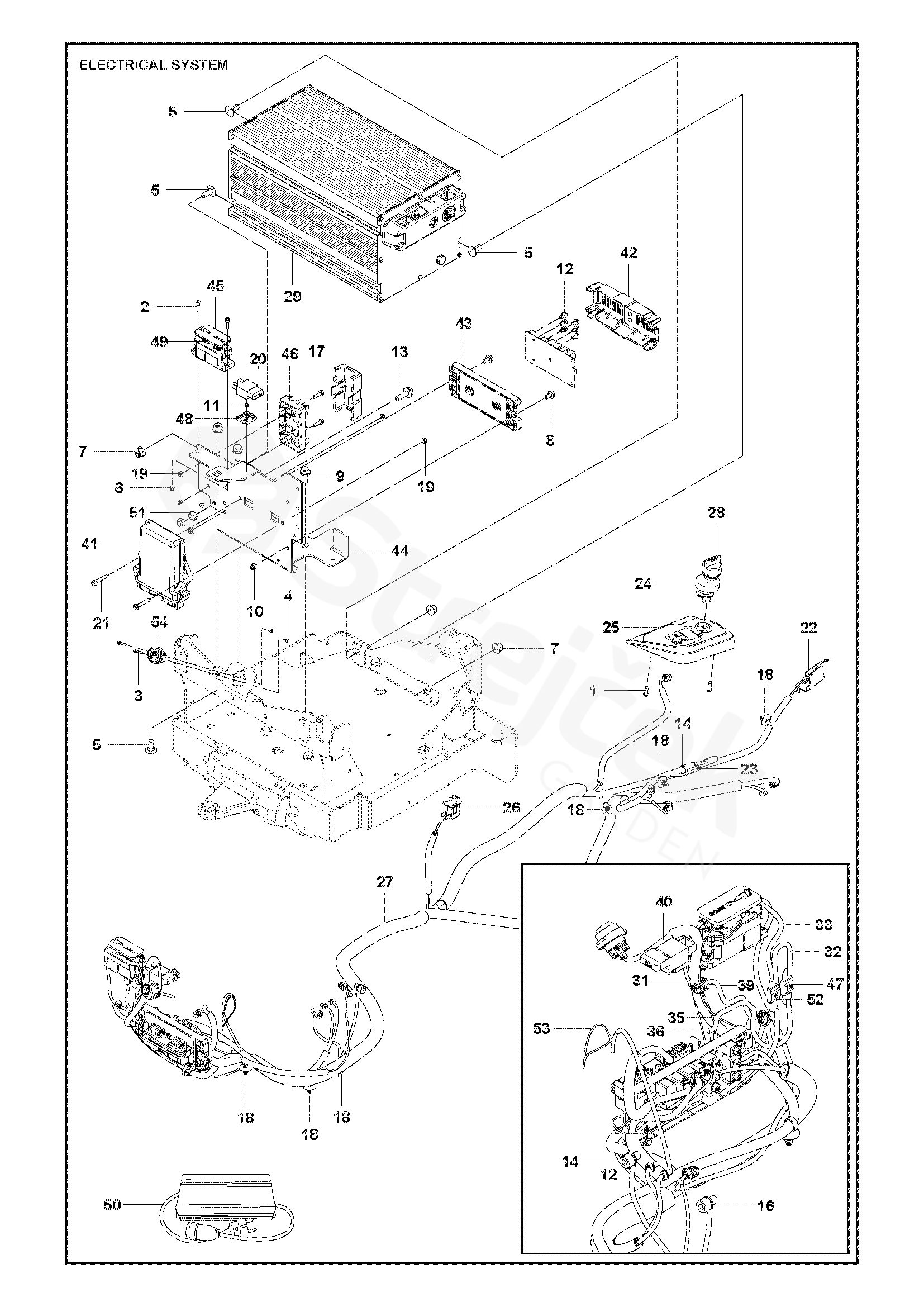

R112 iC R112 iC, 967848201,

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For R112 iC, 967848201,

1	SCREW ITXPANT	502435301
2	SCREW ITXSCM	526818101
3	SCREW IHSCM	725523001
4	HEXAGON NUT	731231001
5	SCREW	727645151
6	HEXAGON LOCKING NUT	732251201
7	NUT FLANGE	576645704
8	SCREW EHHFM	535475212
9	SCREW EHHFM	506570104
10	LOCK NUT	732211601
11	BLIND RIVET	722782902
12	SCREW ITXSCFM	525755107
13	SCREW	577216501
14	SCREW	593333301
16	PODLOŽKA	734116401
17	SCREW ITXSCFM	525755101
18	PÁSEK	579317401
19	LOCK NUT	732211401
20	FUSE	536795401
21	SCREW EHHFM	535475230
22	SWITCH	544415901
23	SWITCH	574316101
24	KEY SWITCH	597971701
25	CONTROL PANEL	596021301
26	SWITCH	532407568
27	WIRING ASSY	596021901
28	IGNITION KEY	535476001
29	BATTERY	596023901
31	WIRING ASSY	596028003
32	WIRING ASSY	596028004
33	WIRING ASSY	596028005
35	WIRING ASSY	596028007
36	WIRING ASSY	596028008
39	WIRING ASSY	596022101
40	WIRING ASSY	597329201
41	CONTROL UNIT	596022301
42	COVER	597989401
43	ELECTRONIC BOX	596022401
44	SHEET	596034201
45	CONTACTOR	596649301
46	FUSE HOLDER	578263701
47	FUSE	578779705
48	CLIP	501007501
49	DIODE	587839401
50	POWER SUPPLY	595308601
51	LOCK NUT	732211801
52	FUSE	578779701
53	WIRING ASSY	536105201
54	CONNECTOR	536619401
