Spare parts > Husqvarna Construction Products > POWER CUTTERS > K970 Smartguard K970 Smartguard, 2021-06 > BELT GUARD & PULLEY
Back to

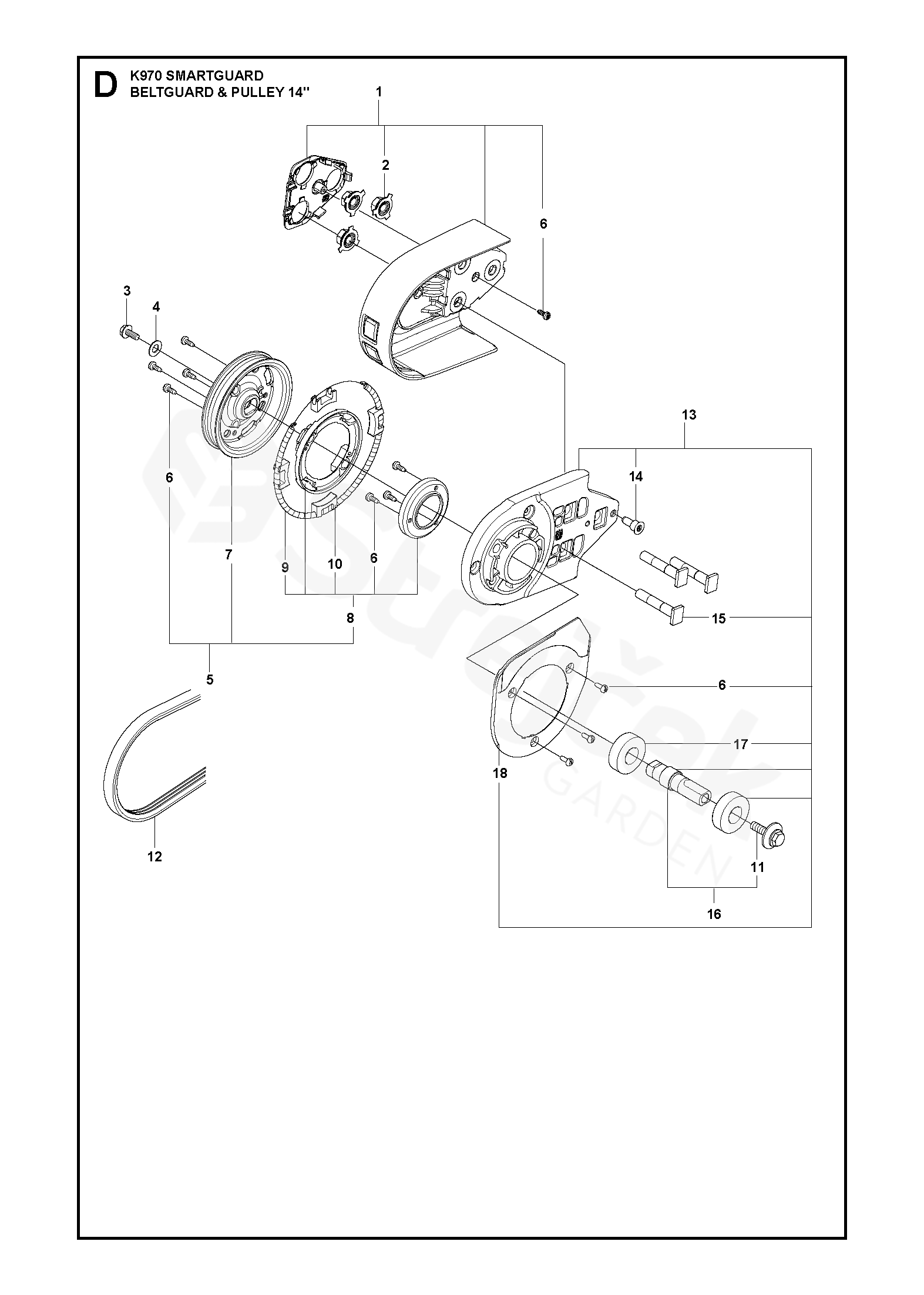

BELT GUARD & PULLEY
K970 Smartguard K970 Smartguard, 2021-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K970 Smartguard, 2021-06
1 BELT GUARD
14" 		501057103
2 NUT WASHER 586743701
3 SCREW EHHFM 503200045
4 PODLOŽKA 503230116
5 PULLEY ASSY 586307002
6 SCREW CITXPANT 525887402
7 PULLEY 584439401
8 CASSETTE 505445405
9 DRAW SPRING 544441001
10 BRAKE SHOE 544440402
11 SCREW 590503801
12 BELT
14" 		544976304
13 BEARING HOUSING ASSY
14" 		588992003
14 SCREW 584994301
15 BAR BOLT 503875402
16 HRÍDEL Incl. 16 588992401
17 BALL BEARING 583953301
18 SLIP RING HOLDER 586801002
