Spare parts > Husqvarna Construction Products > LIGHT COMPACTION > LP9505 LP 9505, 967950801, 2021-09 > BATTERY
Back to

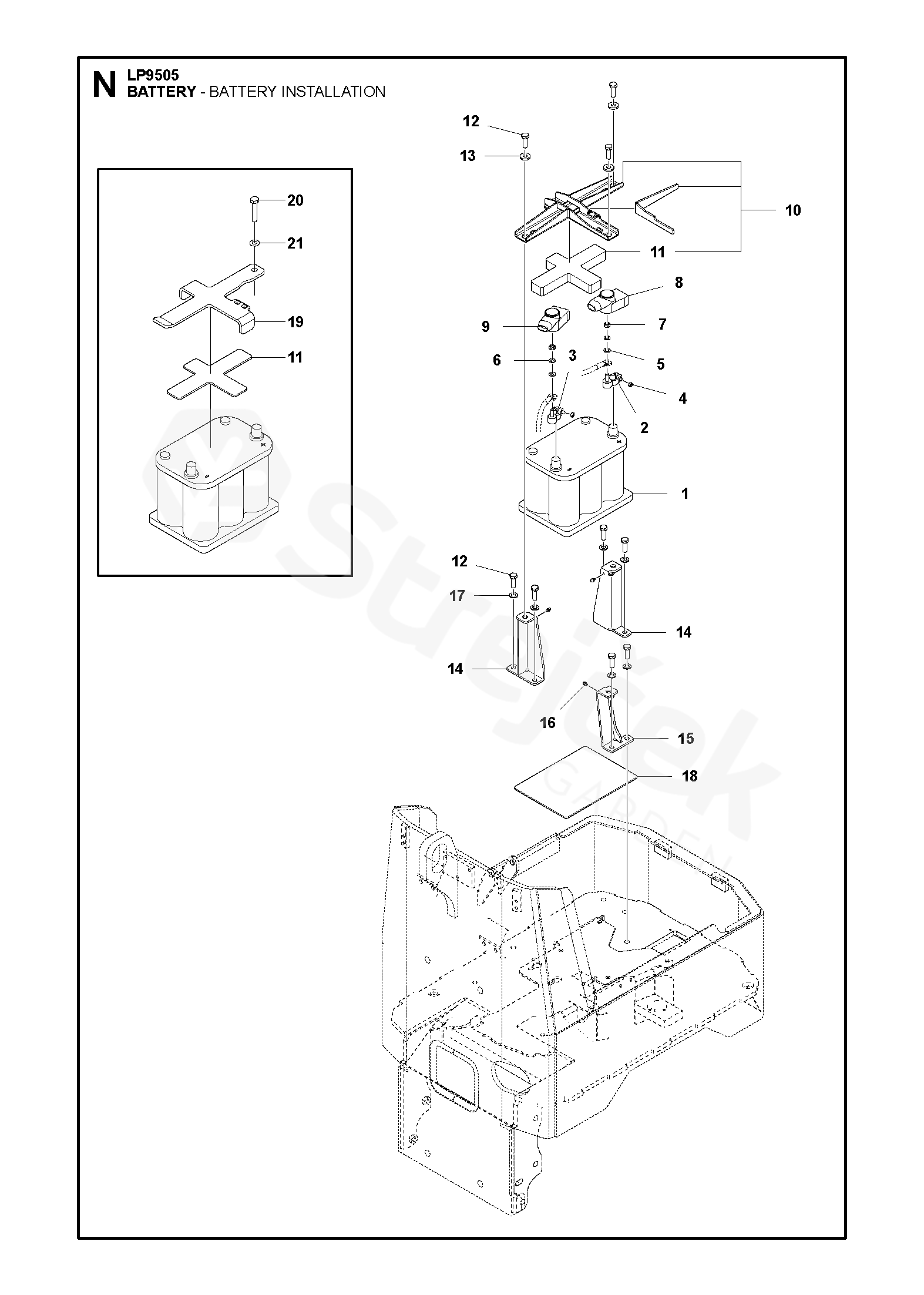

BATTERY
LP9505 LP 9505, 967950801, 2021-09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LP 9505, 967950801, 2021-09
1 BATTERY
BATTERY 		594485901
2 TERMINAL
BATTERY TERMINAL + 		596368001
3 TERMINAL
BATTERY TERMINAL - 		596368101
4 HEXAGON NUT
HEXAGON NUT 		595287501
5 WASHER
WASHER 		595036601
6 SPRING WASHER
SPRING WASHER 		597448301
7 NUT
NUT Hexagon 		595035701
8 TERMINAL
TERMINAL Battery terminal cover + 		596368201
9 TERMINAL
TERMINAL Battery terminal cover - 		596368301
10 SPRING
BATTERY TOP BRACKET ASM. Up to SN 20210600251 		594493901
11 INSULATION
BATTERY INSULATION - INSULATION Battery 		596912001
12 BOLT
BOLT, up to SN 20210600251 		594118501
13 WASHER
WASHER, up to SN 20210600251 		597448501
14 BRACKET
MOUNT BRACKET 1 ASM. Up to SN 20210600251 		596886101
15 BRACKET
MOUNT BRACKET 2 ASM. Up to SN 20210600251 		597448202
16 DAMPER
DAMPER Rubber, up to SN 20210600251 		596912301
17 WASHER
WASHER, up to SN 20210600251 		595113301
18 BATTERY
BATTERY Damping 		596912201
19 PLATE
From SN 20210600251 		529451605
20 SCREW EHHM
M10X50 HEX FT, From SN 20210600251 		725250171
21 WASHER
From SN 20210600251 		595113301
