Spare parts > Husqvarna Construction Products > LIGHT COMPACTION > LH 804 LH 804, 967897301, 967897302, 967897303, 967897304, 2022-01 > HYDRAULIC OIL TANK
Back to

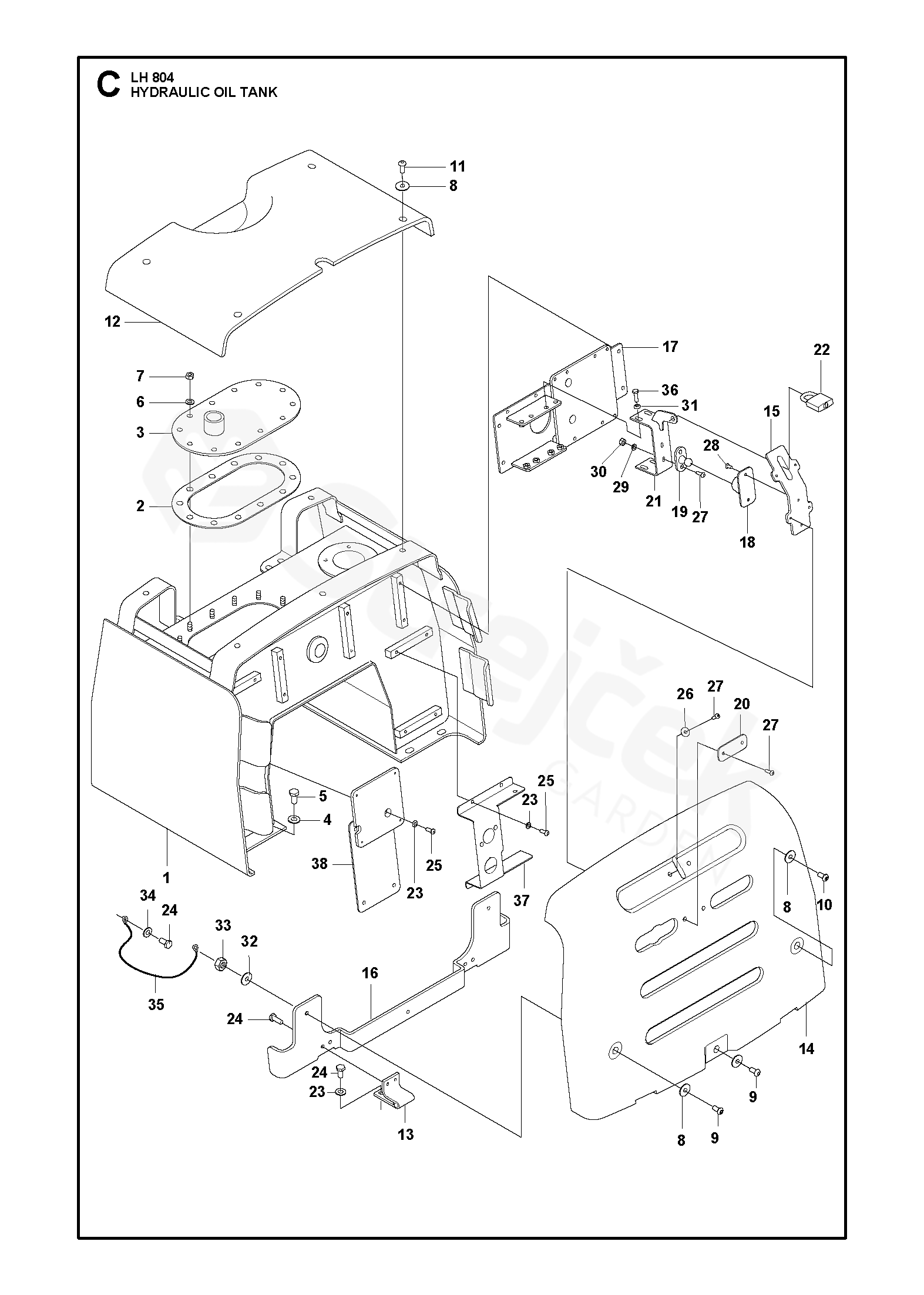

HYDRAULIC OIL TANK
LH 804 LH 804, 967897301, 967897302, 967897303, 967897304, 2022-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For LH 804, 967897301, 967897302, 967897303, 967897304, 2022-01
1 HYDRAULIC TANK 595279201
2 GASKET 594352601
3 COVER 595123201
4 WASHER 594747401
5 SCREW 594118401
6 WASHER 595036601
7 NUT 595035701
8 WASHER 594535201
9 SCREW 595187801
10 SCREW 598746501
11 SCREW 595183601
12 COVER 594958201
13 HINGE 595174001
14 HOOD 594959801
15 BRACKET 595173701
16 BRACKET 595173501
17 PLATE 595362001
18 BUMPER 595053001
19 BUMPER 595053101
20 BRACKET 595173601
21 BRACKET 594452301
22 LOCK 595456301
23 WASHER 595036501
24 SCREW 595033201
25 SCREW 595066401
26 WASHER 594535101
27 SCREW 595187301
28 SCREW 595065601
29 PLANE WASHER 594123801
30 NUT 595992601
31 WASHER 595181901
32 WASHER 595061001
33 NUT 595059901
34 WASHER 598185401
35 WIRE 595173001
36 SCREW 595109801
37 PANEL 595362201
38 PLATE 595362101
