Husqvarna
>
TRACTORS/RIDE MOWERS
>
TC 138L TC 138L
>

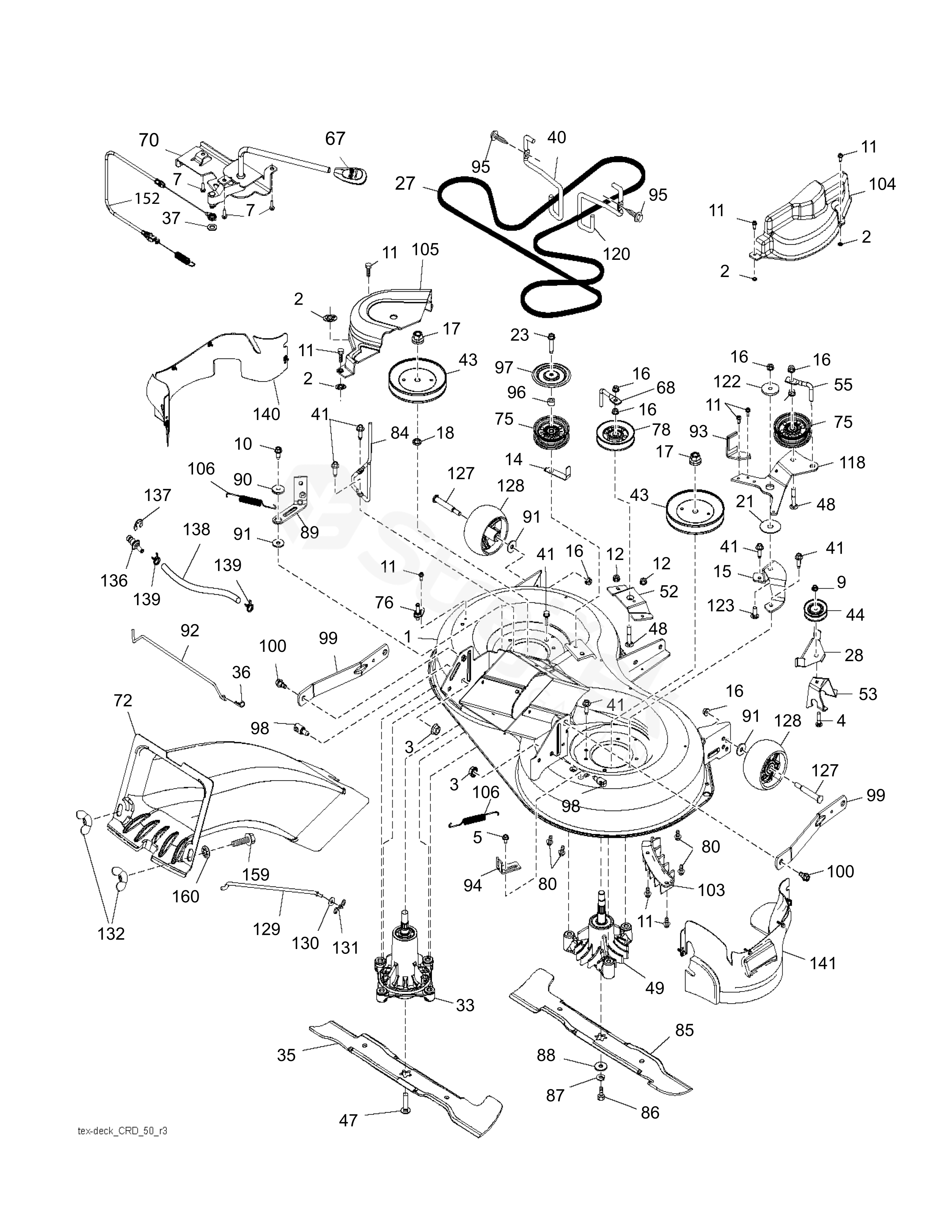

MOWER DECK / CUTTING DECK
Back to
TC 138L
TC 138L
MOWER DECK / CUTTING DECK
TC 138L
TC 138L (960510189 - 7392930300576)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TC 138L
1
SERVICE KIT
SERVICE KIT
592970001
2
MATICE
NUT
532423062
3
LOCK NUT
LOCK NUT
596135701
4
BOLT
BOLT
872110510
5
BOLT
BOLT
817000510
7
SCREW
SCREW
596321701
9
NUT
NUT
594944401
10
SCREW
SCREW
817000616
11
SCREW
SCREW
532137729
12
NUT
NUT
594944401
14
BELT GUIDE
BELT GUIDE
532156085
15
BRACKET
BRACKET
592854702
16
MATICE
NUT
873900600
17
HEXAGON NUT
HEXAGON NUT
596134801
18
PODLOŽKA
WASHER
532187690
21
PODLOŽKA
WASHER
532178515
23
BOLT
BOLT
596564003
27
BELT
DRIVE BELT
599365301
28
KEEPER
KEEPER
592855602
33
MANDREL
MANDREL
587819701
35
RIDE ON BLADE
BLADE
532427984
36
CLIP
CLIP
532004497
37
WASHER
WASHER
596565301
40
BELT GUIDE
BELT GUIDE
532197258
41
BOLT
BOLT
584953901
43
PULLEY
PULLEY
532197473
44
PULLEY
PULLEY
532199534
47
SCREW
SCREW
584309301
48
BOLT
BOLT
596136301
49
SPINDLE
MANDREL
532165579
52
BRACKET
BRACKET
599210703
53
BRACKET
BRACKET
595098103
55
KEEPER
KEEPER
598969201
67
HANDLE
HANDLE
532403012
68
KEEPER
KEEPER
598903802
70
CLUTCH
CLUTCH
532401246
72
CHUTE
CHUTE
582035601
75
PULLEY
PULLEY
597025001
76
PORT
PORT
532439640
78
PULLEY
PULLEY
532173902
80
BOLT
BOLT
595901601
84
KEEPER
KEEPER
589676102
85
RIDE ON BLADE
BLADE
532427985
86
BOLT
BOLT
532181713
87
WASHER
WASHER
596238701
88
PODLOŽKA
WASHER
532140296
89
ARM
ARM
532438124
90
ROZPĚRKA
SPACER
532199092
91
WASHER
WASHER
596134901
92
LINK
LINK
592855701
93
BRAKE
BRAKE
592854902
94
BRACKET
BRACKET
532197250
95
SCREW
SCREW
817000612
96
ROZPĚRKA
SPACER
532400271
97
PROTECTOR
PROTECTOR
532182061
98
STUD
STUD
593824001
99
ARM
ARM
532195186
100
BOLT
BOLT
532196539
103
GUARD
GUARD
532436992
104
GUARD
GUARD
592848101
105
DOMEČEK
MANDREL
532438744
106
RESSORT RETOUR FREIN DE LAME
SPRING
532193216
118
ARM
ARM
599236302
120
BELT GUIDE
BELT GUIDE
532197259
122
SPACER
SPACER
532165723
123
BOLT
BOLT
596987501
127
BOLT
BOLT
596434404
128
WHEEL
WHEEL
589527301
129
ROD
ROD
532404851
130
WASHER
WASHER
596133201
131
KOLÍČEK
PIN
532194208
132
KNOB
KNOB
532178899
136
PLUG
PLUG
532439639
137
POJISTNÝ KROUŽEK
RETAINER RING
812000029
138
HOSE
HOSE
532440743
139
CLAMP
CLAMP
596867401
140
GUARD
GUARD
598660801
141
GUARD
GUARD
598660702
152
CABLE
CABLE
532440488
159
BOLT
BOLT
872140614
160
PODLOŽKA
WASHER
532168937
161
DUMMY PART
DUMMY PART
900000002
