Spare parts > Husqvarna > Commercial Riders > P 525D P 525D > HYDRAULICS
Back to

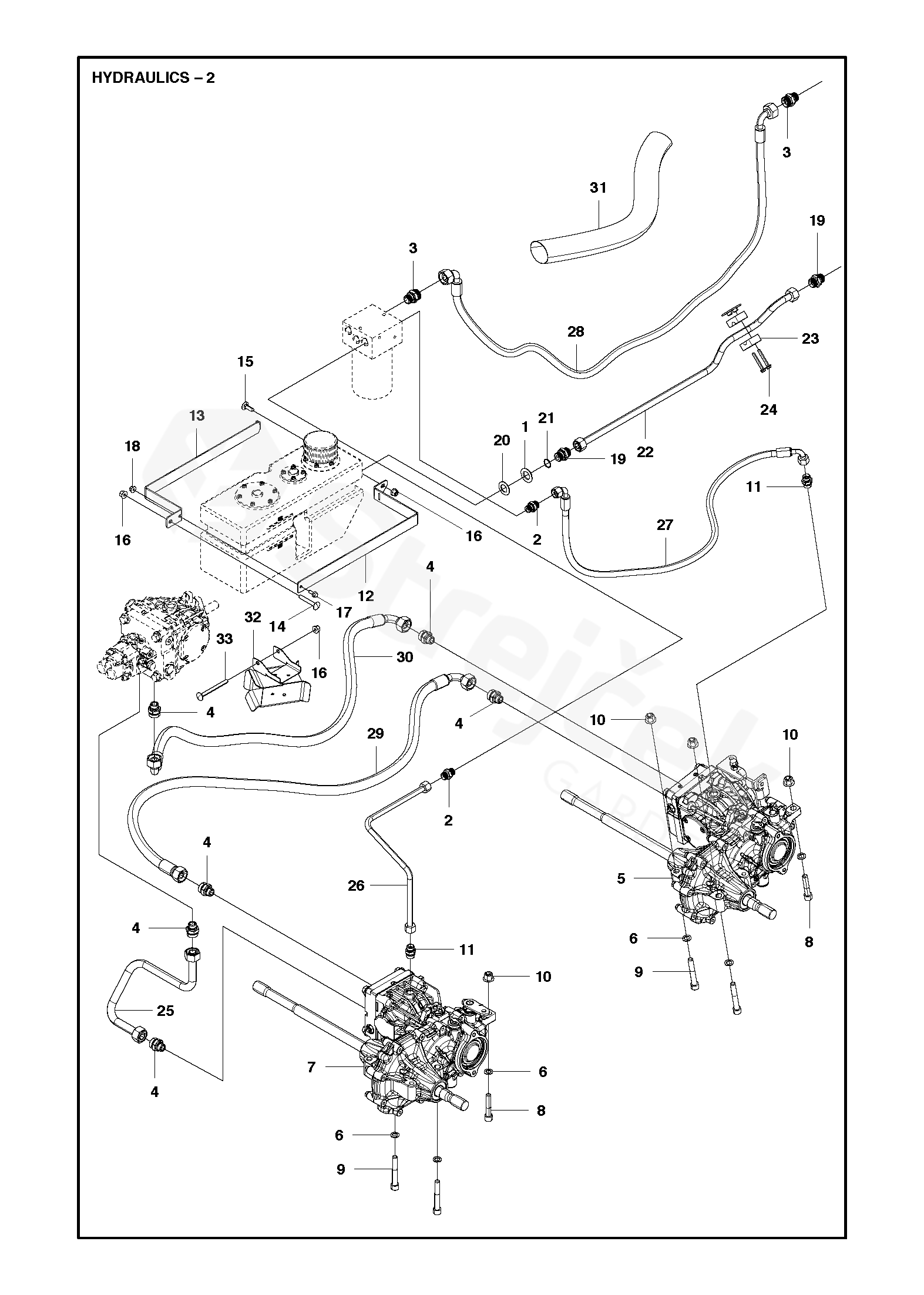

HYDRAULICS
P 525D P 525D (966607401 - 7391883547786, 967847801 - 7391736549790, 967292401 - 7393089048906)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For P 525D
1 WASHER 506775701
2 CONNECTOR 575881304
3 CONNECTOR 575881301
4 CONNECTOR 575881401
5 TRANSMISSION 579408901
6 PODLOŽKA 734117771
7 TRANSMISSION 579409001
8 SCREW IHSCM 544256303
9 SCREW IHSCM 544256301
10 NUT FLANGE 576645706
11 CONNECTOR 575881402
12 BRACKET 575871201
13 BRACKET 575871301
14 SCREW RSQM 535423802
15 SCREW RSQM 535423801
16 NUT FLANGE 576645704
17 SCREW 725236851
18 NUT FLANGE 576645703
19 CONNECTOR 575881303
20 WASHER 522471301
21 O-RING 740421700
22 HYDRAULIC PIPE 579706801
23 PIPE CLAMP 579736101
24 SCREW EHHFM 535475245
25 HYDRAULIC HOSE 587444601
26 HYDRAULIC PIPE 575875901
27 HYDRAULIC HOSE 575874602
28 HYDRAULIC HOSE 575874802
29 HYDRAULIC HOSE 575874401
30 HYDRAULIC HOSE 575874502
31 HOSE GUARD 505453802
32 TUBE 579582502
33 SCREW RSQM 727646951
