Spare parts > Husqvarna > ICE AUGERS > ST 227P ST 227P > CONTROL PANEL AND DISCHARGE CHUTE
Back to

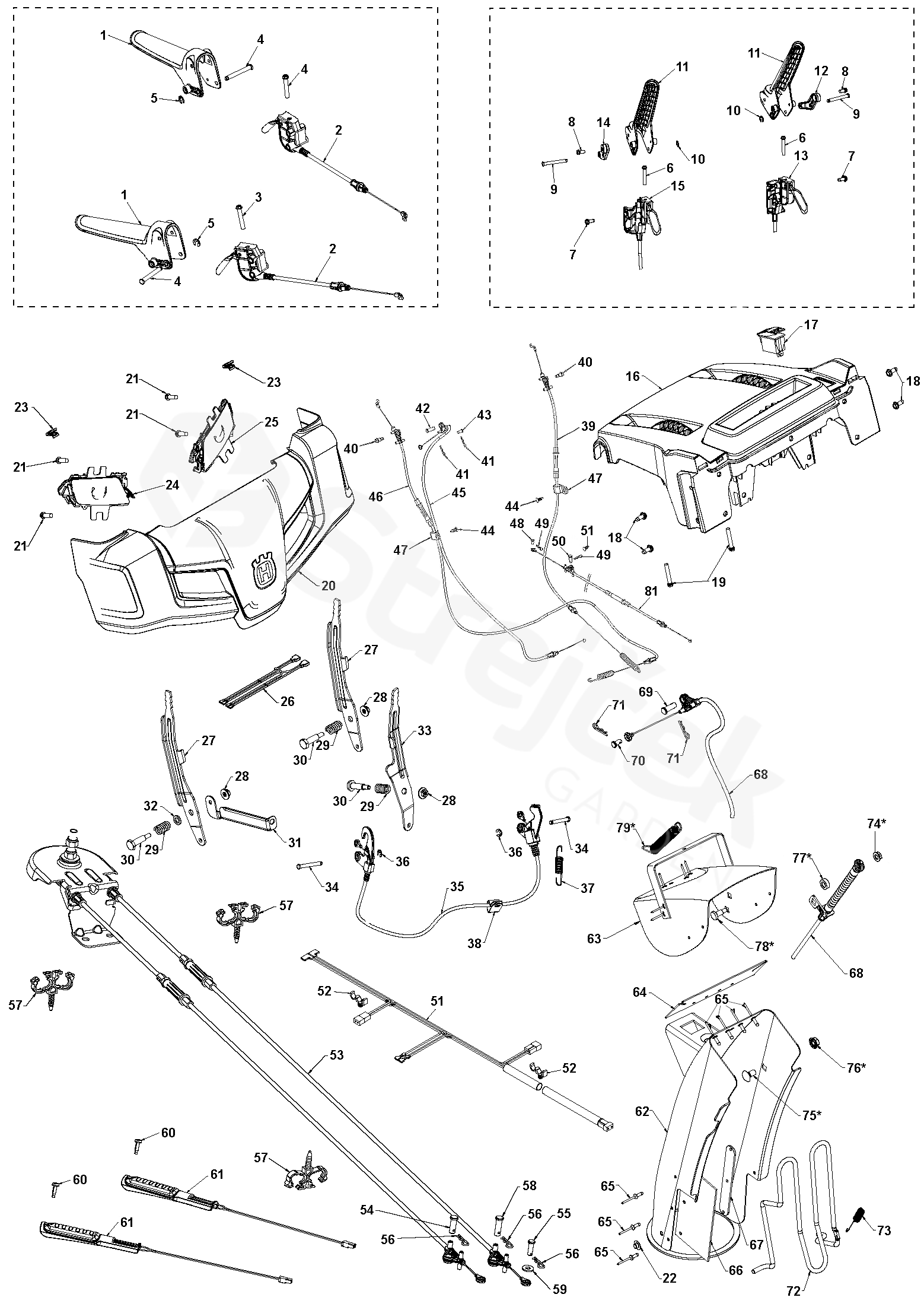

CONTROL PANEL AND DISCHARGE CHUTE
ST 227P ST 227P (961910088 - 7393089117121)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 227P
1 LEVER
For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 		587463001
2 CABLE
For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 		581208201
3 SCREW
For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 		585690701
4 PEN
For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 		532431762
5 RETAINING RING
For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 		812000014
6 SCREW
For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802 		581329501
7 SCREW
For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802 		817060410
8 SCREW
For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802 		817411308
9 KOLÍČEK
For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802 		588147701
10 RETAINING RING
For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 		812000014
11 LEVER
For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 		587463001
12 LEVER
For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802, RH 		587739702
13 CABLE
For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802, RH 		588263902
14 LEVER
For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802, LH 		587739701
15 CABLE
For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802, LH 		588263901
16 CONSOLE 581131212
17 SWITCH 585805001
18 SCREW
For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802 		817060410
19 SCREW
For 96193009706, 96191008805, 96193009705, 96191008804, 96191008803, 96193009704, 96191008802 		581329501
20 COVER 581127901
21 SCREW 532194189
22 NUT
For 96191008804, 96191008803, 96191008802, 96191008801, 96191008800, 96191008805 		532059349
23 CLIP 581928701
24 LIGHT 586723501
25 LIGHT 586723601
26 HARNESS 585868301
27 LEVER 581123902
28 MATICE 586668901
29 PRUŽINA 581329601
30 BOLT 581329702
31 BRACE 584468402
32 PODLOŽKA 587031301
33 LEVER 581241602
34 PIN.GROOVED 583473901
35 CABLE 593853401
36 RETAINING RING
For 96193009703, 96193009702, 96191008801, 96191008800, 96193009701 		812000014
37 PRUŽINA 581151201
38 CLIP
For 96191008802 		532197991
39 CABLE
For 96191008802 		588113702
40 CLIP
For 96191008802 		532197991
41 PEN
For 96191008800, 96193009701 		585808301
42 HAIR PIN COTTER
For 96191008800, 96193009701 		532423303
43 PEN
For 96191008800, 96193009701 		585808301
44 PEN
For 96191008800, 96193009701 		581329401
45 CABLE
For 96191008805 		593848401
46 CABLE
For 96193009703, 96193009702, 96191008801, For 96193009703 		587428701
47 CLIP
For 96191008802 		532197991
48 PEN
For 96191008800, 96193009701 		585808301
49 HAIR PIN COTTER
For 96191008800, 96193009701 		532423303
50 PEN
For 96191008800, 96193009701 		581329401
51 HARNESS
For 96191008800, 96193009701 		584290201
52 CLIP
For all EXCEPT 96191008800, 96193009701 		532145006
53 CABLE ASSY 581680302
54 PEN
For 96191008800, 96193009701 		581329401
55 PEN 877100812
56 HAIR PIN COTTER
For 96191008800, 96193009701 		532423303
57 CLIP 584652201
58 PEN
For all EXCEPT For 96193009706, 96191008805 		587130801
59 PODLOŽKA 586682101
60 GRIP 590493601
61 FASTENER 532442250
62 CHUTE ASSY
For 96191008800, 96193009701 		532444041
63 DEFLECTOR
For 96191008800, 96193009701 		532184113
64 DUMMY PART
For all EXCEPT 96191008800, 96193009701, DEFLECTOR 		900000002
65 DUMMY PART
For all EXCEPT 96191008800, 96193009701, DEFLECTOR 		900000002
66 DUMMY PART
For all EXCEPT 96191008800, 96193009701, DEFLECTOR 		900000002
67 DUMMY PART
For all EXCEPT 96191008800, 96193009701, DEFLECTOR 		900000002
68 CABLE
For 96193009703, 96191008802, 96193009702, 96191008801, 96191008800, 96193009701 		586961501
69 PEN
For 96191008800, 96193009701 		581329401
70 PEN
For 96191008800, 96193009701 		585808301
71 HAIR PIN COTTER
For 96191008800, 96193009701 		532423303
72 KRYT
For 96191008805 		593622201
73 SPRING
For 96191008804, 96191008803, 96191008802, 96191008801, 96191008800, 96191008805 		532435616
74 MATICE
INCLUDED IN BAG OF PARTS 		585691401
75 BOLT
For 96193009703, 96193009702, 96191008801, INCLUDED IN BAG OF PARTS 		585832001
76 MATICE
For 96191008800, 96193009701, INCLUDED IN BAG OF PARTS 		585691501
77 PODLOŽKA
For all EXCEPT 96193009703, 96193009702, 96191008801, 96191008800, 96193009701, INCLUDED IN BAG OF PARTS 		501417401
78 BOLT
For 96193009703, 96193009702, 96191008801, INCLUDED IN BAG OF PARTS 		585832001
79 PRUŽINA
For 96191008800, 96193009701, INCLUDED IN BAG OF PARTS 		532184505
81 CABLE
For 96191008800, 96193009701 		581124201
123 DECAL
For 96193009703, 96191008802, 96193009702, 96191008801 		532428677
