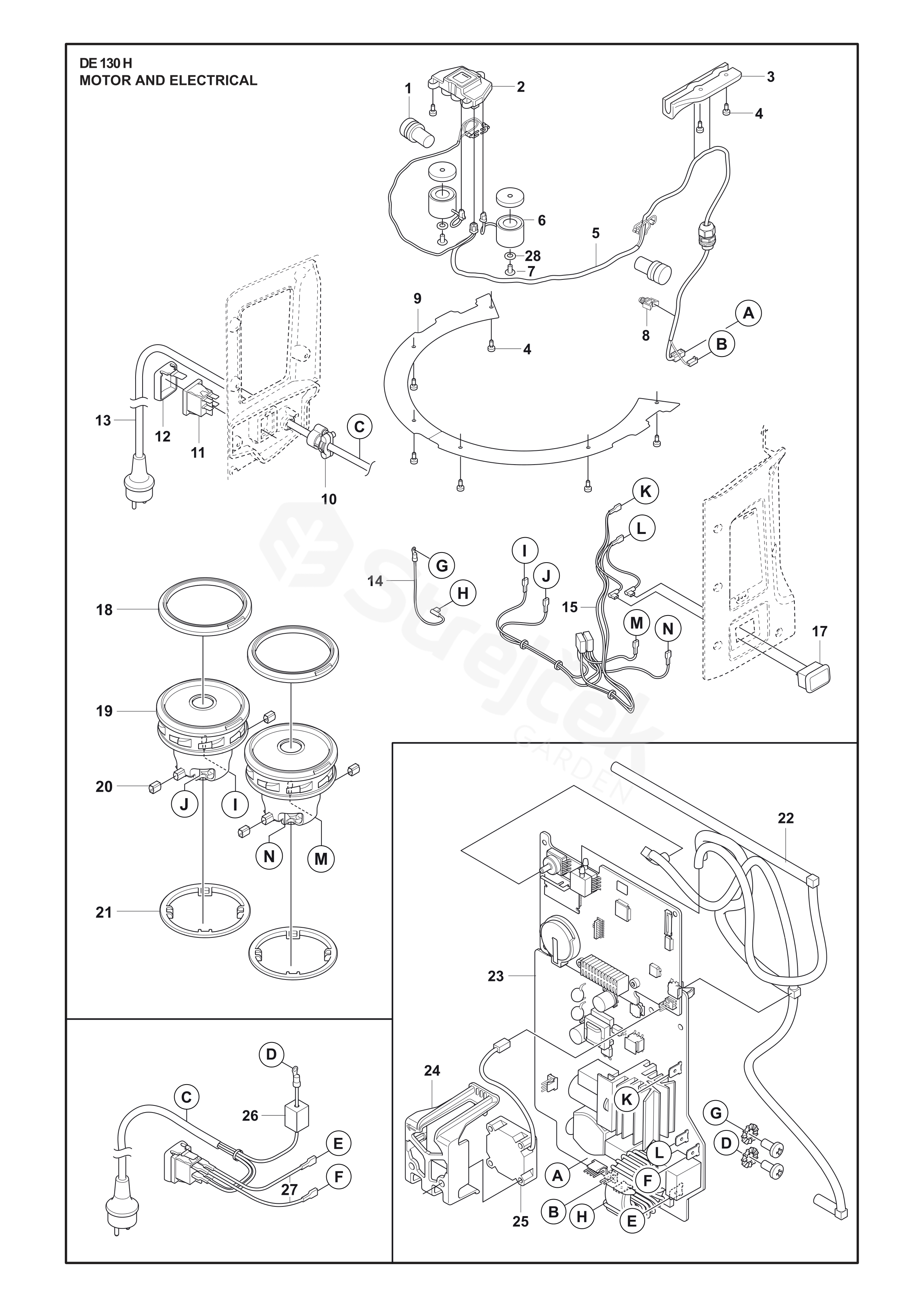

Spare parts > Husqvarna > Slurry and Dust Extraction Equipment > DE 130 H DE 130 H > ELECTRICAL
Back to
ELECTRICAL
DE 130 H DE 130 H (970519501 - )
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For DE 130 H
1 LAMP 546181801
2 CONTROL UNIT 546492602
3 CLAMP 547770101
4 SCREW ITXSCT 599608302
5 HARNESS 537563701
6 MAGNET 546203301
7 SCREW 547875801
8 CLIP 546492001
9 COVER 546209501
10 CABLE GROMMET 531391703
11 SWITCH 529679901
12 LID 534149101
13 POWER CORD
KSA 16A (blue) 		599249310
14 WIRE
grounding, yellow/green 		529620801
15 WIRING ASSY 547044201
17 HOUR METER 599589201
18 SEALING RING 599298801
19 MOTOR
230V 		546114801
20 BRUSH KIT
230V 		536507501
21 SEALING RING 546720801
22 HOSE KIT 536478001
23 PRINTED CIRCUIT ASSY 599819905
24 BRACKET 546330601
25 FAN 531070001
26 FERRITE CORE 531131401
27 WIRE 546916701
28 PODLOŽKA 734116301
