Spare parts > Husqvarna > ICE AUGERS > 9-26 9-26, 1997-10 > CONTROL PANEL & DISCHARGE CHUTE
Back to

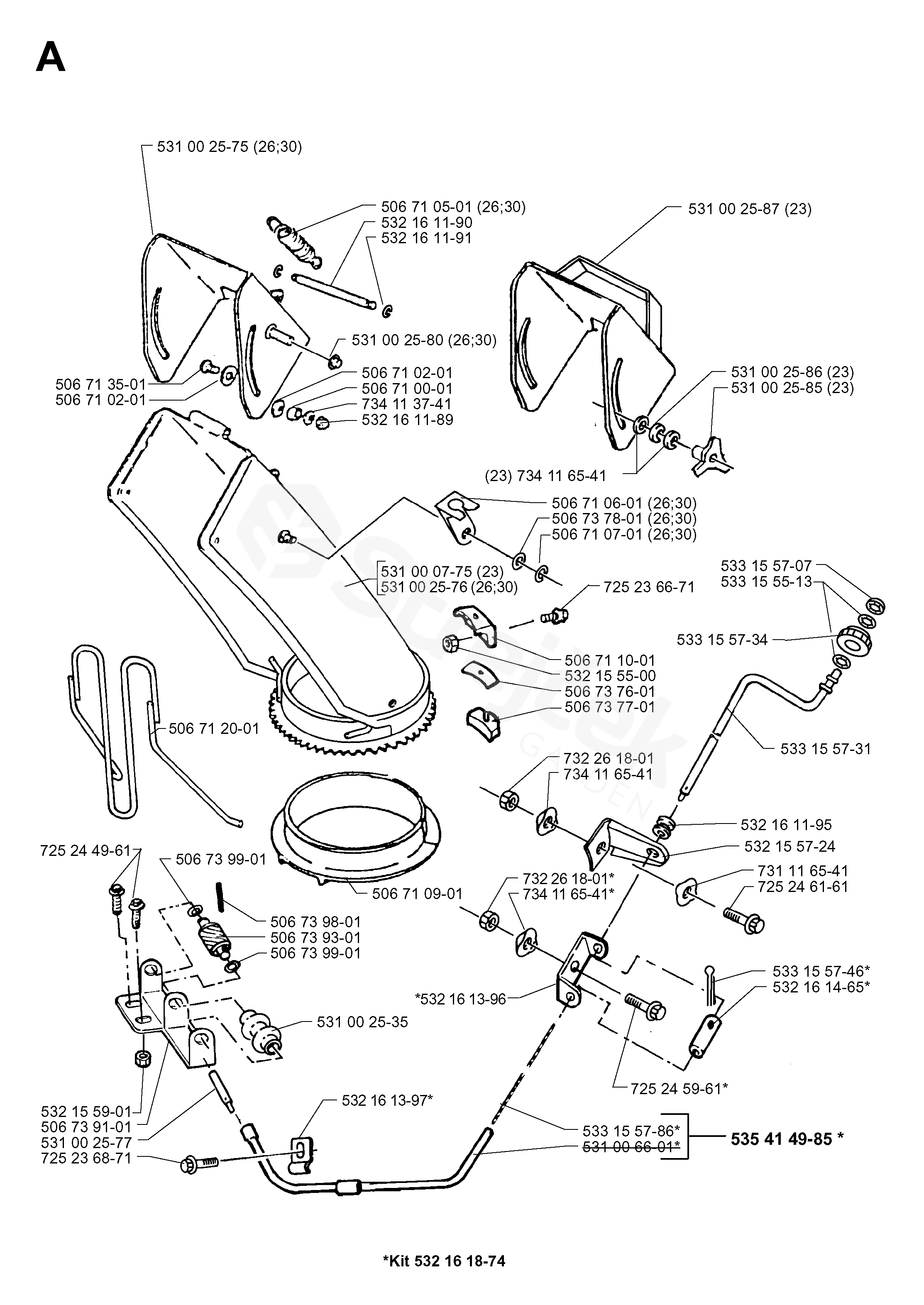

CONTROL PANEL & DISCHARGE CHUTE
9-26 9-26, 1997-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 9-26, 1997-10
506710001 SLEEVE 506710001
506710201 FLANGE 506710201
506710501 SPRING
26 		506710501
506710601 BRACKET
26 		506710601
506710701 SNAP RING
26 		506710701
506710901 BUSHING 506710901
506711001 HOLDER 506711001
506712001 GUARD 506712001
506713501 SCREW 506713501
506737601 SPACER 506737601
506737701 WASHER 506737701
506737801 WASHER
26 		506737801
506739101 BRACKET 506739101
506739301 SCREW 506739301
506739801 PIN RETAINING SCREW 506739801
506739901 WASHER 506739901
531000775 CHUTE
23 		531000775
531002535 PROTECTOR 531002535
531002575 DEFLECTOR
26 		531002575
531002576 CHUTE
26 		531002576
531002577 SHAFT 531002577
531002580 RETAINER
26 		531002580
531002585 KNOB
23 		531002585
531002586 WASHER
23 		531002586
531002587 DEFLECTOR
23 		531002587
532155500 NUT 532155500
532155724 BRACKET 532155724
532155901 NUT 532155901
532161189 NUT 532161189
532161190 PIN RETAINING SCREW 532161190
532161191 RETAINING RING 532161191
532161195 BUSHING 532161195
532161396 BRACKET
KIT 532 16 18-74 		532161396
532161397 CLIP
KIT 532 16 18-74 		532161397
532161465 SHELL
KIT 532 16 18-74 		532161465
533155513 WASHER 533155513
533155707 HUB CAP 533155707
533155731 KRANK 533155731
533155734 WASHER 533155734
533155746 PIN RETAINING SCREW
KIT 532 16 18-74 		533155746
533155786 FLEX SHAFT KIT 532 16 18-74
KIT 532 16 18-74 		533155786
535414985 SHAFT KIT 532 16 18-74
KIT 532 16 18-74 		535414985
725236671 SCREW EHHM 725236671
725236871 SCREW EHHM 725236871
725244961 SCREW EHHFT 725244961
725245961 SCREW EHHFT
KIT 532 16 18-74 		725245961
725246161 SCREW EHHFT 725246161
731116541 731116541
732261801 HEXAGON LOCKING NUT
KIT 532 16 18-74 		732261801
734113741 PODLOŽKA 734113741
734116541 PODLOŽKA
KIT 532 16 18-74 		734116541
