Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
TRACTORS/RIDE MOWERS
>
GTH3052 TF GTH3052 TF, 96041026501, 2012-01
>
CHASSIS & ENCLOSURES
Back to
GTH3052 TF
GTH3052 TF, 96041026501, 2012-01
CHASSIS & ENCLOSURES
GTH3052 TF
GTH3052 TF, 96041026501, 2012-01

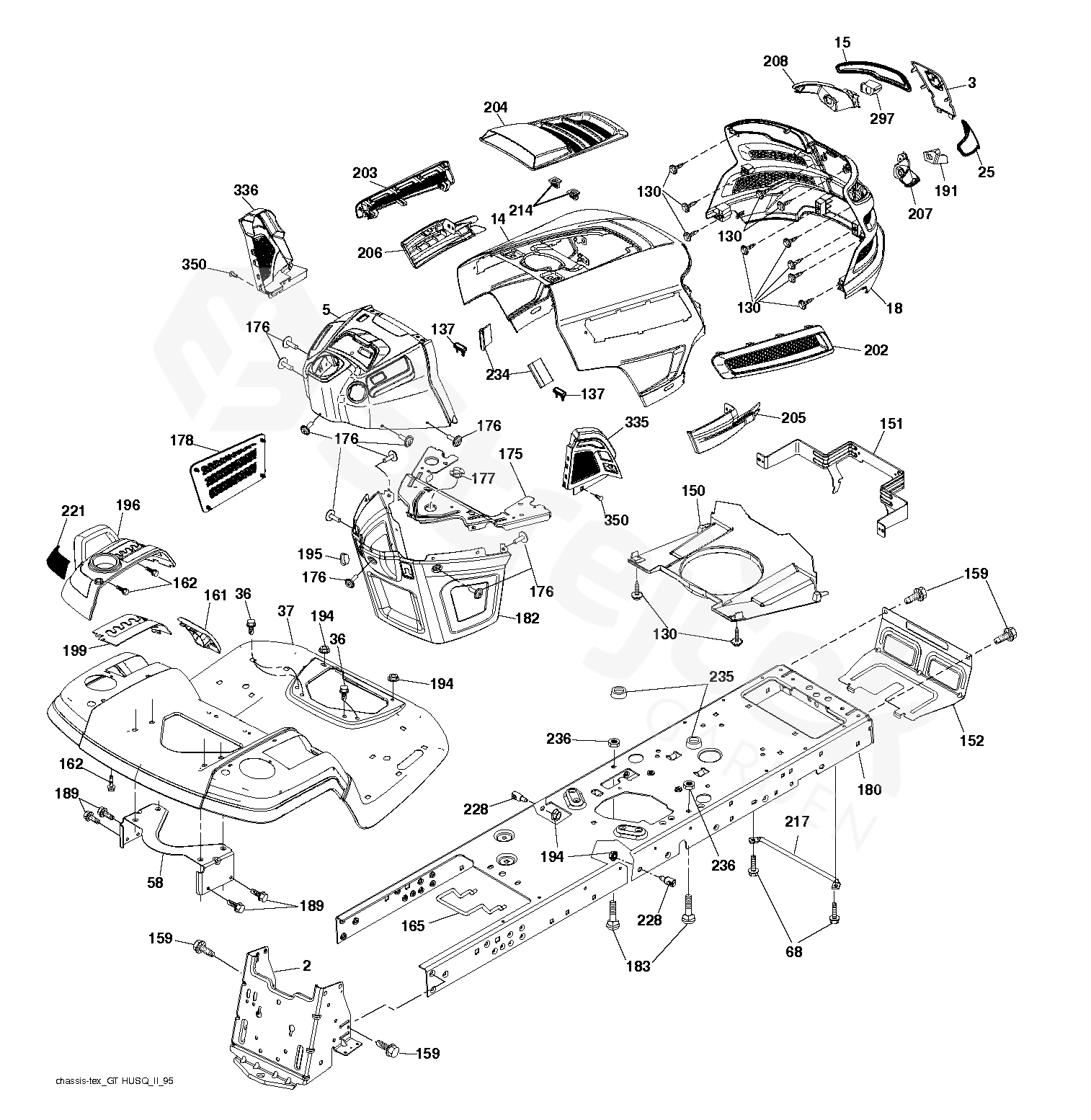

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
GTH3052 TF, 96041026501, 2012-01
2
DRAW BAR
580434401
3
LOGOTYPE
532439752
5
DASH
532437471
14
HOOD
532441177
15
LENS
532439733
18
GRILLE
532437762
25
LENS
532443385
36
SCREW
817060512
37
FENDER
532441208
58
BRACKET
532194314
68
SCR5/16-18X1/2 SELFTAP ZN SPEC
817490508
130
SCREW
532416358
137
DAMPING PIECE
532407590
150
AIR DUCT
532439774
151
BRACKET
532436670
152
SHIELD
532194329
159
SCREW
817000612
161
CONSOLE
532439929
162
SCREW
532142432
165
SUPPORT
532194330
175
CROSS MEMBER
532196304
176
SCREW
532400776
177
BUSHING
532195227
178
NET
532199782
180
CHASSIS
532445559
182
DASH
532406859
183
BOLT
874520520
189
SCREW
817000512
191
INSERT
532437455
194
MATICE
873900500
195
TROU*RPL.PAR 532401556428
532404137
196
CONSOLE
532439674
199
PLATE
532198259
202
COVER
532439728
203
COVER
532439727
204
COVER
532435714
205
SKIRT
532439730
206
SKIRT
532439729
207
CUP
532439734
208
CUP
532439735
214
CLIP
532199145
217
ROD
532409167
221
LENS
532198909
228
ŠROUB
532195161
234
DAMPING PIECE
532404742
235
1/4-20X3/4 CARR BLT
532406129
236
MATICE
873930500
297
INSERT
532437456
335
COVER
532448204
336
COVER
532445309
350
CLIP
532445143
GUARD KIT ASSEMBLY-BRUSH
532424918
