Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > GTH3052 TF GTH3052 TF, 96041026501, 2012-01 > ENGINE
Back to

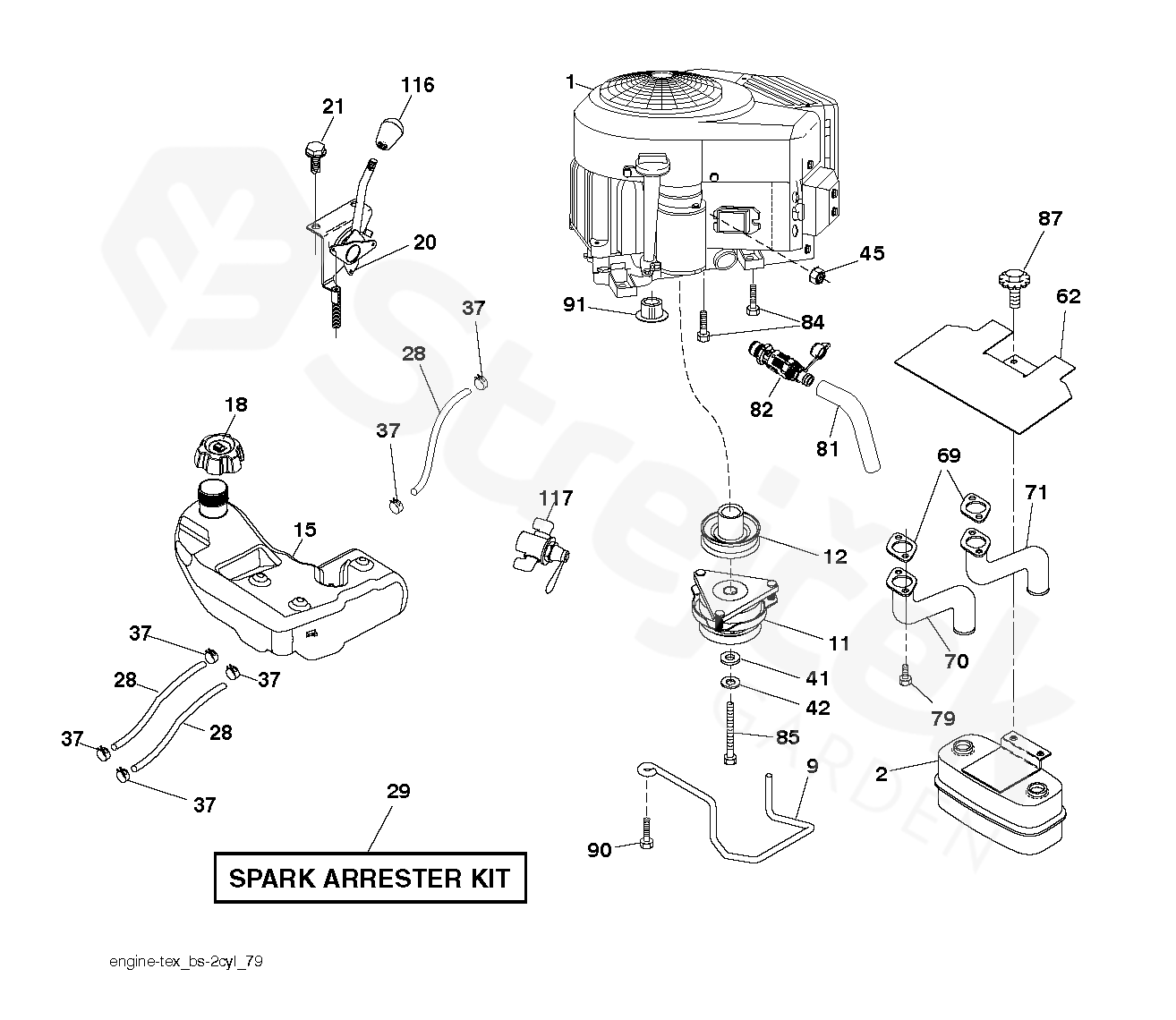

ENGINE
GTH3052 TF GTH3052 TF, 96041026501, 2012-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GTH3052 TF, 96041026501, 2012-01
1 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
ENGINE B&S MODEL NO. 49M877-5598-G5 (448325) 		000000000
2 MUFFLER 532149723
9 INSERT REFLECTIVE LH 532408667
11 CLUTCH 532179335
12 PULLEY 532194343
15 TANK FUEL 532422804
18 HUB CAP 532439645
20 CONTROL THROTTLE/CHOKE 532424340
21 SCREW 532416358
28 FULE LINE 532142158
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
41 WASHER 532126197
42 WASHER 810040700
45 MATICE 873510400
62 SHIELD 532434017
69 GASKET 532165391
70 TUBE 581881101
71 TUBE 581881001
79 SCREW 532183906
81 TRUBKA 532148456
82 PLUG 532428287
84 SCREW 817060620
85 BOLT 532179953
87 BOLT 532198239
90 SCREW 817000616
91 BUSHING 532187495
116 KNOB - SHIFT 539132624
117 VALVE FUEL RESERVE 532420828
