Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > CTH151 T CTH151 T, 96061034301, 2013-08 > ENGINE
Back to

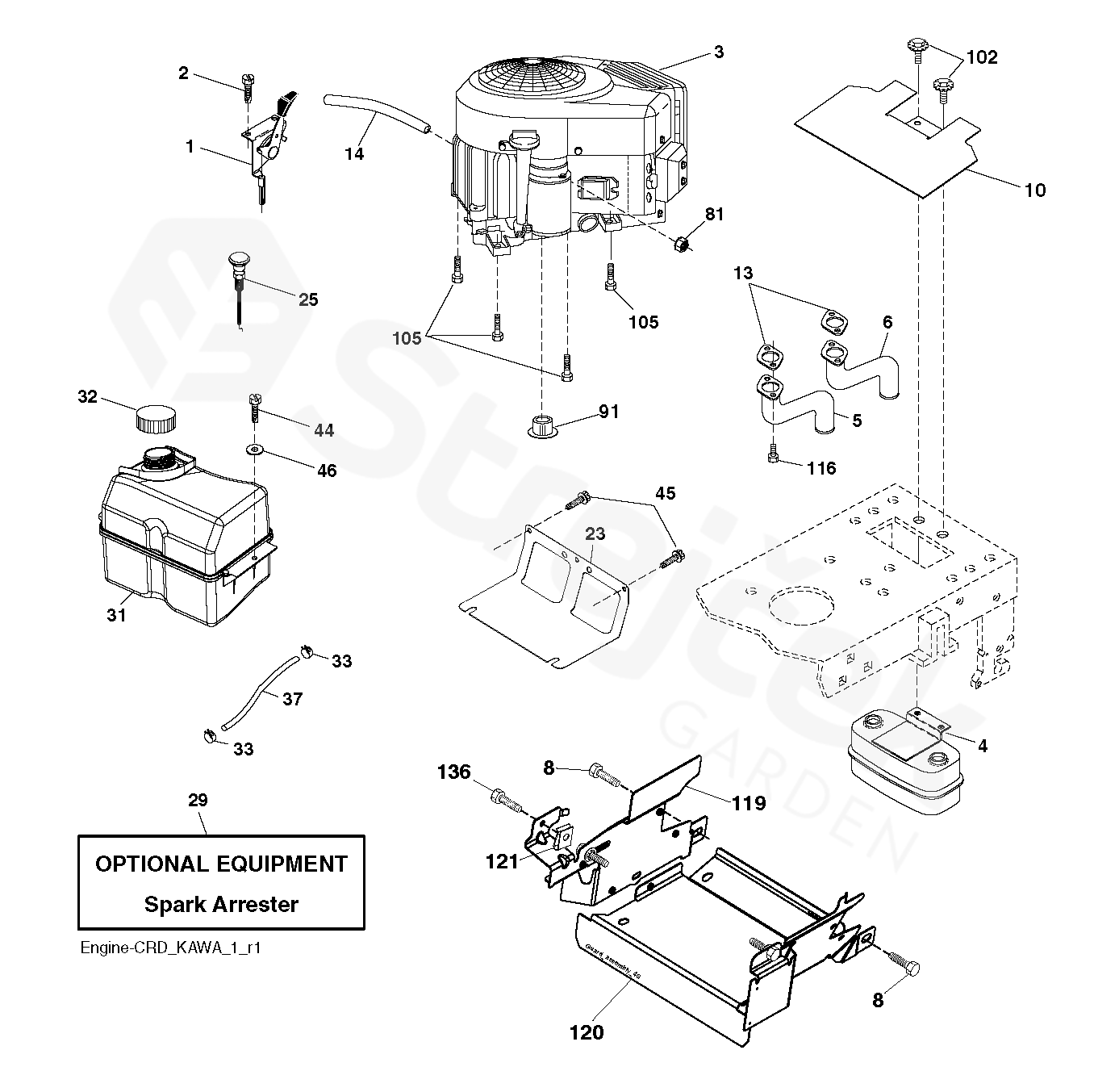

ENGINE
CTH151 T CTH151 T, 96061034301, 2013-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CTH151 T, 96061034301, 2013-08
1 THROTTLE CONTROL 532190454
2 SCREW 817720408
3 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
ENGINE KAWA MODEL NO. FS481V-CS53 (445365) 		000000000
4 MUFFLER 532149723
5 EXHAUST 532424765
6 EXHAUST 532424766
8 BOLT 532171877
10 SHIELD 532434017
13 MUFFLER GASKET 532178151
14 TRUBKA 532148456
23 HEAT SHIELD 532169837
25 CHOKE CONTROL 532191717
29 SPARK ARRESTER KIT 532137180
31 FUEL TANK 532430825
32 HUB CAP 532430220
33 HADICOVÁ SVĚRKA 532123487
37 HADICE 532137040
44 SCREW 817670412
45 SCREW 817000612
46 PODLOŽKA 819091416
81 MATICE 873510400
91 BUSHING 532187495
102 SCREW 817000512
105 SCREW 817120616
116 NUT HEX FLANGE TOPLOCK 532184362
119 * LENKRAD 532199768
120 GUARD 532199767
121 NUT 532196688
136 SCREW 532137729
