Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > CTH194 CTH194, 96051009300, 2013-10 > ENGINE
Back to

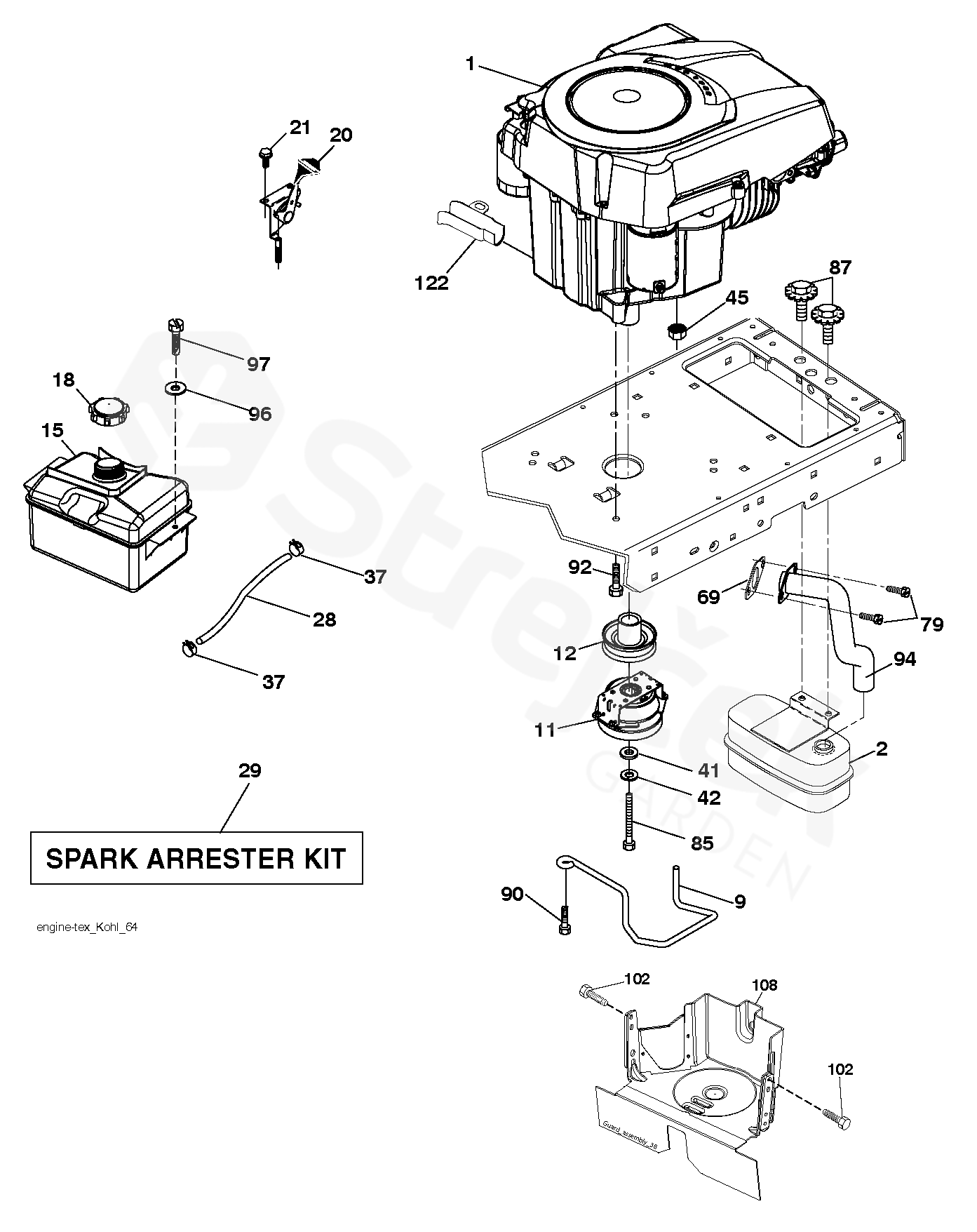

ENGINE
CTH194 CTH194, 96051009300, 2013-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CTH194, 96051009300, 2013-10
1 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
ENGINE B&S MODEL NO. SV591-3210 (585507601) 		000000000
2 MUFFLER 580532301
9 KEEPER 584908001
11 CLUTCH 587241601
12 PULLEY 532405097
15 TANK 581289901
18 HUB CAP 532430220
20 CONTROL 532183897
21 SCREW 532416358
28 HADICE 532137040
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
41 WASHER 532126197
42 WASHER 810040700
45 MATICE 873510400
69 GASKET 532185909
79 SCREW 532192334
85 BOLT 532179953
87 BOLT 537171877
90 SCREW 817000616
92 SCREW 817120616
94 TUBE 583955301
96 PODLOŽKA 819091416
97 SCREW 817670412
102 SCREW 817060516
108 COVER 532423041
122 EXTENSION PIPE 532421922
