Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > GTH220 GTH220, 954830167A, 1995-08 > ELECTRICAL
Back to

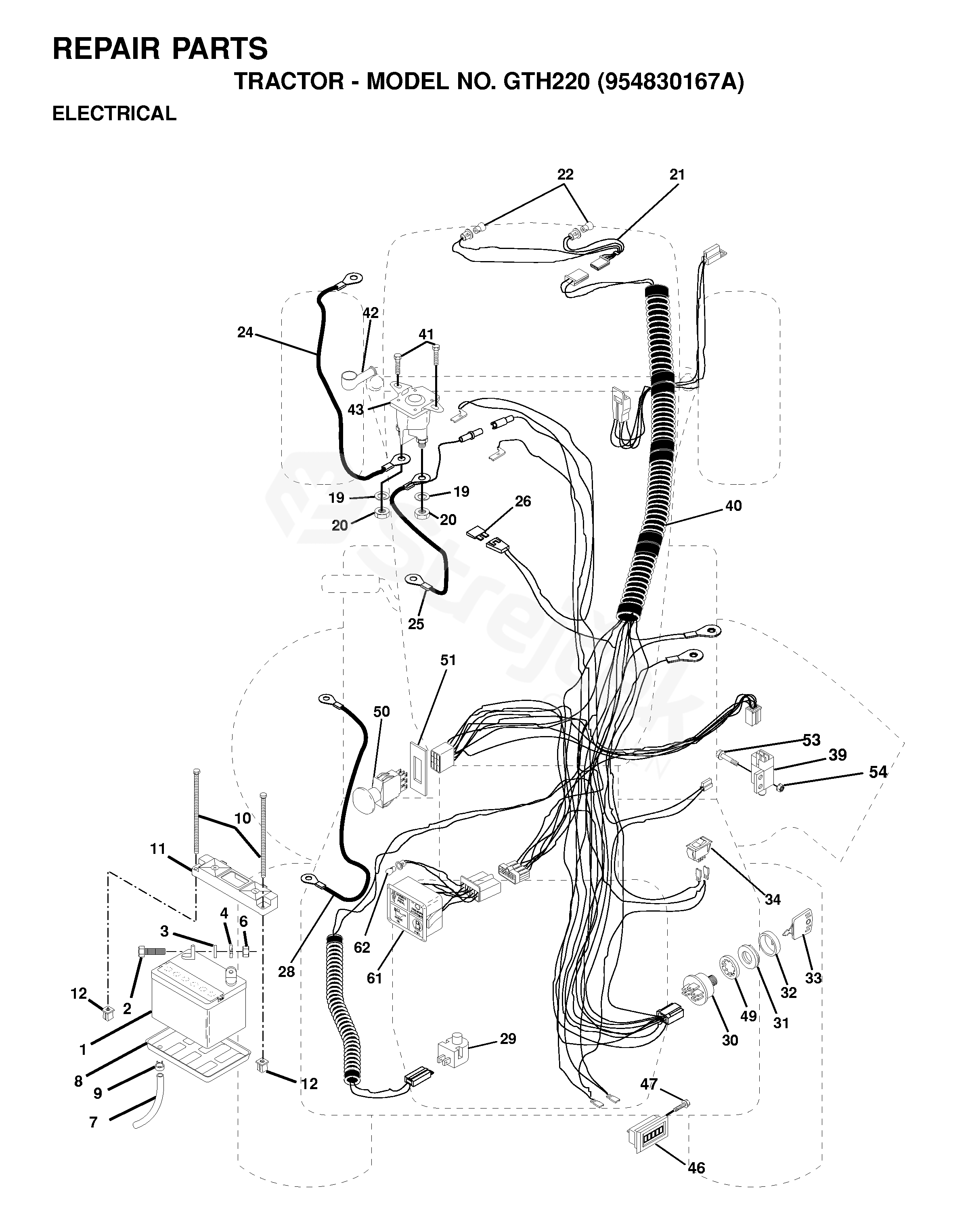

ELECTRICAL
GTH220 GTH220, 954830167A, 1995-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For GTH220, 954830167A, 1995-08
1 BATTERY 532144927
2 BOLT 874760412
3 WASHER 810040400
4 WASHER 819091016
6 NUT 873220400
7 HOSE 532007697
8 BATTERIE TRAY 532124886
9 CLAMP 532109596
10 BOLT 532145211
11 HOLDER 532145209
12 NUT 532145769
19 WASHER 810090400
20 NUT 873350400
21 HARNESS 532136850
22 BULB 532004152
24 CABLE 532004014
25 CABLE 532146686
26 FUSE 532108824
28 CABLE 532006408
29 SWITCH 532121305
30 SWITCH 532144921
31 NUT 532140400
32 PROTECTOR 532141226
33 KEY 532140401
34 SWITCH 532110712
39 SWITCH 532109553
40 HARNESS 532147341
41 SCREW 817720408
42 COVER 532131563
43 SOLENOID 532145673
46 HOUR METER 532110940
47 SCREW 817011008
49 WASHER 811151000
50 SWITCH 532140404
51 FRAME 532140405
53 SCREW 871031008
54 NUT 873951000
61 HEADLIGHT 532138101
62 BULB 532110143
