Husqvarna
>
TRACTORS/RIDE MOWERS
>
GTH2554 XP GTH2554 XP, HAU25H54B, 954170228, 2004-09
>
MOWER DECK / CUTTING DECK
Back to
GTH2554 XP
GTH2554 XP, HAU25H54B, 954170228, 2004-09

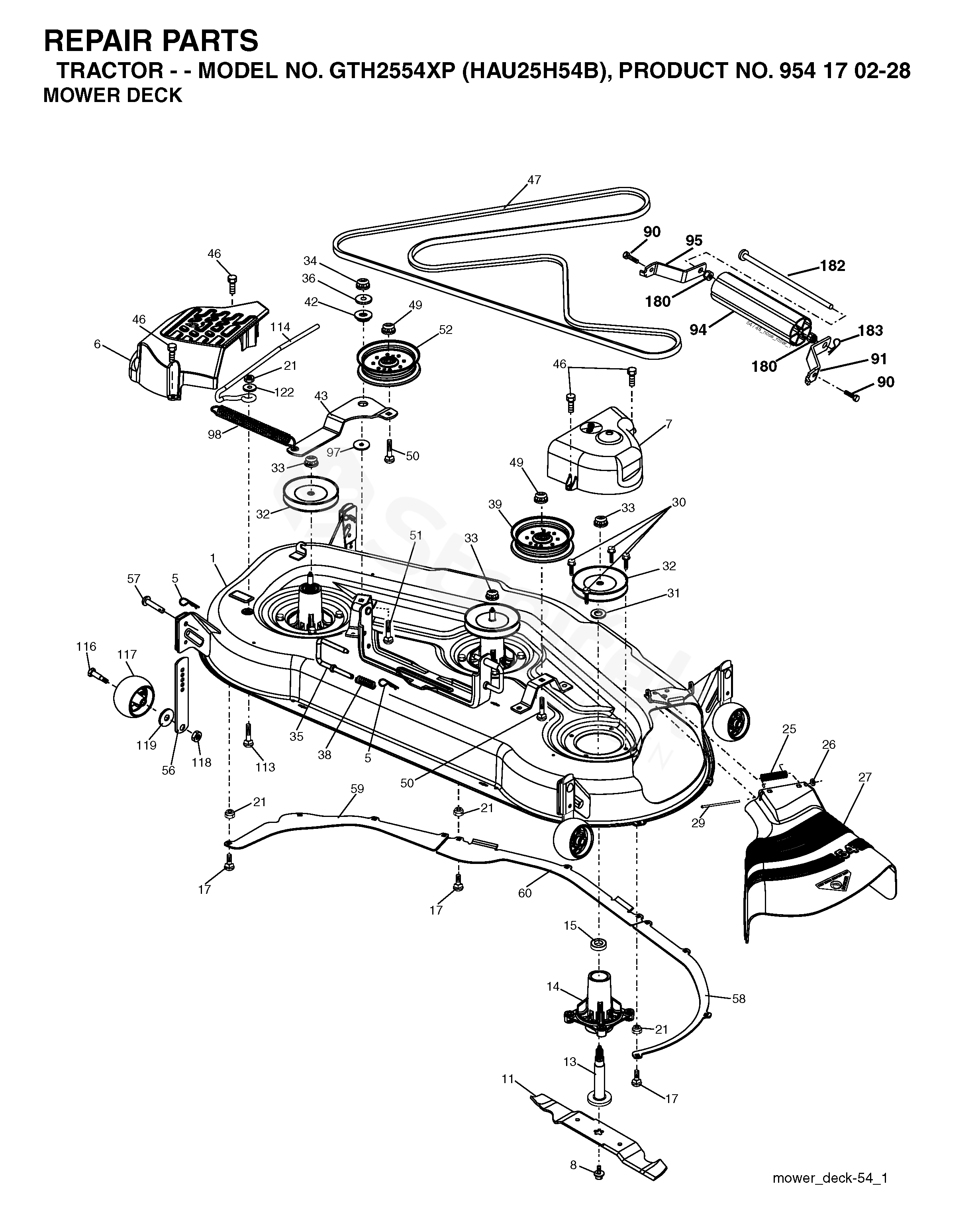

MOWER DECK / CUTTING DECK
GTH2554 XP
GTH2554 XP, HAU25H54B, 954170228, 2004-09
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
GTH2554 XP, HAU25H54B, 954170228, 2004-09
1
DECK WELDMENT
532187295
5
RETAINING RING
532124670
6
COVER
532187297
7
COVER
532188187
8
BOLT
532174365
11
BLADE
532187254
13
SHAFT ASM MANDREL
532187291
14
BEARING HOUSING
532187281
15
BEARING
532110485
17
BOLT
872110505
21
MATICE
873680500
25
SPRING
532178102
26
MATICE
532110452
27
DEFLECTOR
532188938
29
HRÍDEL
532131491
30
SCREW
532173984
31
PODLOŽKA
532187690
32
PULLEY
532177865
33
NUT
532178342
34
MATICE
873680600
35
PIN SUSPENSION REAR
532188635
36
PODLOŽKA
819131316
38
SPRING COMPRESSION PULL
532188657
39
IDLER PULLEY
532187284
42
SPACER
532165723
43
ARM IDLER
532187278
46
SCREW
532137729
47
V-BELT
532191273
49
MATICE
873900600
50
BOLT
872110616
51
BOLT
872110610
52
IDLER PULLEY
532188460
56
BAR
532155986
57
PIN RETAINING SCREW
532156941
58
BAFFLE
532187342
59
BAFFLE LEFT
532187344
60
BAFFLE CENTER 54" MOWER
532187607
90
BOLT
874760516
91
BRACKET
532180535
94
ROLLER
532176066
95
BRACKET
532180534
97
PODLOŽKA
819133210
98
SPRING CLUTCH DRIVE
532187282
113
BOLT
872110508
114
ROD TENSION RELIEF
532187556
116
BOLT
532184219
117
WHEEL
532133957
118
MATICE
873930600
119
PODLOŽKA
819121414
122
BUSHING
532187557
180
BRACKET
873800500
182
ROD ROLLER NOSE
532179127
183
CLIP
532163552
DECK
532188377
