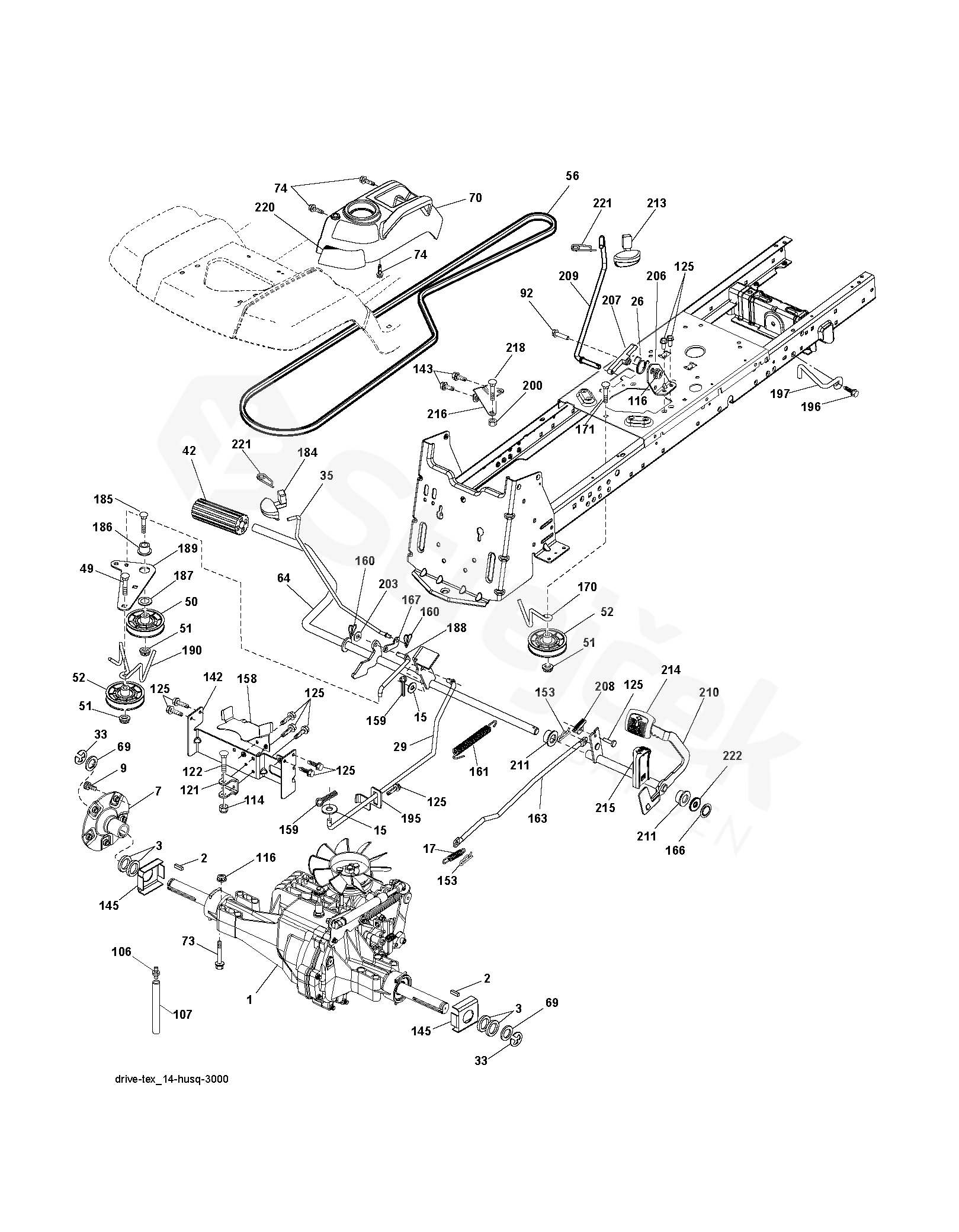

GTH260 GTH260 TWIN, 96041004500, 2007-02

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For GTH260 TWIN, 96041004500, 2007-02

2	KEY	532007070
3	WASHER	532007563
7	WHEEL	532199837
9	BOLT	532140080
15	PODLOŽKA	819131316
17	SPRING	532197296
26	SPRING	532199679
29	ROD	532197269
33	E-CLIP	812000053
35	ROD	532199591
42	PEDAL RUBBER	532123533
49	BOLT	872110614
50	PULLEY	532194327
51	MATICE	873900600
52	PULLEY	532194326
56	BELT	532165813
64	HRÍDEL	532197865
69	PODLOŽKA	532123800
70	PANEL	532400530
73	BOLT	874490548
74	SCREW	532142432
92	BOLT	874760520
106	VALVE	532142917
107	TUBE	532410481
114	BRACKET	873800500
116	MATICE	873900500
121	CHAPPE DE FIXATION	532175611
122	BOLT	872010520
125	SCREW	817000512
142	STRAP	532404483
143	SCR5/16-18X1/2 SELFTAP ZN SPEC	817490508
145	PODLOŽKA	532163168
153	RETAINING RING	532124788
158	BELT GUIDE	532194351
159	SPLIT PIN	876020412
160	KOLÍČEK	532169484
161	SPRING	532195403
163	ROD	532197870
166	NUT	532197290
167	LATCH	532405257
170	HLÍDAČ	532194322
171	BOLT	872110616
184	CONTROL	532403118
185	BOLT	872110620
186	ROZPĚRKA	532194321
187	PODLOŽKA	819133210
188	LINK	532194323
189	DESKA	532194317
190	BELT GUIDE	532194318
195	RETAINER	532405113
196	SCREW	817000616
197	BRACKET	532199769
200	MATICE	873930500
203	PODLOŽKA	819111116
206	BRACKET	532197867
207	LATCH	532197868
208	OPĚRNÁ MISKA	532197869
209	ROD	532199592
210	ARM	532197860
211	BEARING	532120183
213	CONTROL	532403119
214	PEDAL	532401722
215	PEDAL	532401723
216	BRACKET	532196131
218	BOLT	874780520
220	LENS	532198908
221	RETAINER SPRING	532403187
222	WASHER	819212010
