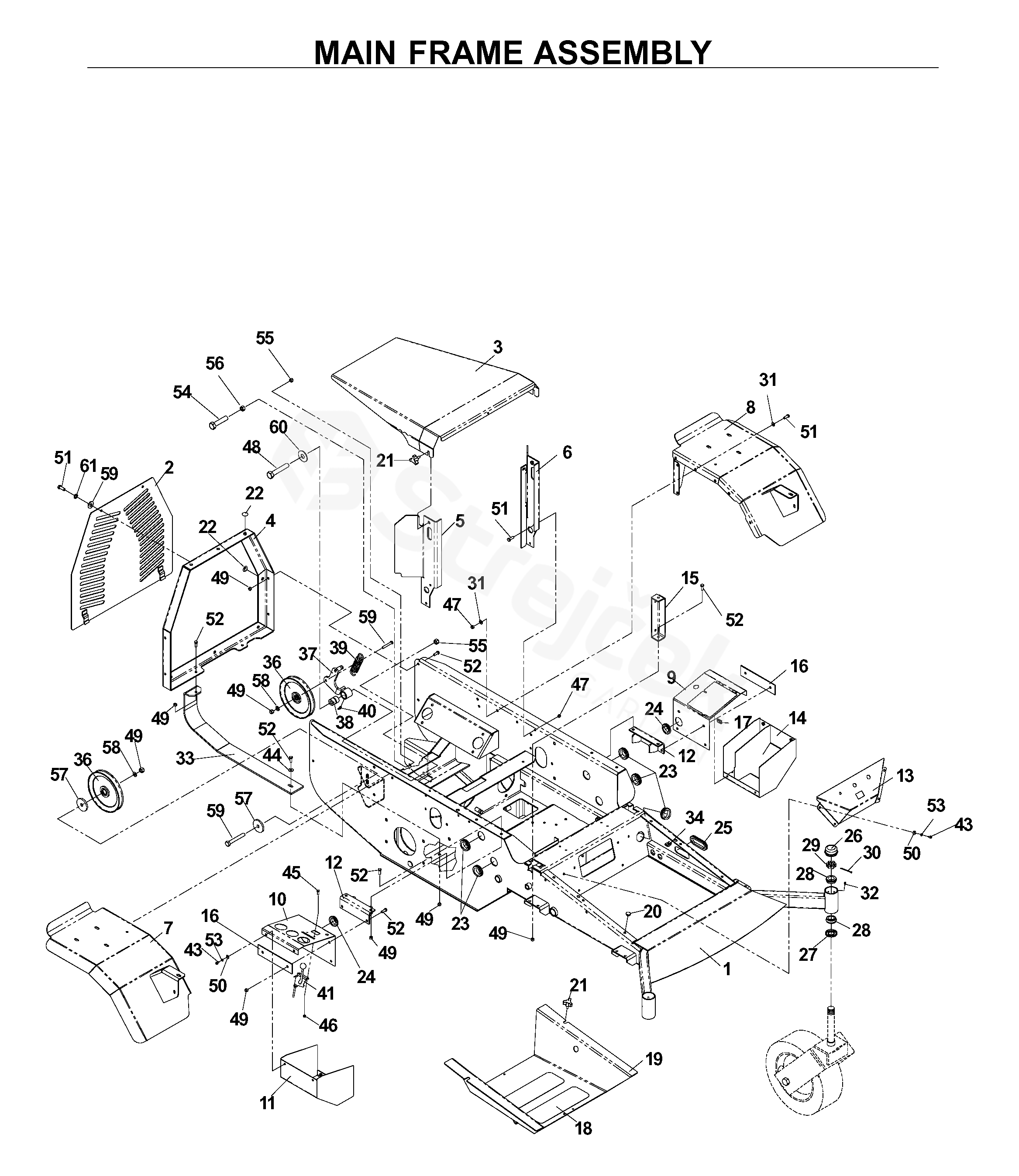

BZ 6127 D BZ 6127 D, 968999218, 2003-06

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For BZ 6127 D, 968999218, 2003-06

1	FRAME	539106205
2	PANEL, BACK	539108362
3	HOOD	539107853
4	FRAME	539107847
5	SUPPORT, RIGHT	539106405
6	SUPPORT, LEFT	539106406
7	GUARD, RIGHT	539107205
8	GUARD	539107206
9	PANEL, TOP LEFT	539107781
10	BRACKET, TOP	539107778
11	BRACKET	539107776
12	BRACKET	539107788
13	BRACKET	539107669
14	BRACKET	539107791
15	SUPPORT	539108055
16	PLATE	539107867
17	LATCH	539107232
18	MAT	539977778
19	HOLDER, FLOOR	539104721
20	ABSORBER	539102587
21	KNOB	539104411
22	GROMMET	539107858
23	GROMMET	539103684
24	GROMMET	539107656
25	GROMMET	539107210
26	CAP	539102535
27	SEALING	539102851
28	BEARING	539102543
29	CASTLE NUT	539102852
30	SPLIT PIN	539102889
31	PODLOŽKA	539990188
32	NIPPLE	539101474
33	PLATE	539106300
34	CLIP	539104763
36	WHEEL	539106348
37	LEVER	539106418
38	BUSHING	539106417
39	SPRING	539103256
40	NIPPLE	539976998
41	THROTTLE WIRE	539102732
43	SCREW	539990362
44	PODLOŽKA	539990517
45	SCREW	539990411
46	NUT	539976977
47	MATICE	539990717
48	BOLT	539108346
49	END BRACKET	539976979
50	WASHER	539990598
51	SCREW	539990209
52	SCREW	539990563
53	PODLOŽKA	539990052
54	BOLT	539107026
55	NUT	539101331
56	MATICE	539990258
57	PODLOŽKA	539106504
58	WASHER	539990122
59	PODLOŽKA	539990692
60	WASHER	539990550
61	PODLOŽKA	539990187
539976856	TIE WRAP	539976856
