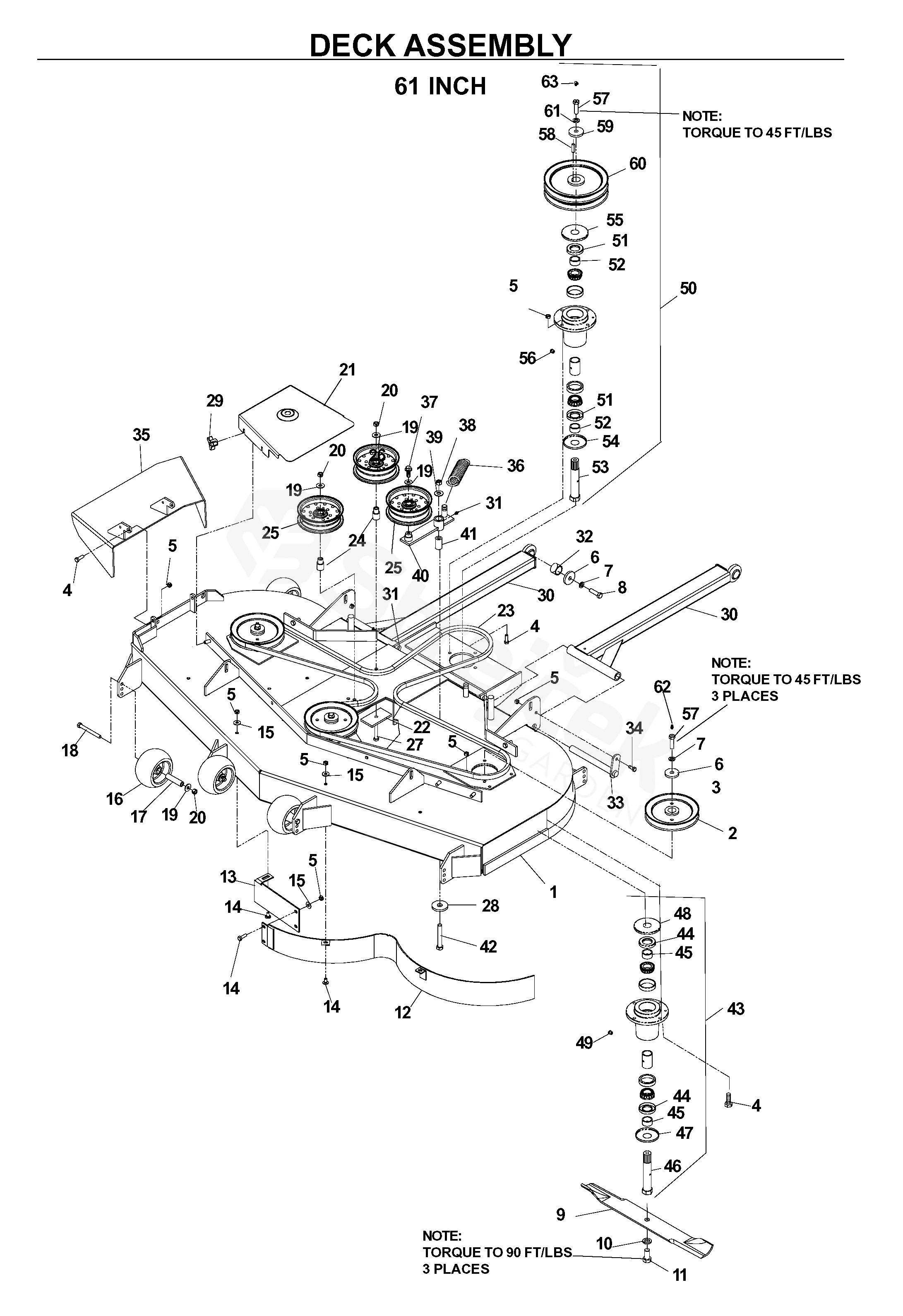

BZ 6134 D BZ 6134 D, 968999214, 2004-11

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For BZ 6134 D, 968999214, 2004-11

1	DECAL	539106217
2	PULLEY	539107278
4	SCREW	539990209
5	NUT	539990184
6	PODLOŽKA	539106504
7	PODLOŽKA	539990247
8	SCREW	539100141
9	BLADE	539101733
10	PODLOŽKA	539990333
11	SCREW	539103299
12	PROTECTOR	539105465
13	PLATE	539105461
14	BOLT	539990799
15	PODLOŽKA	539990692
16	WHEEL	539102643
17	BUSHING	539102698
18	SCREW	539102754
19	PODLOŽKA	539990517
20	MATICE	539990546
21	BELT SHIELD 61" RIGHT	539108611
22	SPACER	539103303
23	BELT	539106340
24	BUSHING	539103295
25	PULLEY	539103257
26	PULLEY	539103258
27	SCREW	539990637
28	WASHER	539102243
29	KNOB, THREE PRONG	539102070
30	ARM, LEFT	539107751
31	NIPPLE	539976998
32	SPACER	539106401
33	PIN RETAINING SCREW	539105480
34	SCREW	539976934
35	GUARD	539106512
36	SPRING	539105192
37	SCREW	539990582
38	NUT	539101331
39	WASHER	539990550
40	LEVER	539103230
41	BUSHING	539103427
42	SCREW	539103433
43	SERVICE KIT	539108773
44	SEALING RING	539108754
45	SPACER	539108758
46	MINISPINDLE	539108760
47	HUB CAP	539108449
48	HUB CAP	539108450
49	ZERK	539977326
50	SHAFT, KIT	539108768
51	SEALING RING	539108754
52	SPACER	539108758
53	SPINDLE	539108767
54	HUB CAP	539108449
55	HUB CAP	539108450
56	ZERK	539977326
57	SCREW	539101175
58	KEY	539101995
59	PODLOŽKA	539106504
60	DISC	539106346
61	PODLOŽKA	539990247
62	NIPPLE	539976998
63	NIPPLE	539912758
539108610	BELT SHIELD 61" LEFT	539108610
