Spare parts
>
Husqvarna
>
ZERO TURN: COMMERCIAL
>
LZ 6127 TKOA LZ 6127 TKOA, 968999271, 2007-04
>

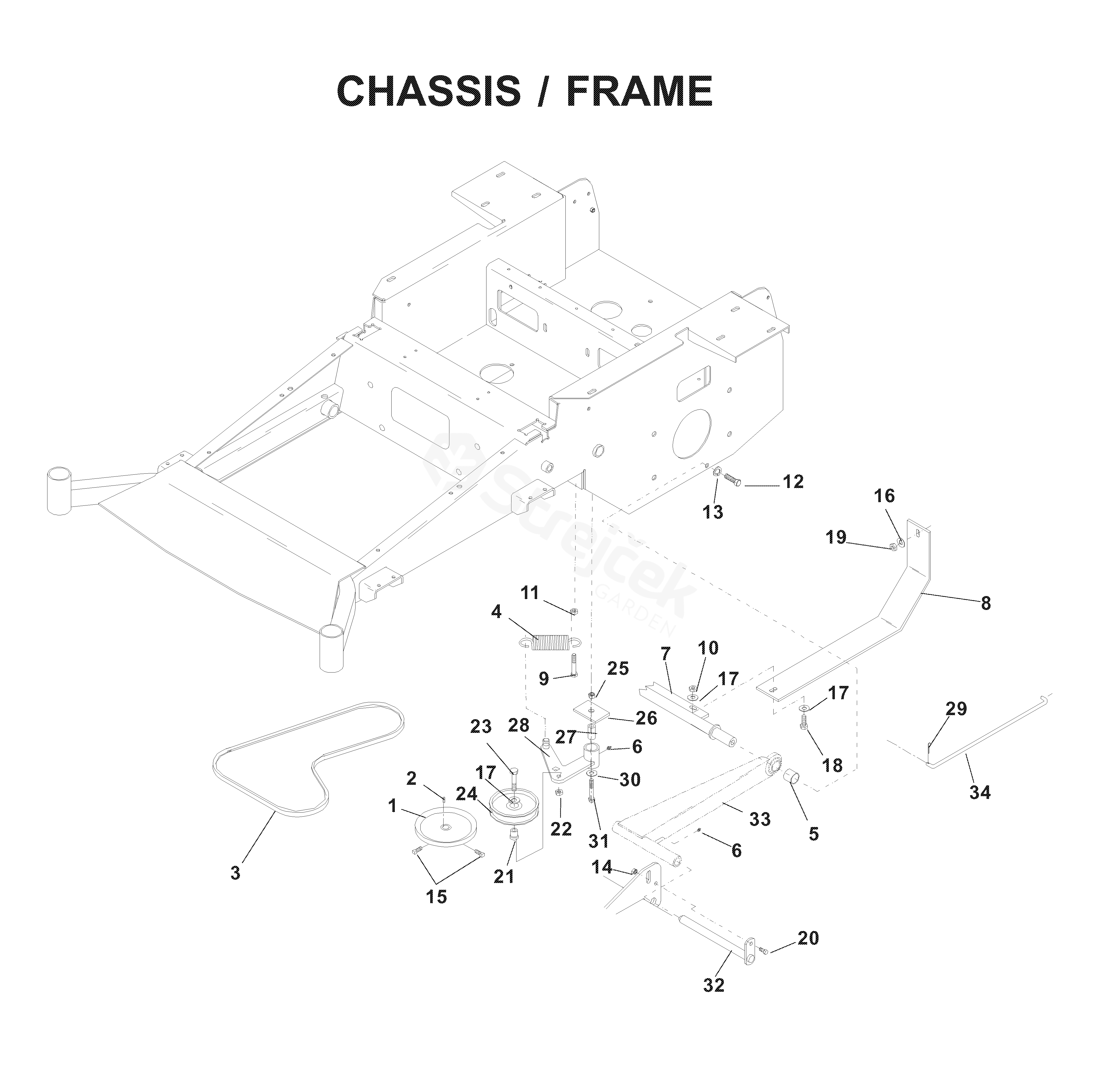

CHASSIS / FRAME
Back to
LZ 6127 TKOA
LZ 6127 TKOA, 968999271, 2007-04
CHASSIS / FRAME
LZ 6127 TKOA
LZ 6127 TKOA, 968999271, 2007-04
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LZ 6127 TKOA, 968999271, 2007-04
1
PULLEY
539101176
2
KEY
539101177
3
BELT
539104334
4
SPRING
539103256
5
SPACER
539104521
6
NIPPLE
539976998
7
SHAFT
539104332
8
PLATE
539112634
9
SCREW
539990655
10
END BRACKET
539976979
11
NUT
539990613
12
HEX SCREW 7/16-14 X 1 GR8
539105905
13
PODLOŽKA
539990247
14
MATICE
539990717
15
5/16 DIA ROLL PIN
539110631
16
PODLOŽKA
539990692
17
PODLOŽKA
539990517
18
SCREW
539990563
19
NUT
539990184
20
SCREW
539990209
21
BUSHING
539976695
22
MATICE
539990546
23
SCREW
539990730
24
PULLEY
539976688
25
NUT
539101331
26
PLATE
539102236
27
BUSHING
539103427
28
LEVER
539104388
29
PIN RETAINING SCREW
539990365
30
WASHER
539990550
31
SCREW
539103433
32
LINK
539102619
33
ROD
539104390
34
ROD
539104525
GROMMET
539105974
