Spare parts > Husqvarna > ZERO TURN: COMMERCIAL > ZTH 5223 KAA ZTH 5223 A, 968999153, 2000-06 > FRAME
Back to

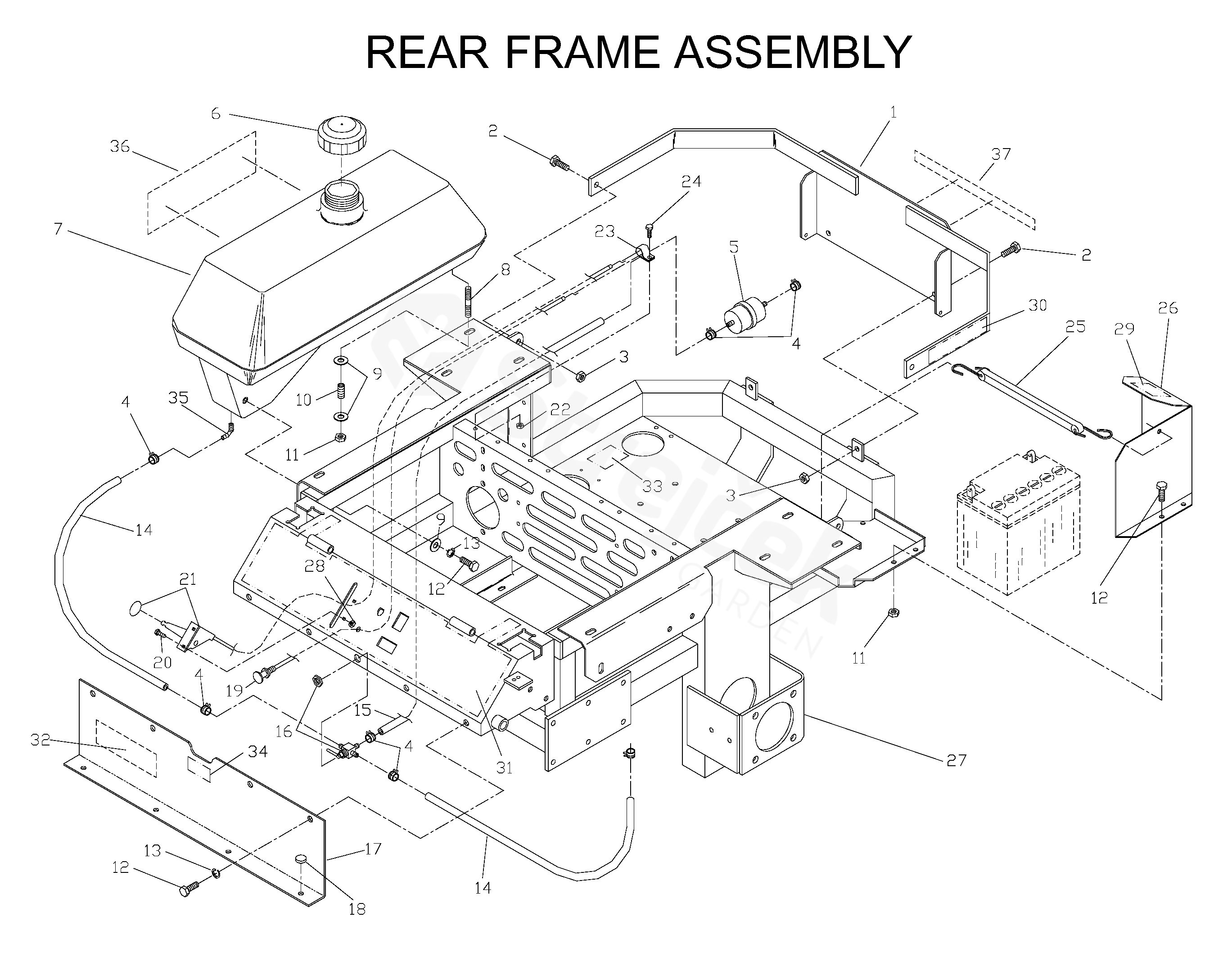

FRAME
ZTH 5223 KAA ZTH 5223 A, 968999153, 2000-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ZTH 5223 A, 968999153, 2000-06
1 DECAL 539102520
2 SCREW 539990563
3 MATICE 539990546
4 CLAMP 539912222
5 2405002
6 FUEL CAP 539914363
7 FUEL TANK 539104585
8 STUD 539102502
9 PODLOŽKA 539990188
10 SPRING 539102845
11 NUT 539990184
12 SCREW 539976934
13 PODLOŽKA 539990187
14 FUEL LINE, TANK 539102680
15 FUEL LINE, ENGINE 539102681
16 FUEL TAP 539102679
17 KICK PLATE 539104576
18 ABSORBER 539102587
19 WIRE 539102733
20 SCREW 539990411
21 THROTTLE WIRE 539102732
22 NUT 539990372
23 CLAMP 539102685
24 SCREW 539990580
25 BATTERY STRAP 539102501
26 DECAL 539102512
27 DECAL 539104570
28 NUT 539976977
29 DECAL 539101881
30 DECAL 539102669
31 CONSOLE 539104762
32 DECAL 539105071
33 DECAL 539100128
34 DECAL 539102670
35 CONNECTION 539102650
36 DECAL 539104800
37 DECAL 539104787
539104801 DECAL 539104801
539104802 DECAL 539104802
