Spare parts > Husqvarna > ZERO TURN: COMMERCIAL > ZTH 5223 KOLA ZTH5223KOLA, 968999183, 2002-10 > ENGINE
Back to

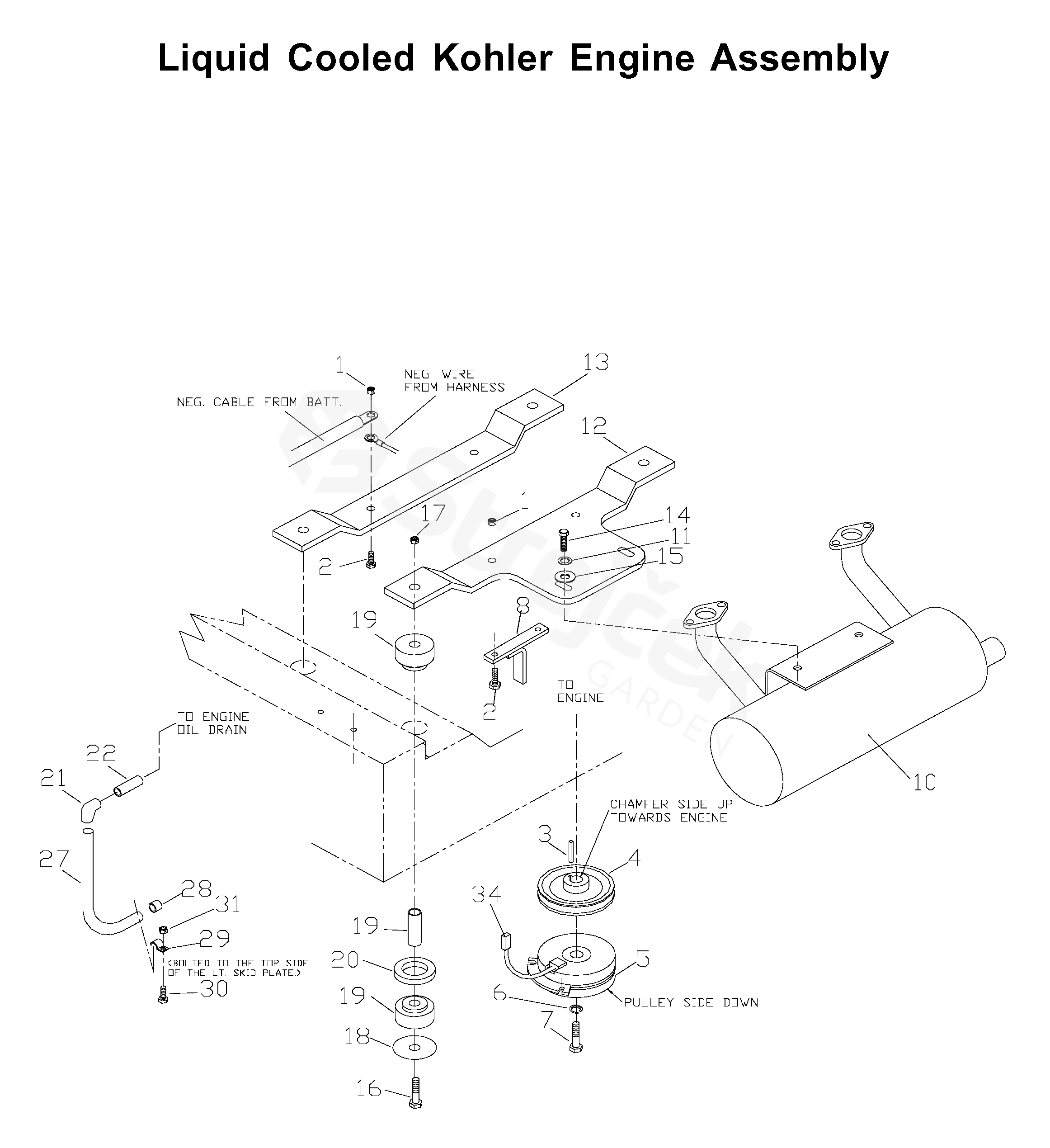

ENGINE
ZTH 5223 KOLA ZTH5223KOLA, 968999183, 2002-10
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ZTH5223KOLA, 968999183, 2002-10
1 NUT 539990184
2 SCREW 539990669
3 KEY 539100152
4 PULLEY 539106057
5 CLUTCH 539105406
6 PODLOŽKA 539990247
7 SCREW 539991120
8 5391068
9 KOHLER PIGTAIL L/C 539105300
10 MUFFLER/KOHLER GEN II 539105896
11 PODLOŽKA 539990187
12 REAR ENGINE MOUNT 539105410
13 ENGINE MOUNT 539105025
14 SCREW 539976934
15 PODLOŽKA 539990692
16 SCREW 539103433
17 NUT 539101331
18 WASHER 539104959
19 INSULATOR 539104958
20 SPACER 539105034
21 90DEG.ELBOW 3/8NPT 539105072
22 3/8 NPT.1.5 PIPE 539105073
23 GUAGE, TEMPERATURE 539105246
24 BRACKET-TEMP GAUGE 539105248
25 HARNESS 539105247
26 CAPSCREW 539976937
27 OIL DRAIN HOSE 539101362
28 DRAIN CAP 539101364
29 CLAMP 539101363
30 SCREW 539990580
31 NUT 539990761
32 WIRE 539102733
33 CLAMP 539102685
34 CLUTCH HARNESS 539105637
