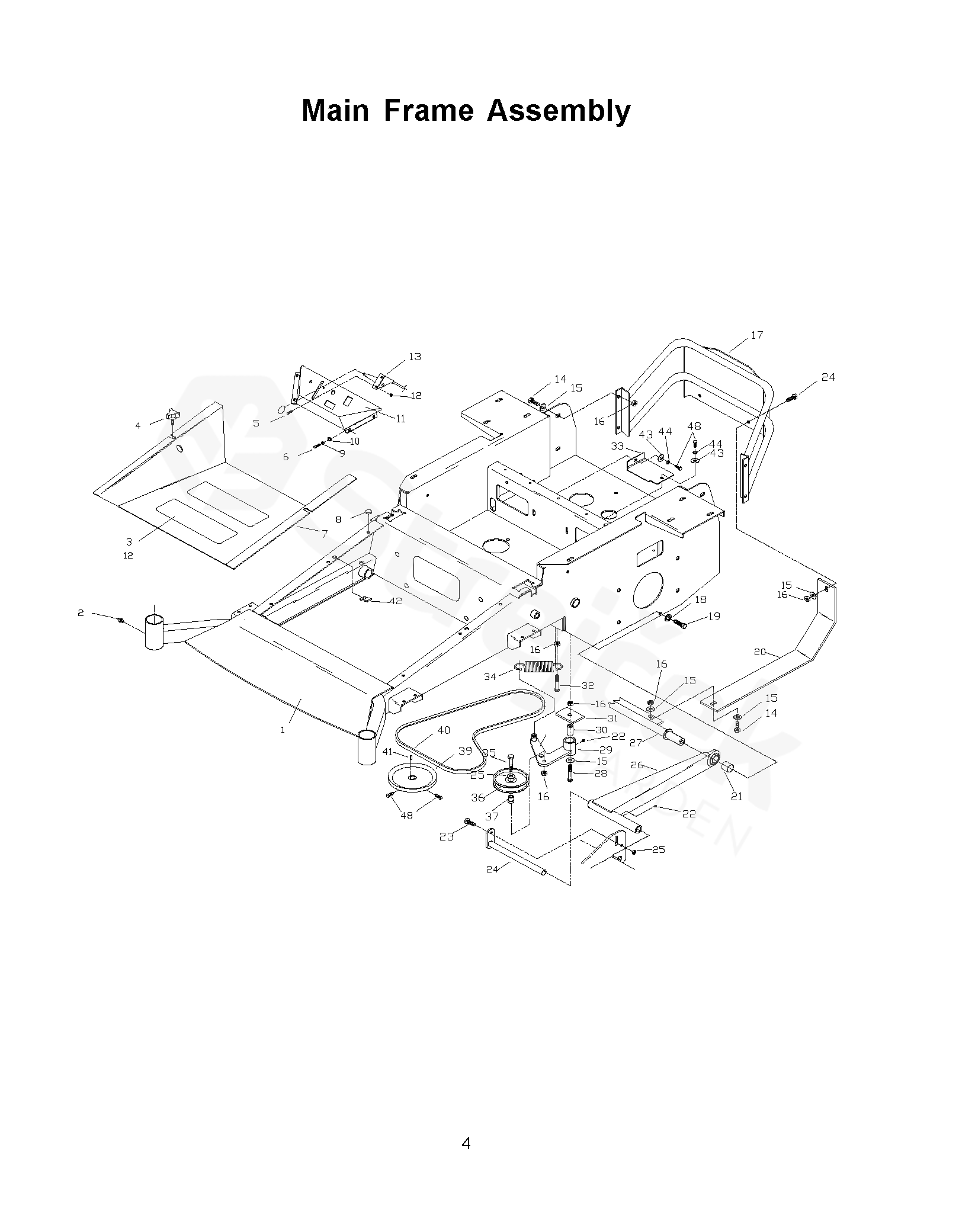

Spare parts - Partlist - ZTH 6127 KOB ZTH6127KOB, 968999224, 2004-09 - CHASSIS / FRAME

Everything for your machines

ZTH 6127 KOB ZTH6127KOB, 968999224, 2004-09

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ZTH6127KOB, 968999224, 2004-09

1	FRAME 52” & 61”	539105886
2	NIPPLE	539101474
3	MAT	539977778
4	KNOB	539104411
5	SCREW	539990411
6	SCREW	539990362
7	HOLDER, FLOOR	539104721
8	ABSORBER	539102587
9	PODLOŽKA	539990052
10	WASHER	539990598
11	BRACKET	539105151
12	NUT	539976977
13	THROTTLE WIRE	539102732
14	SCREW	539990563
15	PODLOŽKA	539990517
16	MATICE	539990546
17	REAR GUARD	539104329
18	PODLOŽKA	539990247
19	HEX SCREW 7/16-14 X 1 GR8	539105905
20	SKID PLATE	539105022
21	SPACER 52” & 61”	539104521
22	NIPPLE	539976998
23	SCREW	539976934
24	LINK 52” & 61”	539102619
25	NUT	539990184
26	ROD 52” & 61”	539104390
28	SCREW	539103433
29	LEVER	539104388
30	BUSHING	539103427
31	PLATE	539102236
32	SCREW	539990655
33	PROTECTOR	539105716
34	SPRING	539103256
35	SCREW	539990730
36	PULLEY	539976688
37	BUSHING	539976695
38	SCREW	539102717
39	PULLEY	539101176
40	BELT	539104334
41	KEY	539101177
42	CLIP	539104763
43	PODLOŽKA	539990692
44	PODLOŽKA	539990187
45	STRUT WELDMENT NOT SHOWN	539105577
46	PIN RETAINING SCREW NOT SHOWN	539105480
47	STRUT SPACER - 72" NOT SHOWN	539105484
48	SCREW	539990209
