Spare parts > Husqvarna > ZERO TURN: COMMERCIAL > ZTH 7227 KOA ZTH7227KOA, 968999202, 2006-04 > DRIVE
Back to

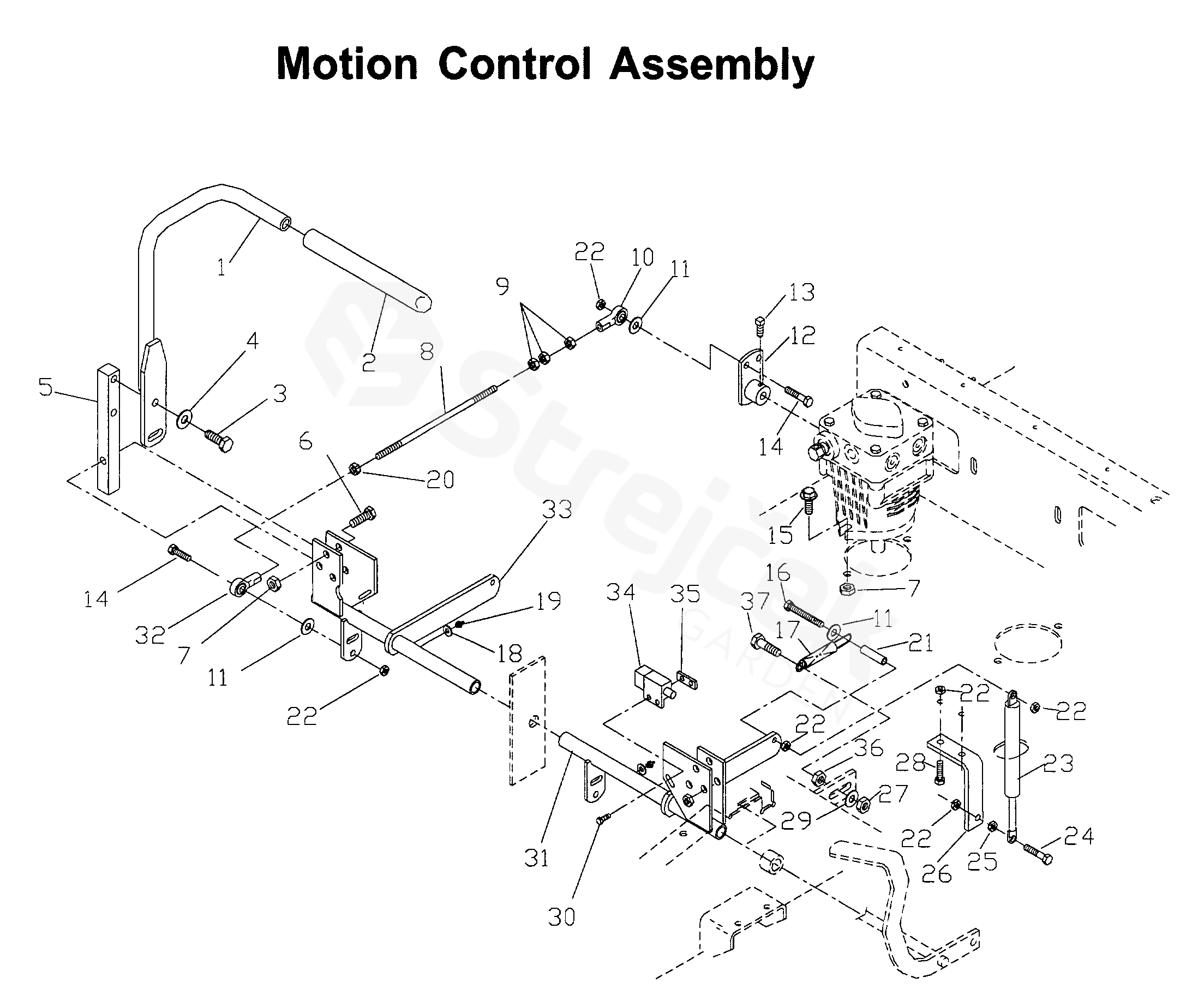

DRIVE
ZTH 7227 KOA ZTH7227KOA, 968999202, 2006-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ZTH7227KOA, 968999202, 2006-04
1 LEVER 539104190
2 GRIP 539102592
3 SCREW 539990563
4 PODLOŽKA 539102593
5 LEVER 539102809
6 SCREW 539990655
7 MATICE 539990546
8 LINK 539105279
9 NUT 539990223
10 BALL JOINT 539102590
11 PODLOŽKA 539990692
12 LEVER 539104382
13 SCREW 539105079
14 SCREW 539990209
15 SCREW 539990582
16 BOLT 539991055
17 SPRING 539103297
18 WASHER 539103547
19 NIPPLE 539976998
20 NUT 539991073
21 SPACER 539104995
22 NUT 539990184
23 GAS SPRING 539102720
24 SCREW 539990627
25 LOCK NUT 539990585
26 BRACKET 539105023
27 END BRACKET 539976979
28 SCREW 539976934
29 PODLOŽKA 539990517
30 SCREW 539976952
31 CONTROL 539104363
32 BALL JOINT 539102591
33 CONTROL 539104364
34 SWITCH 539101080
35 PLATE 539102678
36 NUT 539990613
37 SCREW 539990588
38 CLAMP 539102685
