Spare parts > Husqvarna > ZERO TURN: COMMERCIAL > IZ 5223 T KOHLER IZ 5223 T KOA, 968999258, 2005-08 > MAINFRAME, LEFT SIDE
Back to

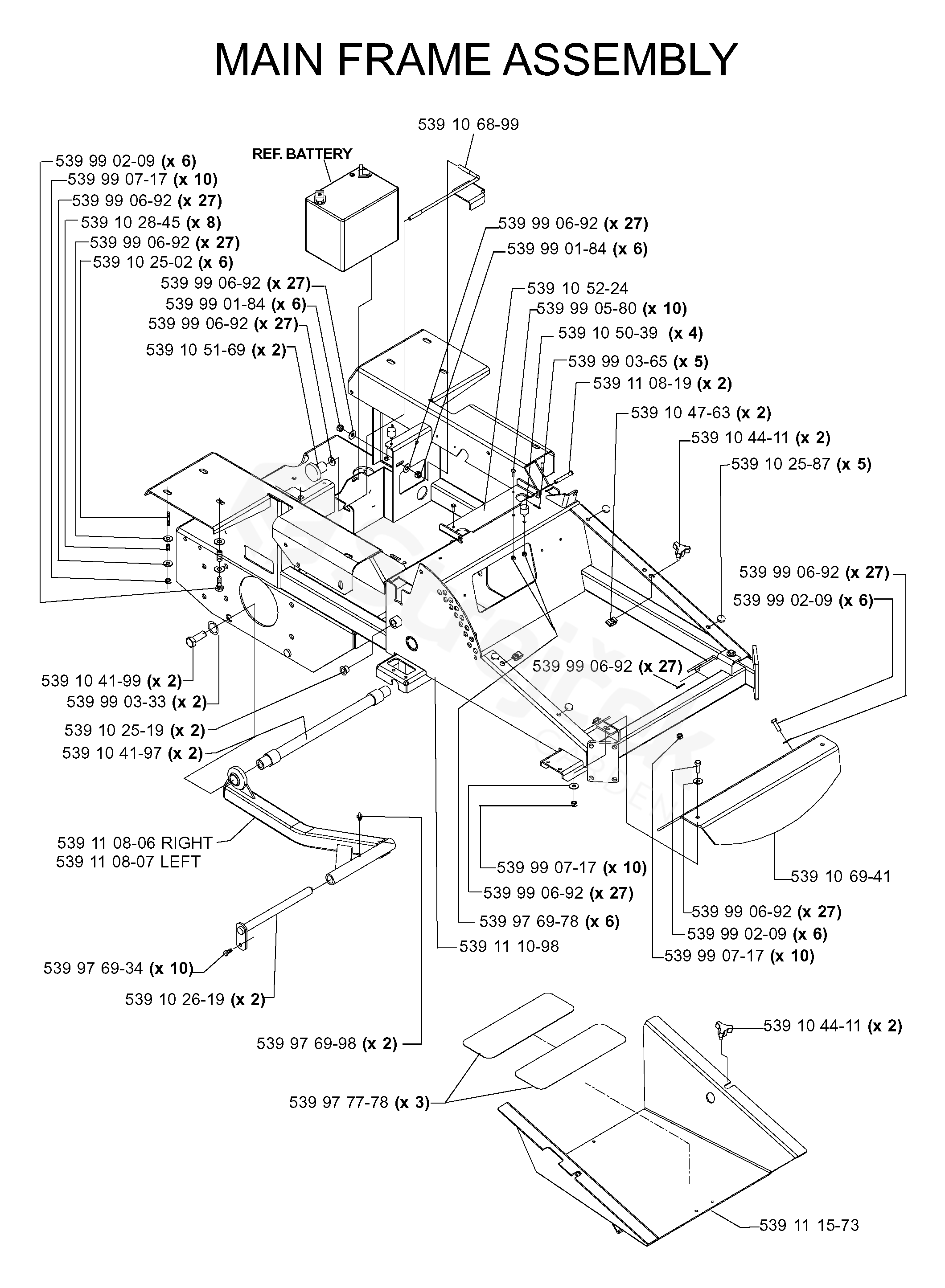

MAINFRAME, LEFT SIDE
IZ 5223 T KOHLER IZ 5223 T KOA, 968999258, 2005-08
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For IZ 5223 T KOA, 968999258, 2005-08
539102502 STUD 539102502
539102519 BUSHING 539102519
539102587 ABSORBER 539102587
539102619 LINK 539102619
539102845 SPRING 539102845
539104197 PIPE, STRUT MOUNT 539104197
539104199 SCREW 539104199
539104411 KNOB 539104411
539104763 CLIP 539104763
539105039 HUB CAP 539105039
539105169 KNOB 539105169
539105224 BRACKET 539105224
539106899 HOLDER 539106899
539106941 FOOT REST 539106941
539110806 STRUT, RT
RIGHT 		539110806
539110807 STRUT, LT
LEFT 		539110807
539110819 CLEVIS PIN 539110819
539111098 DECAL 539111098
539111573 DECAL 539111573
539976934 SCREW 539976934
539976978 MATICE 539976978
539976998 NIPPLE 539976998
539977778 MAT 539977778
539990184 NUT 539990184
539990209 SCREW 539990209
539990333 PODLOŽKA 539990333
539990365 PIN RETAINING SCREW 539990365
539990580 SCREW 539990580
539990692 PODLOŽKA 539990692
539990717 MATICE 539990717
