Spare parts > Husqvarna > ZERO TURN: COMMERCIAL > EZ 24T EZ 24T CE, 966659701, 2010-12 > BRAKE / REAR MOWER LIFT
Back to

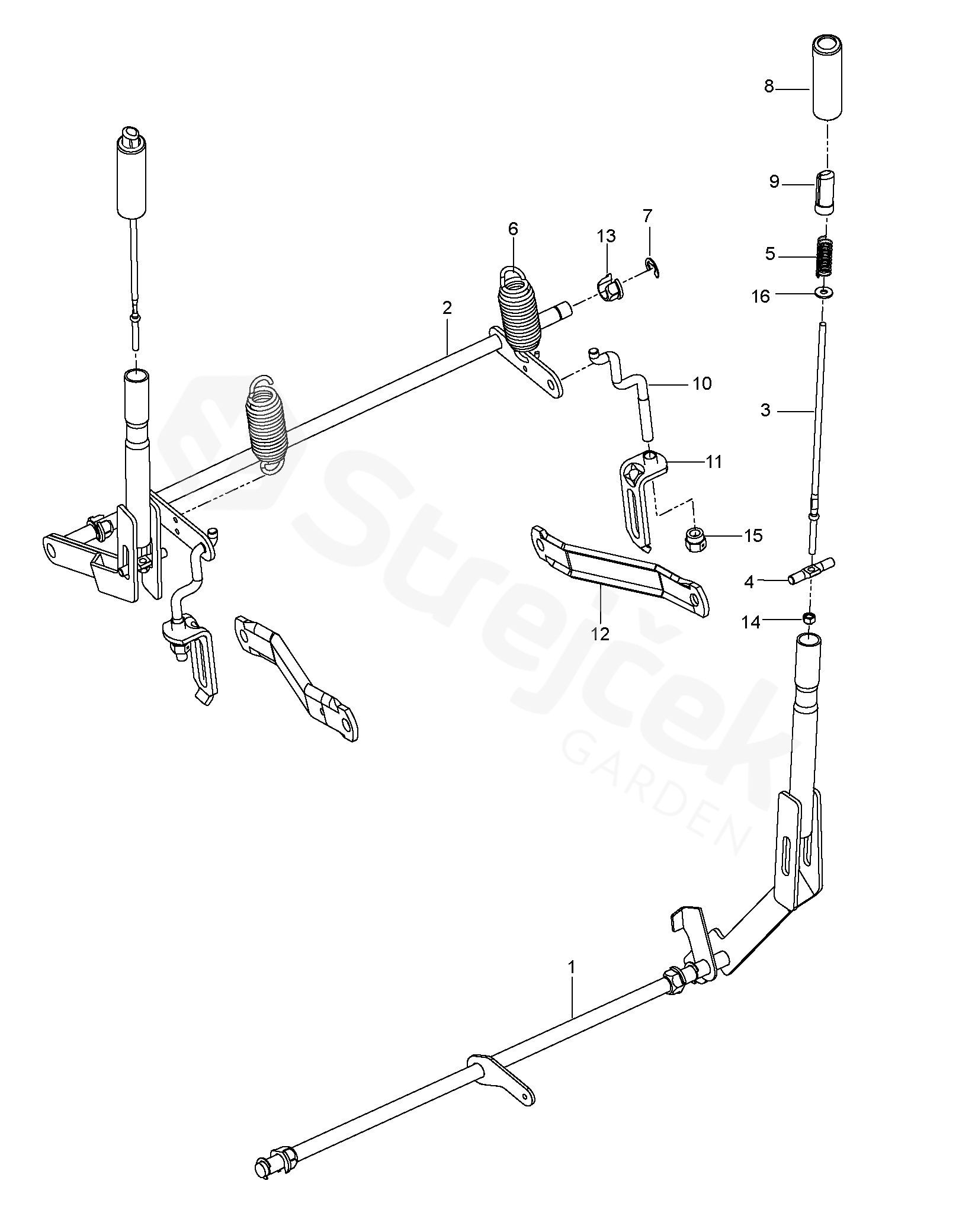

BRAKE / REAR MOWER LIFT
EZ 24T EZ 24T CE, 966659701, 2010-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For EZ 24T CE, 966659701, 2010-12
1 BRAKE LEVER ASSY 580435801
2 LEVER 586760202
3 ROD 510422901
4 ROD 580960401
5 SPRING 510030701
6 SPRING
QTY MAY VARY BY MODEL 		539118762
7 RETAINING RING 812000002
8 GRIP 510207201
9 BUTTON 510207301
10 LINK 525847201
11 ASSEMBLY 522858601
12 ARM 532195185
13 BUSHING 510184901
14 MATICE 873800400
15 NUT 532175994
16 WASHER 819091216
