Husqvarna
>
ZERO TURN: COMMERCIAL
>
EZ 24T EZ 24T CE, 966659701, 2010-12
>

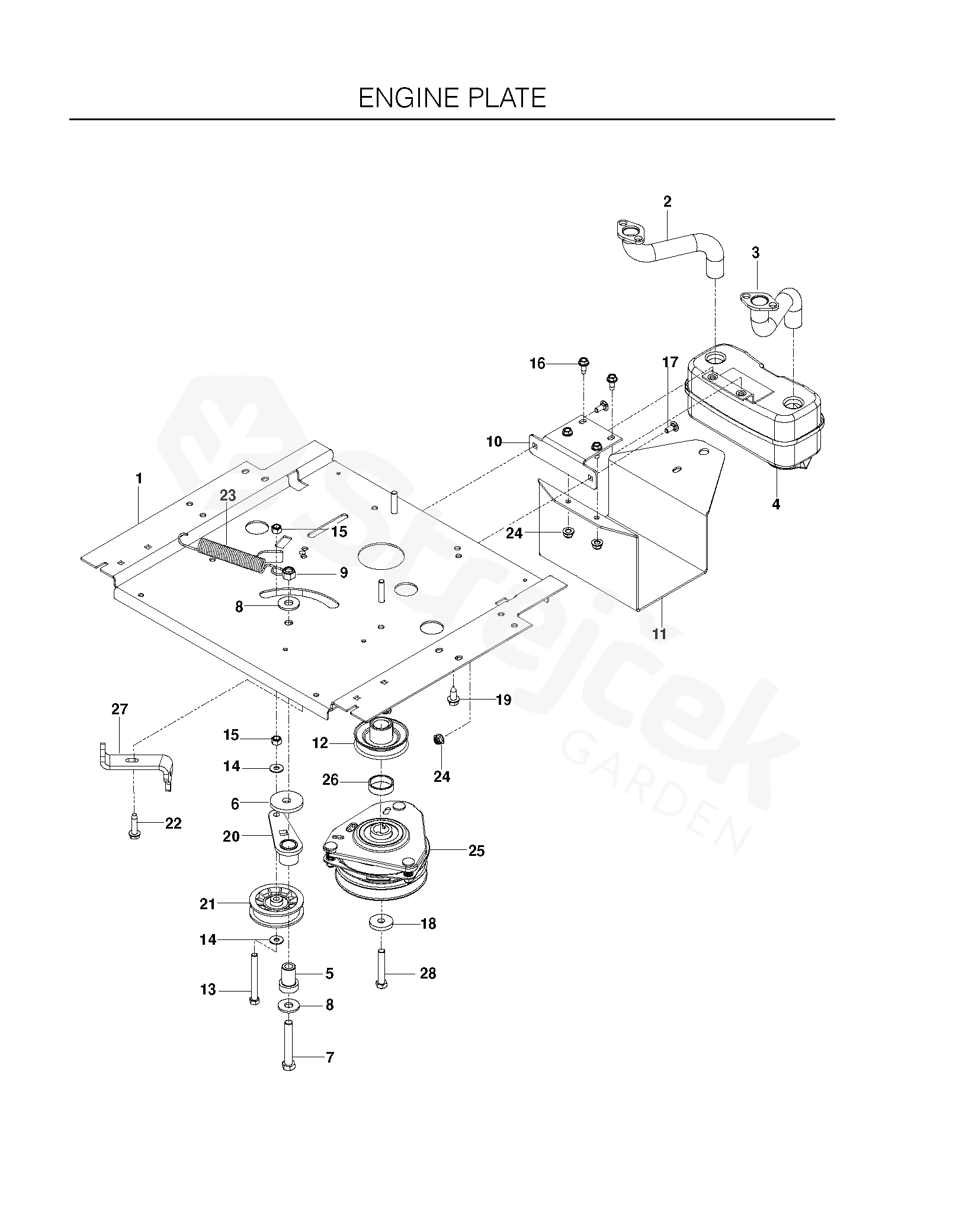

ENGINE PLATE
Back to
EZ 24T
EZ 24T CE, 966659701, 2010-12
ENGINE PLATE
EZ 24T
EZ 24T CE, 966659701, 2010-12
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
EZ 24T CE, 966659701, 2010-12
1
PLATE
574734402
2
TUBE
532159955
3
TUBE
532160589
4
MUFFLER ASM TWIN
539131604
5
SPINDLE
539101231
6
HEAVY WASHER
539112670
7
SCREW
539103433
8
GUARD
539109554
9
NUT
539101331
10
BRACKET MUFFLER
510260402
11
GUARD
510260502
12
PULLEY
539114530
13
BOLT
539109389
14
PODLOŽKA
539990692
15
END BRACKET
539976979
16
BOLT
539107475
17
BOLT
539990316
18
CLUTCH, WASHER
539110064
19
HHFS 3/8-16 X 1.0 THD FORMING
532120616
20
IDLER ARM
539112092
21
PULLEY, IDLER
539110311
22
BOLT
539110025
23
SPRING
532196105
24
BOLT RETAINER 3/8
539112899
25
CLUTCH
532400008
26
SPACER
577094601
27
STOP
522459710
28
HCS
576968001
PIGTAIL.MATNLK.OLD.HARN NOT SHOWN
NOT SHOWN
532198316
