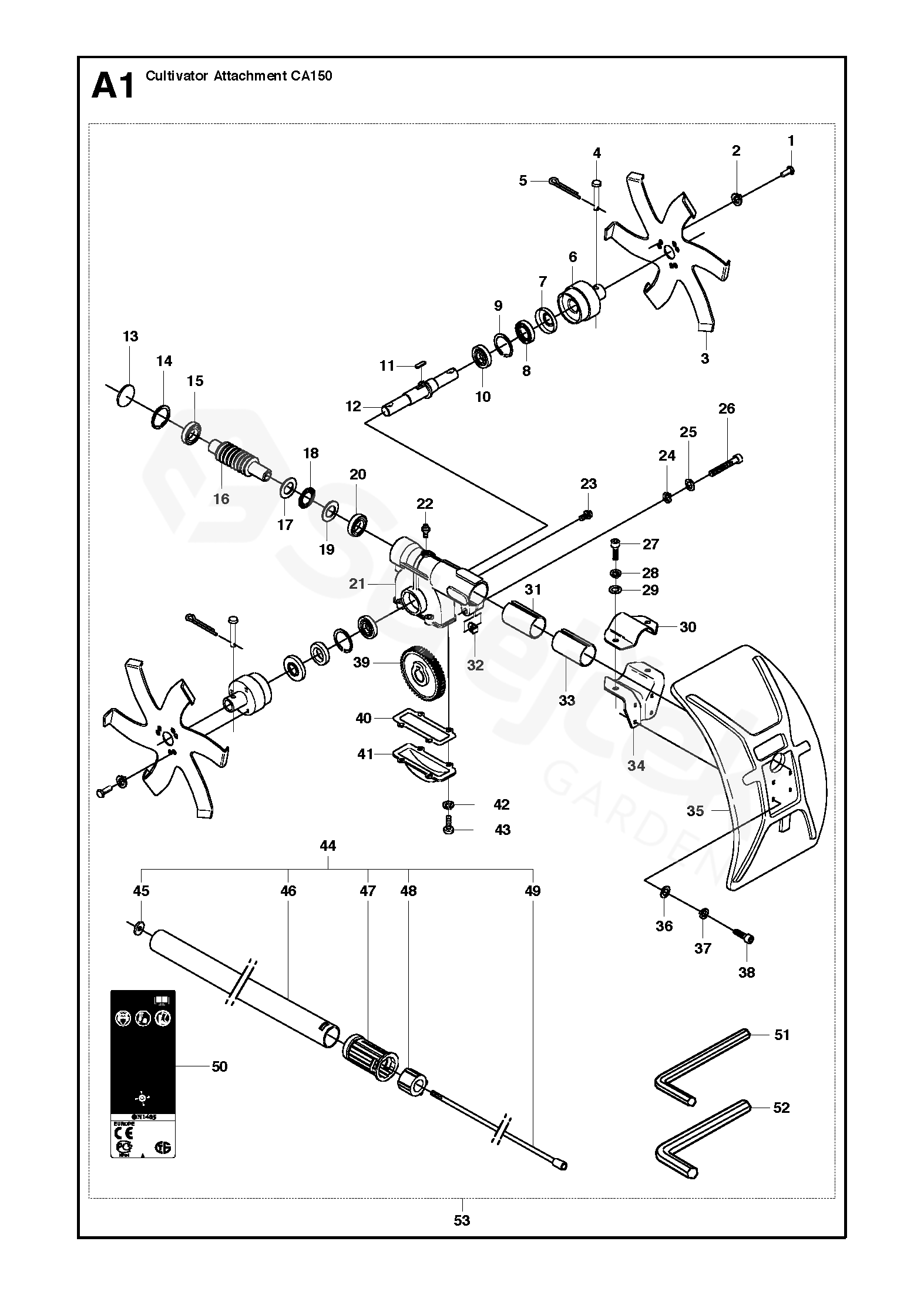

CULTIVATOR ATTACHMENT CULTIVATOR ATTACHMENT, CA150, 2009-09

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For CULTIVATOR ATTACHMENT, CA150, 2009-09

1	SCREW EHHM	725236871
2	PODLOŽKA	735115301
3	TINE	531007968
4	LOCKING PIN	531007967
5	SPLIT PIN	721615401
6	HUB	531007966
7	COVER	531007961
8	SEALING RING	531007960
9	CIRCLIP	735312810
10	BALL BEARING	531007959
11	KEY	531007953
12	SHAFT	531007952
13	COVER	531007958
14	CIRCLIP	735312810
15	BALL BEARING	738210102
16	SCREW	531007950
17	WASHER	531007957
18	BEARING	531007956
19	WASHER	531007955
20	BALL BEARING	531007954
21	GEAR HOUSING	531007974
22	LUBRICATION NIPPLE	738881001
23	SCREW IHSCM	725532501
24	PODLOŽKA	735115301
25	WASHER	734115171
26	SCREW IHSCM	725537401
27	SCREW IHSCM	725537001
28	PODLOŽKA	735115301
29	WASHER	734115171
30	PLATE	531007971
31	SLEEVE	531007964
32	SPACER WASHER	531007965
33	SLEEVE	531007973
34	PLATE	531007972
35	PROTECTOR	531007970
36	WASHER	734114671
37	SPRING WASHER	735114601
38	HOSE CLAMP	725532901
39	WORM WHEEL	531007951
40	GASKET	531007962
41	COVER	531007963
42	PODLOŽKA	735115301
43	SCREW CRPANM	724132501
44	TUBE	537246401
45	LOCKWASHER	735580810
46	TRUBKA	537082701
47	BEARING CAGE	503985401
48	SUPPORTING BEARING	503785201
49	DRIVE SHAFT	537011901
50	DECAL	537425701
51	KLÍČ 4 mm	503558601
52	KLÍČ 5 mm	503558602
53	ATTACHMENT	537425402
