Spare parts > Jonsered > FRONTRIDERS > FR2216 MA 4x4 FR2216 MA, 4X4, 965190401, 2009-04 > MOWER LIFT / DECK LIFT
Back to

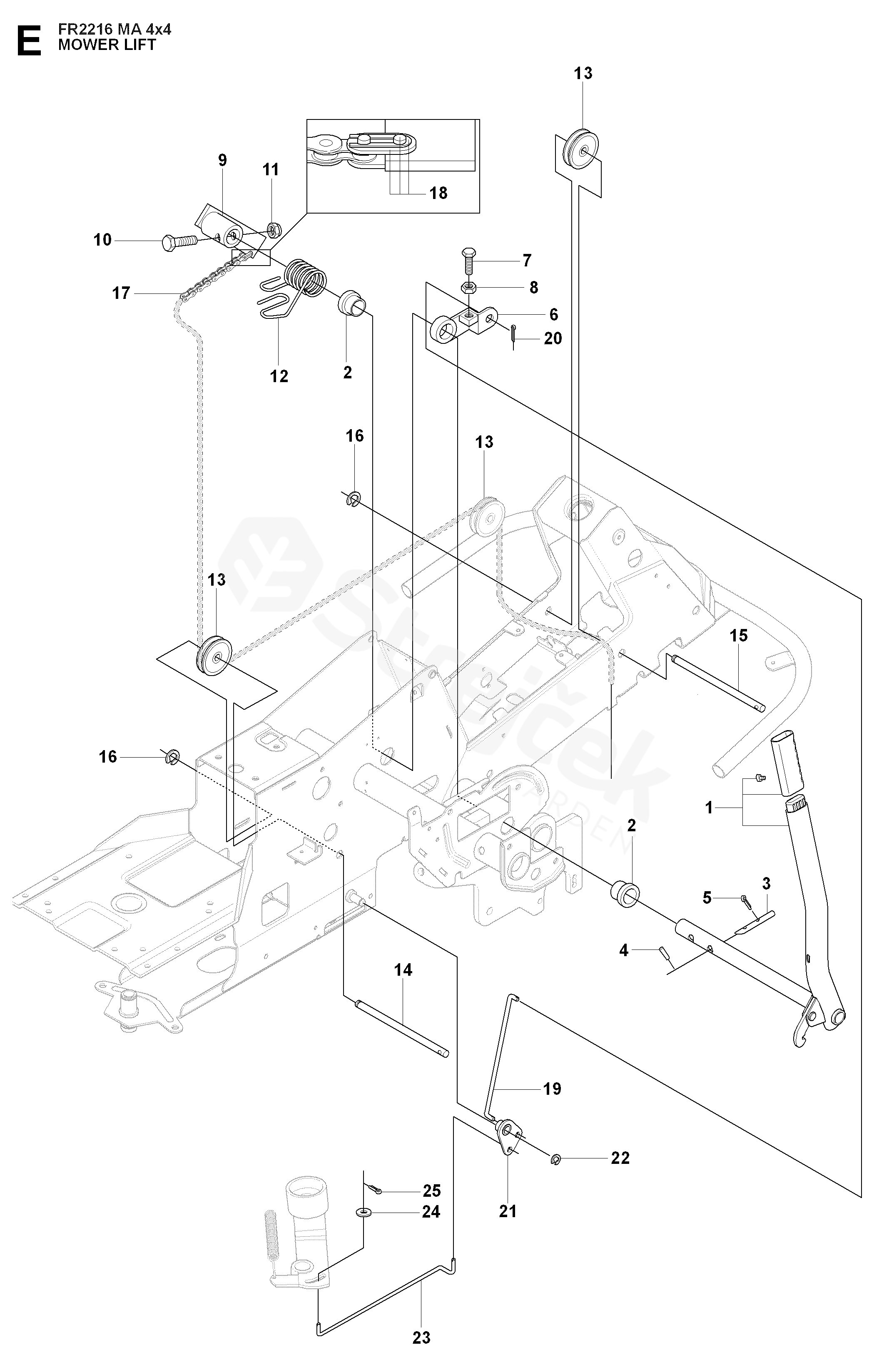

MOWER LIFT / DECK LIFT
FR2216 MA 4x4 FR2216 MA, 4X4, 965190401, 2009-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FR2216 MA, 4X4, 965190401, 2009-04
1 LIFTING LEVER ASSY 501018602
2 BEARING 506556501
3 PEN 506905301
4 GROOVED PIN 721125930
5 SPLIT PIN 721618301
6 LINK ASSY 506784301
7 SCREW 725249751
8 HEXAGON NUT 731232051
9 LIFTING ARM 544433601
10 SCREW EHHM 725254251
11 HEXAGON LOCKING NUT 732252201
12 SPRING 506916801
13 OFFSET PULLEY 506905601
14 SHAFT 506905701
15 SHAFT 506905702
16 E-CLIP 735311820
17 CHAIN 506554609
18 LINKAGE 506554701
19 CONNECTION ROD 544456901
20 SPLIT PIN 721618301
21 LINK 544378601
22 E-CLIP 735311420
23 CONNECTION ROD 544448801
24 PODLOŽKA 734116441
25 SPLIT PIN 721618301
