Spare parts > Jonsered > CHAIN SAWS > CS2188 CS2188 from 2016-10 - > CHAIN BRAKE
Back to

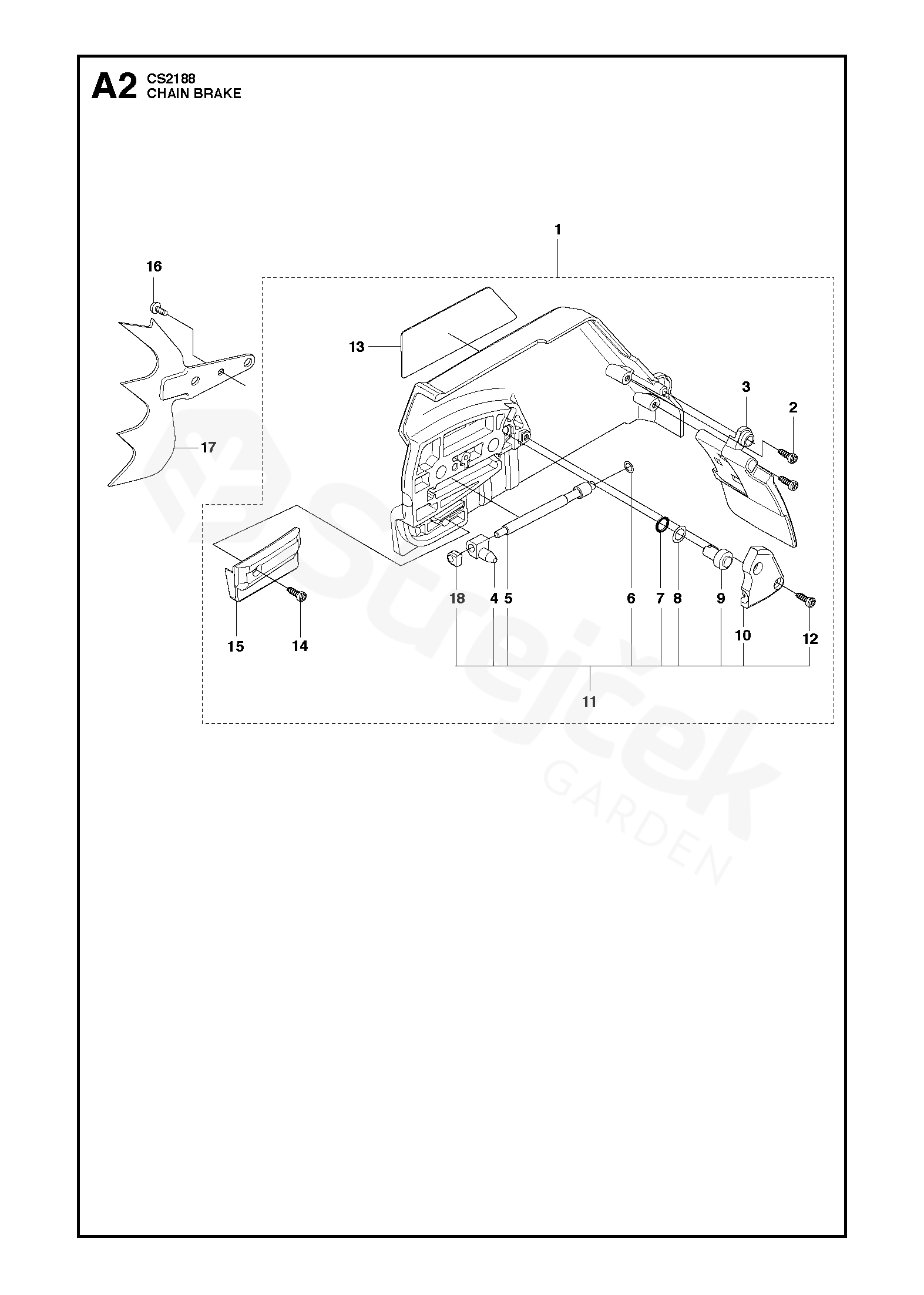

CHAIN BRAKE
CS2188 CS2188 from 2016-10 -
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CS2188 from 2016-10 -
1 CLUTCH COVER ASSY
WA 		537331002
2 SCREW CCRPANT 503212810
3 CHIP GUARD 537174101
4 PAWL 503998301
5 ŠROUBOVÁK NA ČERVÍKY 537079502
6 PODLOŽKA 503230066
7 O-KROUŽEK 740480702
8 PODLOŽKA 503230063
9 ŠNEKOVÉ KOLEČKO 537079402
10 COVER 537016801
11 CHAIN TENSIONER 537044102
12 SCREW CCRPANT 503212810
13 LABEL 537033802
14 SCREW CCRPANT 503212810
15 CHAIN GUIDE 537043401
16 SCREW CCRPANT 503212810
17 SPIKE
WA 		503922701
18 BEARING SLEEVE 537017401
