Spare parts > Jonsered > CHAIN SAWS > 630 630, SUPER II, 1993-06 > CRANKCASE
Back to

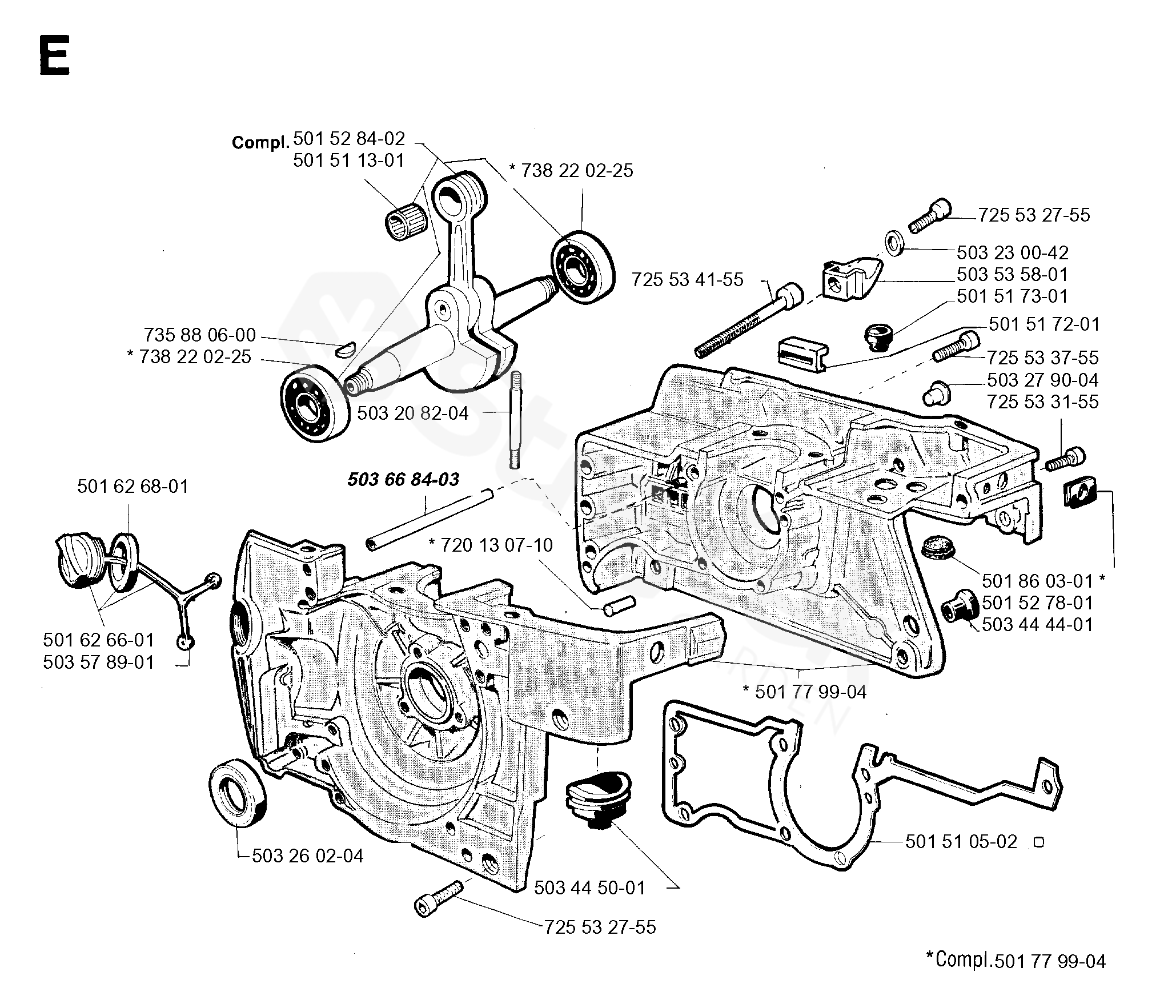

CRANKCASE
630 630, SUPER II, 1993-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 630, SUPER II, 1993-06
501510502 GASKET 501510502
501511301 NEEDLE HOLDER 501511301
501517201 CHAIN GUIDE 501517201
501517301 MEMBRANLUFTNING 501517301
501527801 GROMMET 501527801
501528402 CRANKSHAFT 501528402
501626601 TANK 501626601
501626801 GASKET 501626801
501779904 CRANKCASE ASSY 501779904
501860301 BUFFER 501860301
503208204 SCREW PIN 503208204
503230042 PODLOŽKA 503230042
503260204 SEALING RING 503260204
503279004 PLUG 503279004
503444401 BUSHING 503444401
503445001 BELLOWS 503445001
503535801 CHAIN CATCHER 503535801
503578901 HOLDER 503578901
503668403 TANK VENT ASSY 503668403
720130710 PARALELNÍ KLÍN 720130710
725532755 SCREW IHSCM 725532755
725533155 SCREW IHSCM 725533155
725533755 SCREW IHSCM 725533755
725534155 SCREW IHSCM 725534155
735880600 WOODRUFF KEY 735880600
738220225 BALL BEARING 738220225
