Spare parts > Jonsered > LAWN MOWERS: CONSUMER WALK-BEHINDS > 500 RSV 500 RSV, 964465647, 1998-05 > FRAME
Back to

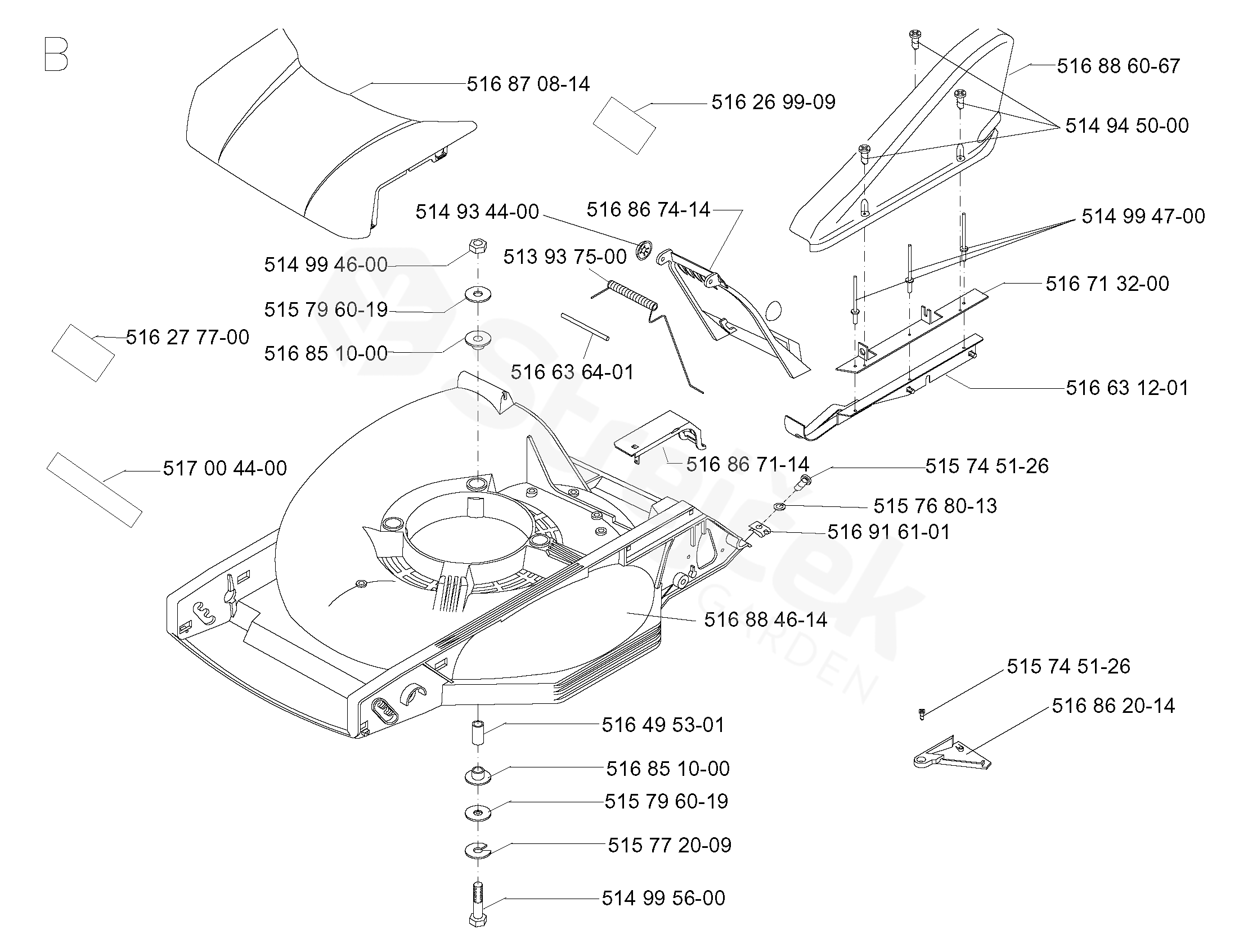

FRAME
500 RSV 500 RSV, 964465647, 1998-05
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 500 RSV, 964465647, 1998-05
513937500 SPRING 513937500
514934400 WASHER 514934400
514945000 SCREW 514945000
514994600 NUT 514994600
514994700 RIVET 514994700
514995600 BOLT 514995600
515745126 SCREW 515745126
515768013 UNDERLAGSSKIVE 515768013
515772009 WASHER 515772009
515796019 WASHER 515796019
516269909 DECAL 516269909
516277700 DECAL 516277700
516495301 SPACER 516495301
516631201 PLATE 516631201
516636401 HOLDER 516636401
516713200 BRACKET 516713200
516851000 WASHER 516851000
516862014 PLATE 516862014
516867114 PROTECTOR 516867114
516867414 COVER 516867414
516870814 COVER 516870814
516884614 HOUSING 516884614
516886067 COVER 516886067
516916101 LOCK PLATE 516916101
517004400 DECAL 517004400
