Jonsered
>
SNOW BLOWERS/THROWERS
>
ST 2109 E ST 2109 E, 96191002100, 961910021, 2007-10
>
HANDLE
Back to
ST 2109 E
ST 2109 E, 96191002100, 961910021, 2007-10

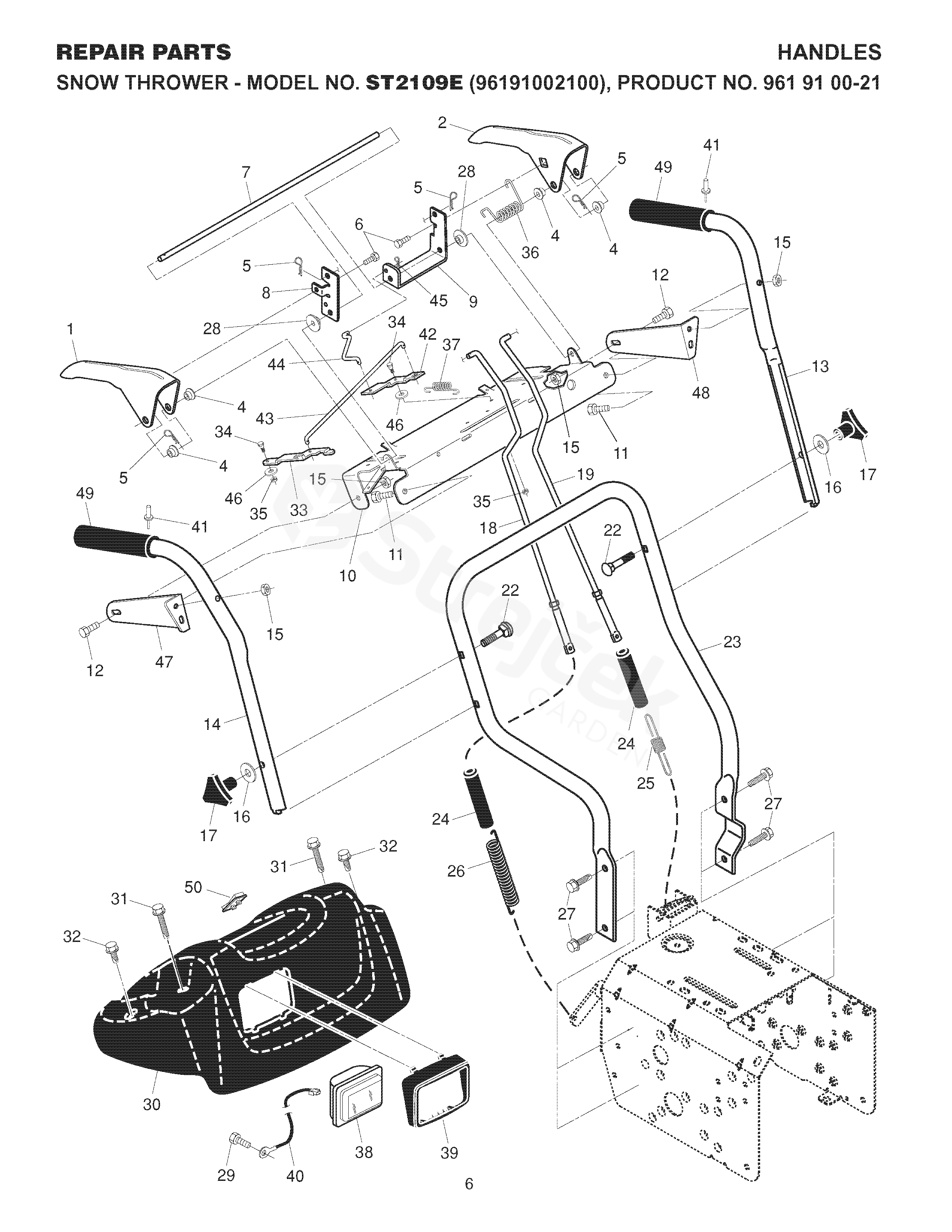

HANDLE
ST 2109 E
ST 2109 E, 96191002100, 961910021, 2007-10
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
ST 2109 E, 96191002100, 961910021, 2007-10
1
LEVER
532407649
2
LEVER
532407648
4
BUSHING
532178888
5
PIN RETAINING SCREW
532169675
6
SCREW
817060408
7
ROD
532178652
8
ARM
532415235
9
ARM
532199575
10
PANEL
532199531
11
BOLT
874780524
12
SCREW
874780512
13
HANDLE
532415236
14
HANDLE
532415237
15
BOLT
532751153
16
PODLOŽKA
819131316
17
KNOB
532178899
18
ROD
532180480
19
ROD
532180481
22
BOLT
872120618
23
HANDLE
532184087
24
SLEEVE, SPRING
532180447
25
SPRING
532180926
26
SPRING
532178669
27
SCREW
817000616
28
SPACER
532412680
29
SCREW
532408059
30
CONSOLE
532405879
31
PAN HEAD TAPPING SCREW
532175262
32
SCREW
532184471
33
LATCH
532199577
34
BOLT
532401369
35
NUT
532068038
36
SPRING
532178831
37
PRUŽINA
532193885
38
HEADLIGHT, HALOGEN
532178666
39
FRAME
532178668
40
HARNESS
532405699
41
POP RIVET
532178775
42
LEVER
532199578
43
ROD
532199638
44
ROD
532196338
45
CLIP
532700279
46
WASHER
532057079
47
MOUNTING BRACKET, HANDLE, RH
532196943
48
MOUNTING BRACKET, HANDLE, RH
532196944
49
GRIP
532414515
50
SWITCH, HEATED HANDLE GRIPS
532405781
BULB
532401620
