Spare parts > Husqvarna > BRUSHCUTTERS/CLEARING SAWS > 525 RS 525 RS for China, 967622801, 2015-09 > ÚHLOVÁ PŘEVODOVKA
Back to

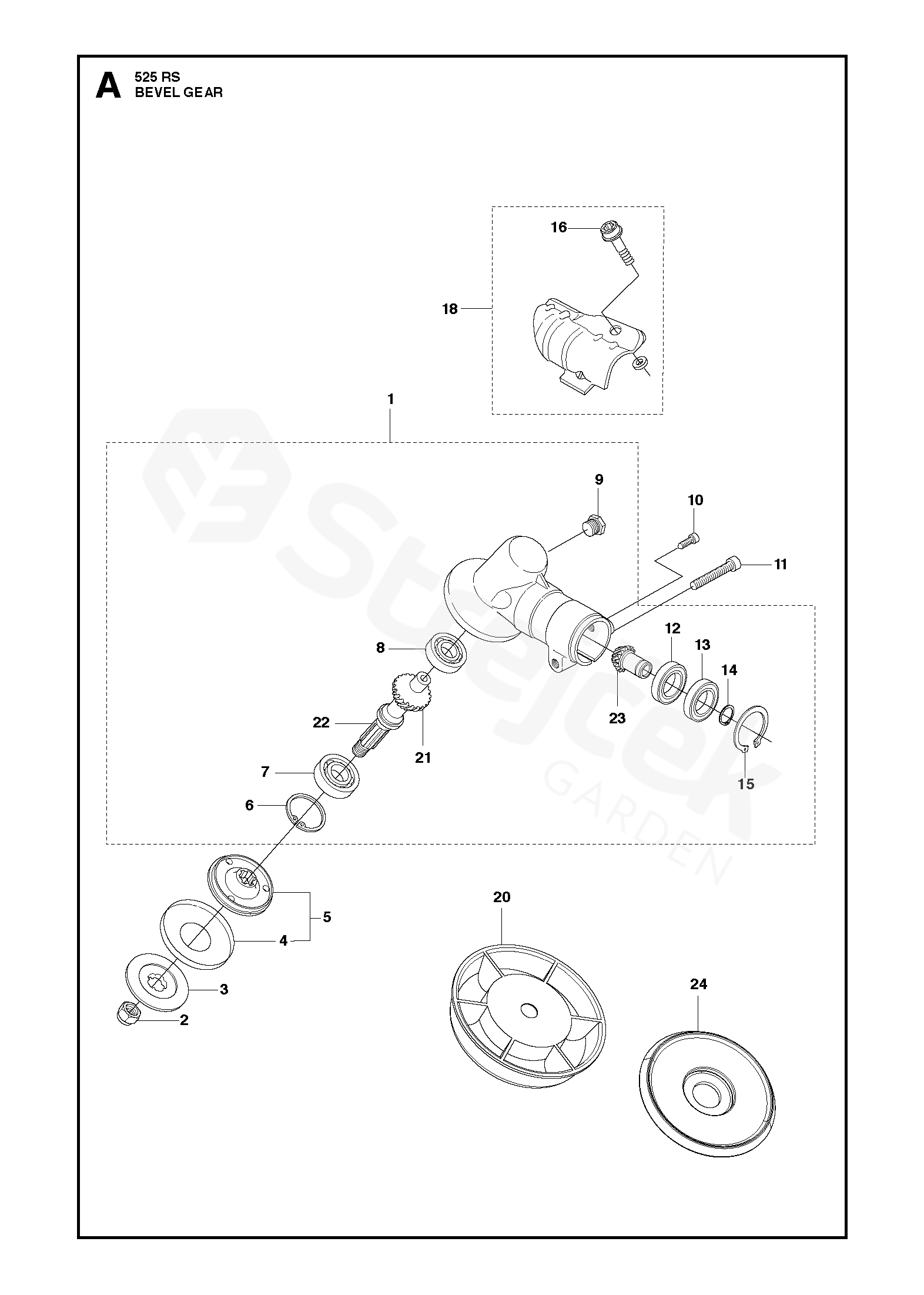

ÚHLOVÁ PŘEVODOVKA
525 RS 525 RS for China, 967622801, 2015-09
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 525 RS for China, 967622801, 2015-09
1 BEVEL GEAR 537333801
2 MATICE 503856301
3 OPĚRANÁ PŘÍRUBA 537285601
4 CUP 537292601
5 DRIVER ASSY 537234901
6 CIRCLIP 735312810
7 BALL BEARING 503252401
8 BALL BEARING 738219800
9 SCREW IHHM 503201502
10 BOLT 574710801
11 SCREW ITXSCFM 525755104
12 BALL BEARING 738219900
13 BALL BEARING 738219902
14 CIRCLIP 735311100
15 CIRCLIP 735312510
16 BOLT 523019001
18 SVORKA 581027502
20 OPĚRNA MISKA 503890101
21 PŘEVODOVÉ KOLO 537333501
22 HŘÍDEL NOŽE 537333601
23 PASTOREK 537333901
24 ROZPĚRKA 581595001
