Spare parts
Everything for your machines
Spare parts
>
McCULLOCH
>
SNOW BLOWERS/THROWERS
>
MC624ES MC624ES, 96192004000, 2010-07
>
ENGINE
Back to
MC624ES
MC624ES, 96192004000, 2010-07
ENGINE
MC624ES
MC624ES, 96192004000, 2010-07

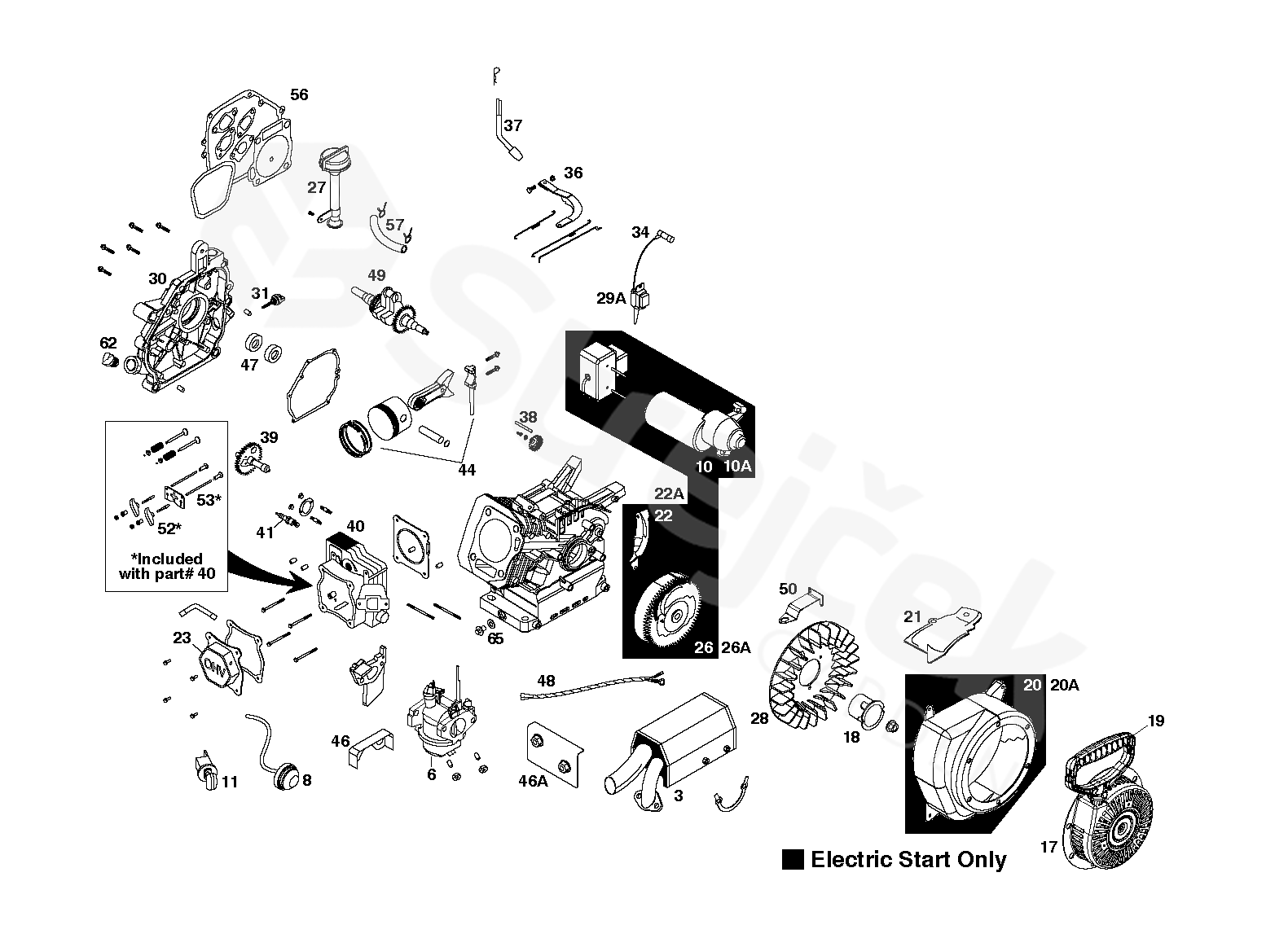

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
MC624ES, 96192004000, 2010-07
3
MUFFLER ASSY
532444277
6
CARBURETTOR "INCLUDES BRACKET, SPACER, AND NUTS"
"INCLUDES BRACKET, SPACER, AND NUTS"
585020402
8
BULB
532437123
10
STARTER ASSY
532437124
11
KEY START ASSY
532424954
17
RECOIL
HEX STYLE - BLACK & INCLUDES SCREWS
532436967
18
CUP
532436968
19
SNOW STARTER CHIP
532424968
20
BLOW.HSG ASSY ELEC
ELECTRIC BLACK & INCLUDES SCREWS
532424971
21
SHIELD
532437119
22
SHLD ELEC START FLYWHEEL
532424975
23
VALVE COVER SERVICE KIT
INCLUDES SCREWS
532420580
26
FLYWHEEL ASSY
532429235
27
TRUBKA
532444091
28
FLYWHEEL
532420586
30
CRANKCASE
INCLUDES SCREWS
532420606
31
DIPSTICK
532420961
34
BOOT
532436966
36
GOVERNOR ARM SERVICE KIT
532420601
37
GOVERNOR
532420602
38
GEAR
532429646
39
CAMSHAFT
532420584
40
CYLINDER HEAD
INCLUDES SCREWS
532420578
41
SPARK PLUG
532424939
44
PÍST KOMPL.
532420582
46
VAPOR SHIELD
532429260
47
SEAL KIT
532429599
48
HARNESS
532444276
49
CRANKSHAFT
532429600
50
SPEED CONTROL BRACKET
532429259
52
ROCKER ARM KIT
532429691
53
PUSH ROD SERVICE KIT
532420579
56
GASKET KIT
532429601
57
HOSE KIT
532438014
62
OIL PLUG
532435495
65
OIL PLUG
532435495
10A
STARTER
532437125
20A
BLOWER HOUSING, ELECTRIC,BLACK
ELECTRIC BLACK
532429230
22A
SHIELD. FLYWHEEL - MANUAL START
MANUAL START
532429596
26A
FLYWHEEL
532420585
29A
IGNITION COIL
532443934
46A
KRYT
532444275
