Spare parts
Everything for your machines
Spare parts
>
McCULLOCH
>
TRACTORS/RIDE MOWERS
>
M17538H M17538H, 96041023201, 2012-06
>

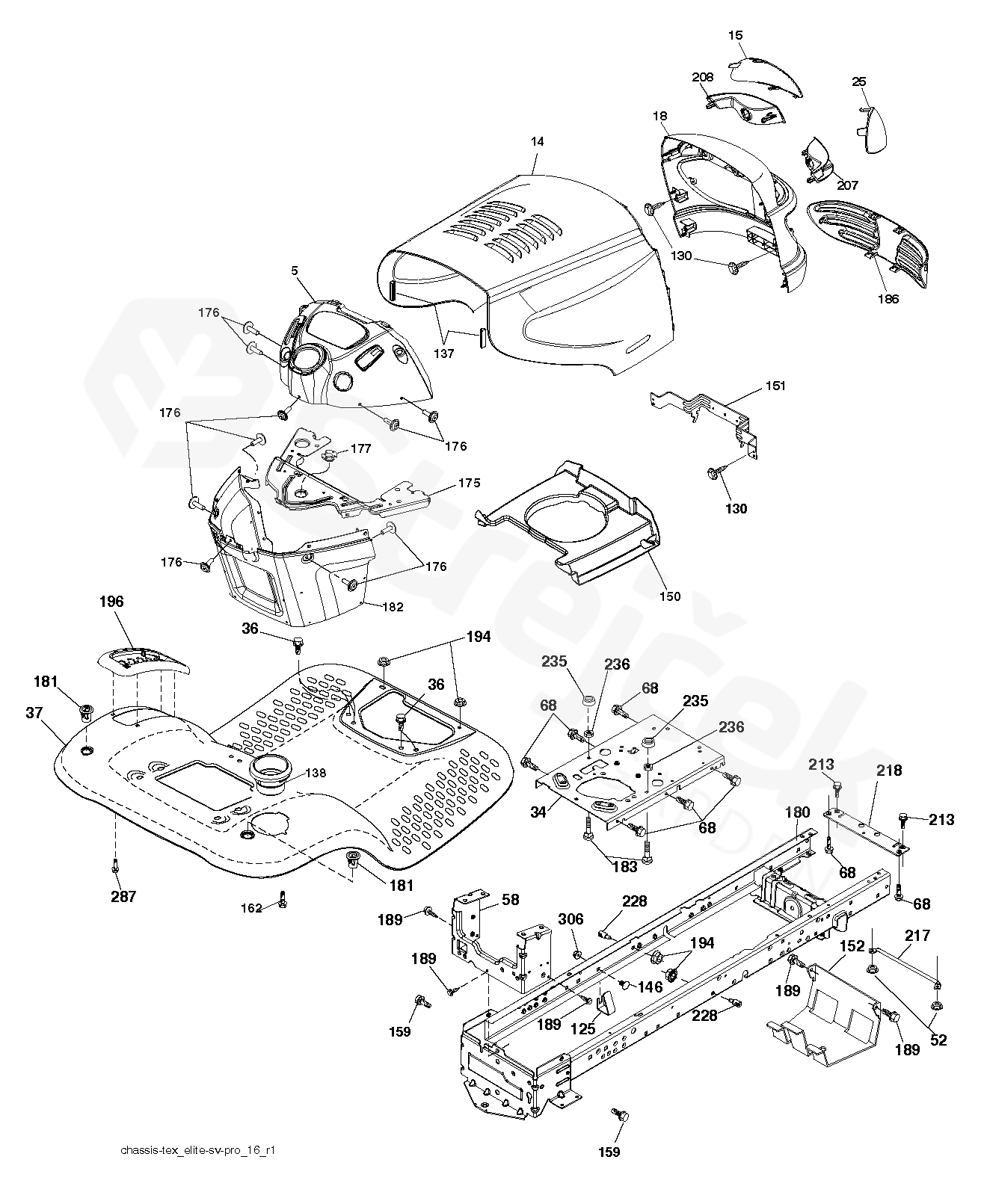

CHASSIS & ENCLOSURES
Back to
M17538H
M17538H, 96041023201, 2012-06
CHASSIS & ENCLOSURES
M17538H
M17538H, 96041023201, 2012-06
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M17538H, 96041023201, 2012-06
5
DASH
532411764
14
HOOD
532194588
15
LENS GRILLE LH
532189754
18
CALANDRE
532189748
25
LENS GRILLE RH
532189755
34
CHASSIS
580910801
36
SCREW
817060512
37
FENDER
532420796
52
MATICE
873680500
58
PLATE
532412280
68
SCR5/16-18X1/2 SELFTAP ZN SPEC
817490508
125
CLIP
581684801
130
SCREW
532416358
137
BUMPER
532184921
138
CONSOLE
532409730
146
BOLT
581857901
150
DUCT
532184322
151
BRACKET
532407807
152
SHIELD
532199535
159
SCREW
817000612
162
SCREW
532142432
175
PLATE
532193243
176
SCREW
532400776
177
BUSHING
532195228
180
FRAME
532415063
181
BUSHING
532404796
182
PANEL
532193057
183
BOLT
874520520
186
INSERT GRILLE
532189753
189
SCREW
817000512
194
MATICE
873900500
196
CONSOLE
532414581
207
SUPPORT DE PHARE DROIT
532183833
208
SUPPORT DE PHARE GAUCHE
532183832
213
BOLT
874760512
217
ROD
532409167
218
PLATE
532196395
228
ŠROUB
532195161
235
1/4-20X3/4 CARR BLT
532406129
236
MATICE
873930500
287
SCREW
817600406
306
MATICE
873900600
