McCULLOCH
>
TRACTORS/RIDE MOWERS
>
M19542H M19542H, 96041017900, 2010-03
>

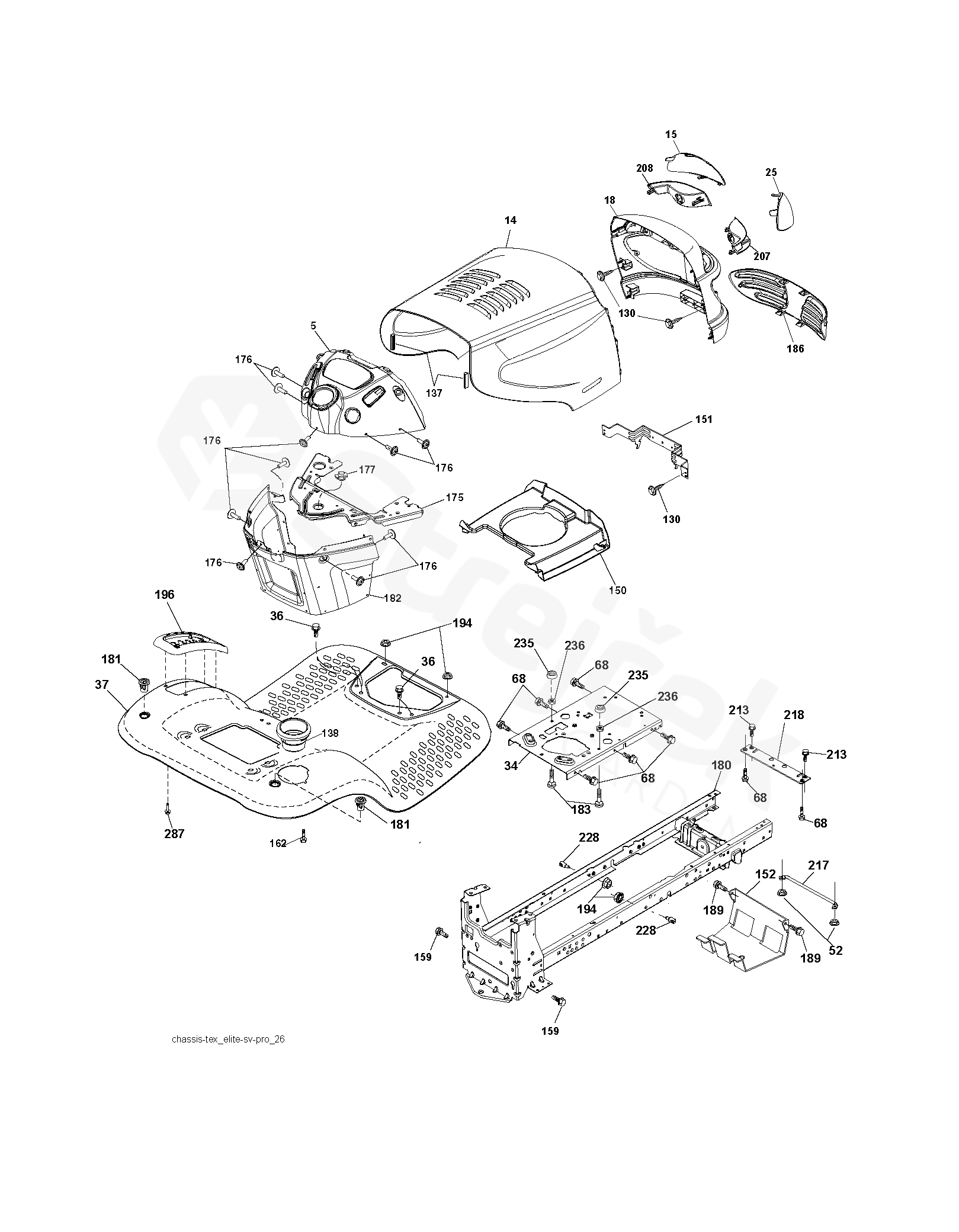

CHASSIS & ENCLOSURES
Back to
M19542H
M19542H, 96041017900, 2010-03
CHASSIS & ENCLOSURES
M19542H
M19542H, 96041017900, 2010-03
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M19542H, 96041017900, 2010-03
5
DASH
532411764
14
HOOD
532194588
15
LENS GRILLE LH
532189754
18
CALANDRE
532189748
25
LENS GRILLE RH
532189755
34
PLATE
532196125
36
SCREW
817060512
37
FENDER
532420986
52
MATICE
873680500
68
SCR5/16-18X1/2 SELFTAP ZN SPEC
817490508
130
SCREW
532416358
137
BUMPER
532184921
138
CONSOLE
532409730
150
DUCT
532184322
151
BRACKET
532407807
152
SHIELD
532199535
159
SCREW
817000612
162
SCREW
532142432
175
PLATE
532193243
176
SCREW
532400776
177
BUSHING
532195228
180
CHASSIS
532195457
181
BUSHING
532404796
182
PANEL
532193057
183
BOLT
874520520
186
INSERT GRILLE
532189753
189
SCREW
817000512
194
MATICE
873900500
196
CONSOLE
532414579
207
SUPPORT DE PHARE DROIT
532183833
208
SUPPORT DE PHARE GAUCHE
532183832
213
BOLT
874760512
217
ROD
532409167
218
PLATE
532196395
228
ŠROUB
532195161
235
1/4-20X3/4 CARR BLT
532406129
236
MATICE
873930500
287
SCREW
817600406
