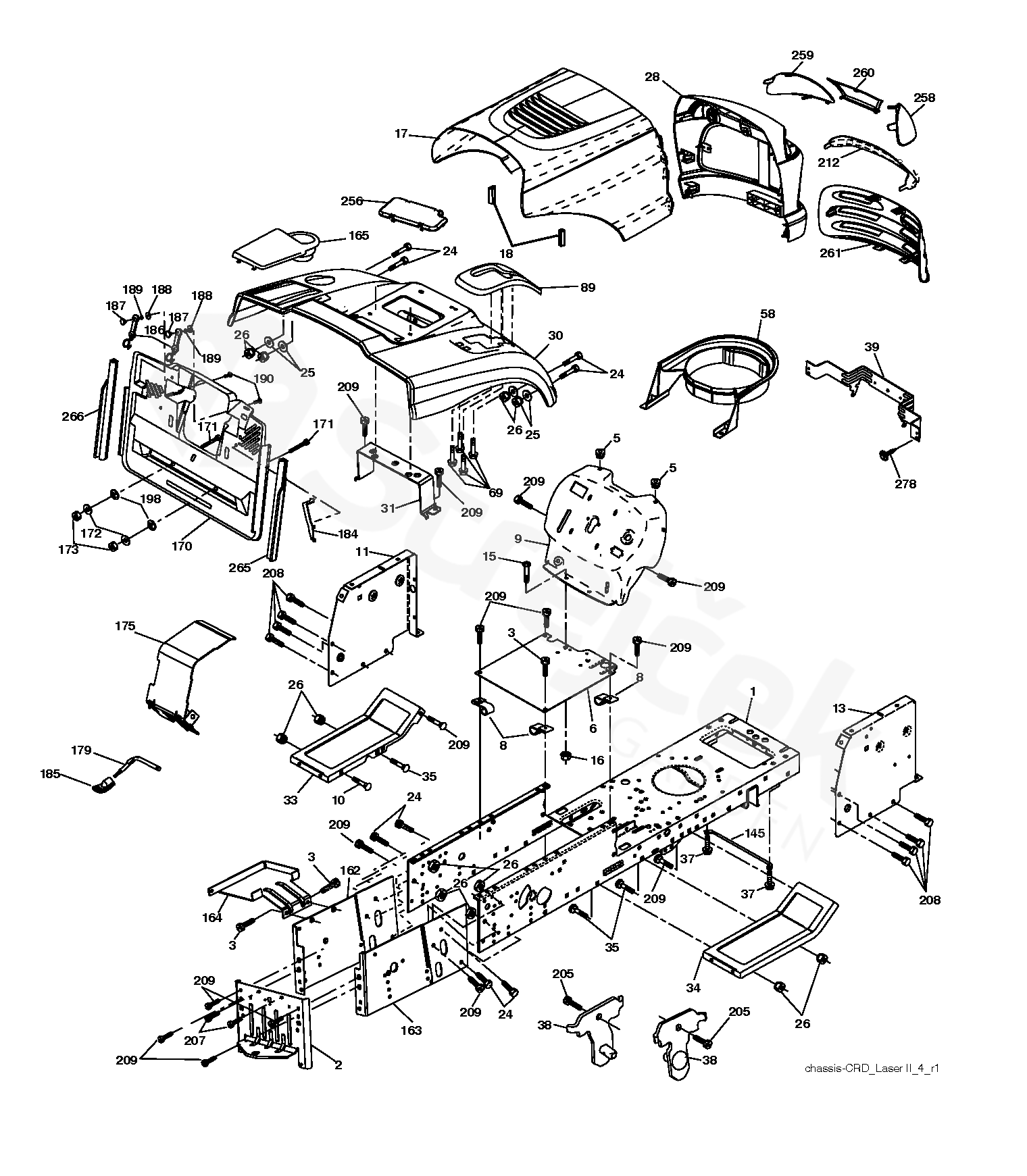

P200107HRB P200107HRB, 96061017802, 2010-07

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For P200107HRB, 96061017802, 2010-07

1	CHASSIS	532174620
2	DRAWBAR	532180384
3	SCREW	817060612
5	DAMPER	532155272
6	PLATE	532184419
8	CLIP	532126471
9	DASH	532194688
10	BOLT	872140608
11	DASHBOARD	532174996
13	DASHBOARD	532181719
15	SCREW	874180512
16	NUT	873510500
17	HOOD	532182716
18	BUMPER	532184921
24	BOLT	874780616
25	PODLOŽKA	819131312
26	NUT	873800600
28	FRONT COVER	532408300
30	FENDER	532197364
31	BRACKET	532165156
33	FOOT REST, LH	532182507
34	FOOT REST, RH	532182508
35	BOLT	872110606
37	SCR5/16-18X1/2 SELFTAP ZN SPEC	817490508
38	BRACKET	532181748
39	BRACKET	532407807
58	AIR DUCT	532184461
69	SCREW	532142432
89	BRACKET	532197366
145	ROD	532409167
162	BRACKET	532180382
163	BRACKET	532180383
164	SUPPORT	532165605
165	COVER	532181356
170	COVER	532199488
171	5/8-11 NUT TOP LOCK	872140620
172	WASHER	819132016
173	MATICE	873510600
175	DOOR TRAP	532188203
179	ROD PIVOT FBI	532188202
184	BRACKET	532174662
185	KNOB	532181101
186	LATCH	532160793
187	NUT	532125004
188	WASHER	819061216
189	WASHER	810071000
190	SCREW	871081010
198	PODLOŽKA	532168937
205	SCREW	817490608
207	SCREW	817670508
208	SCREW	817670608
209	SCREW	817000612
212	INSERT	532184248
256	COVER	532181361
258	LENS	532190507
259	LENS	532190508
260	COVER	532408382
261	COVER	532408395
265	SEALING	532185704
266	SEALING	532185703
278	SCREW	532416358
	PLUG	532005479
